Overview

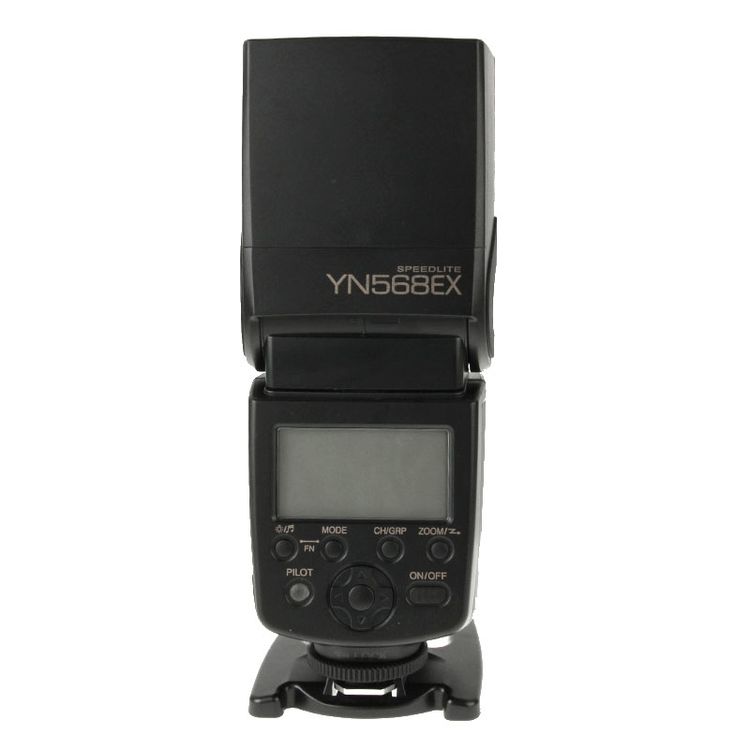

The YN-568EX is Yongnuo’s first TTL flash supporting high-speed sync (HSS). This means one can use it in TTL and manual mode with shutter speeds up to 1/8000s, all controlled by the camera’s external flash menu. One more outstanding feature is the compatibility to both the Canon and Nikon wireless flash system. It is possible to use the same flash as slave in Canon and Nikon environments with full support of TTL and high-speed sync. Because the hot shoe is different from Nikon and Canon(YN568EX II is for Canon), the Canon version only can be used on top of Canon cameras with TTL but still supports wireless Nikon TTL and high-speed sync.
1. SUPPORTS HIGH-SPPEED SYNC FLASH
YN568EX is the first speedlite supports high-speed flash in china; with high-speed sync (FP flash), the YN568EX can synchronize with all shutter speeds, the maximum shutter sync up to 1/8000.
2. COMPATIBLE WITH Nikon and Canon WIRELESS FLASHING SYSTEM
One YN568EX is able to respectively accept internal flashing of 580EX II, SB-900/800/700, 7D/60D/600D, C order of N’s internal flashing and ST-E2 wireless signal, achieves external TTL and manual flashing. Some beckoning functions such as wireless TTL flashing, grouping light ratio TTL flashing and the illumination of remote controlled flashing can be easily attained only if you carry a camera with built-in flashing command system and YN500EX.
3. A NEW TTL FLASH WITH LARGE GUIDE NUMBER
GN53@ ISO100, 105mm; which reaches the level of the mainstream hot shoe flashes, supports HSS, TTL/M/Multi mode.
4. MULTIPLE TRIGGER MODE SUPPORTED
The YN568EX can be triggered by the camera set-top, built-in or main-controlled flashing command, S1 and S2 (pre-flash-canceled mode).
5. SUPPORTS AUTO/MANUAL ZOOMING
The covered focal length will vary among auto, 24-105mm on the lamp adapter by operating the zoom button on the flash light, supports full-frame/half-frame camera.
6. COMPREHENSIVELY SUPPORTS TTL FUNCTIONS
The YN568EX supports HSS, FEC, FEB, Rear-curtain sync, FE lock, Modeling Light, Canon camera menu accessible
7. SUPER SPEED OF CHARGING RECYCLE
The time for full gloss output current-return will only take you 3 seconds; you can get fast current-return experience even without brand-new batteries, which will only take you 4~5 seconds.
8. COMPLETED WITH STANDARD PC SYNCHRONOUS INTERFACE
It makes things easier on lightening the flashlight synchronously by using PC synchronous line.
9. SOUND PROMPTING SYSTEM
When the sound prompting system is enabled, the different sound ways will prompt the different working conditions of the flashlight so as to make you focus on shooting only.
10. DEPTH-OF-FIRED
Press down the camera’s depth-of-fired preview button, the YN568EX will send out continuous flash lasting one second.
11. ADVANCED SETTINGS ON FLASH
The YN568EX has advanced options setting function, where you can self-define the functions of the flashlight on your own requirements.
12. AUTOMATIC SETTINGS SAVING
YN568EX automatically save the operation currently used for your future use.

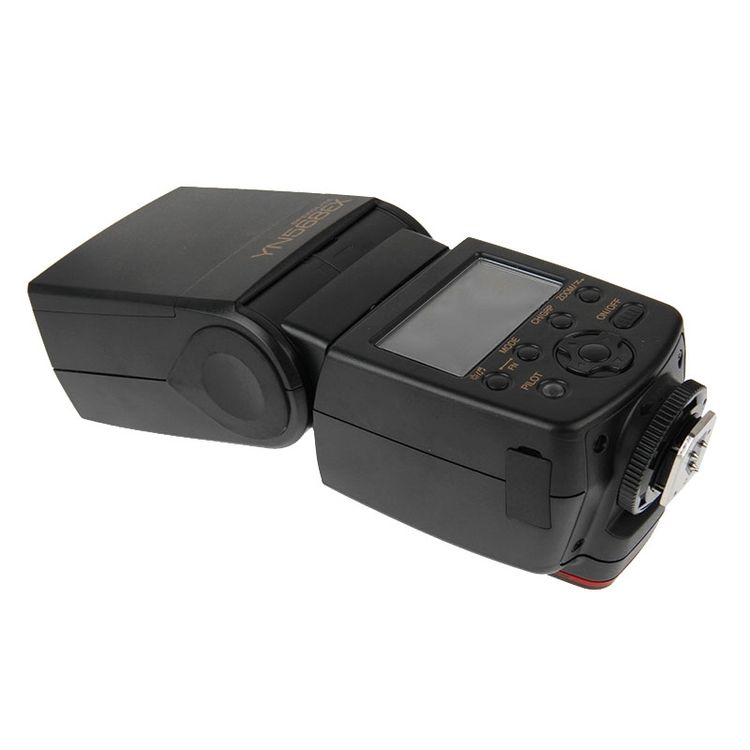

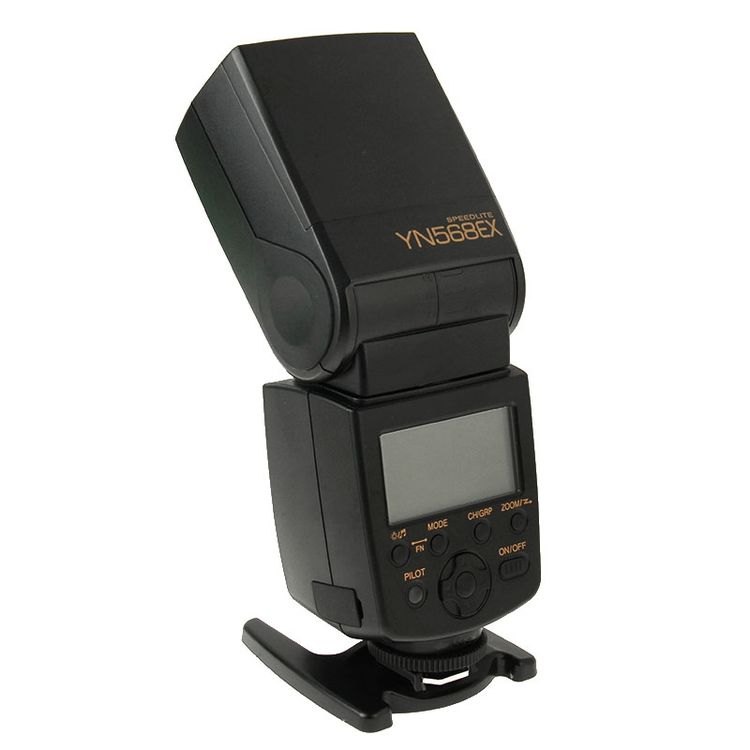

13. LCD PANEL USER INTERFACE WITH SUPER GELIVABLE METAL HOT-SHOE STAND
1. Wirelss TTL Slave mode (both version):
Canon 5D III 7D 60D 600D 650D, Yongnuo ST-E2, Canon 580EX II, Nikon SB-900, SB-800, SB-700, Commander SU-800, Camera with CLS i-TTL system: D4, D3x, D3s, D3, D2x, D700, D300s, D300, D200, D7000, D90, D80
2. Hot shoe i-TTL mode (Nikon Version):
Nikon D4, D3x, D3s, D3, D2x, D800E, D800, D700, D600, D300s, D300, D200, D7000, D90, D80, D5200, D5100, D5000, D3100, D3000, D60, D40, D40x
Additional Information
Guide No.: 58(ISO 100, 105mm)
Wireless Triggering Distance: 20-25m indoor, 10-15m outdoor
Flash coverage: Auto, 24mm, 28mm, 35mm, 50mm, 70mm, 80mm, 105mm
Flash Mode: TTL, M, MULTI
Trigger Mode: Set-top, Sc, Sn, S1, S2
Vertical Rotation Angle: -7~90 degrees
Horizontal Rotation Angle: 0~270 degrees
Channels: 4
Color Temperature: 5600K
Lighting Time: 100~1500 times(AA alkaline cell used)
Recycle Time: Approx 3s(AA alkaline cell used)
Flash Time: 1/200s~1/20000s
Flash Control: 8 levels of output control (1/128-1/1), 29 levels of fine tuning

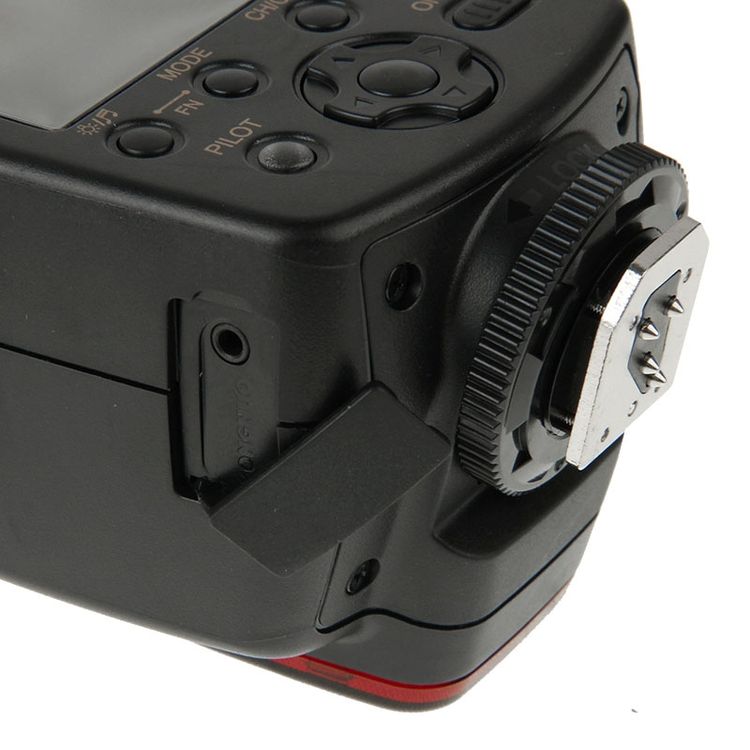

External Interface: Hot shoe, PC port
Size: 60x190x73mm
Weight: 350g

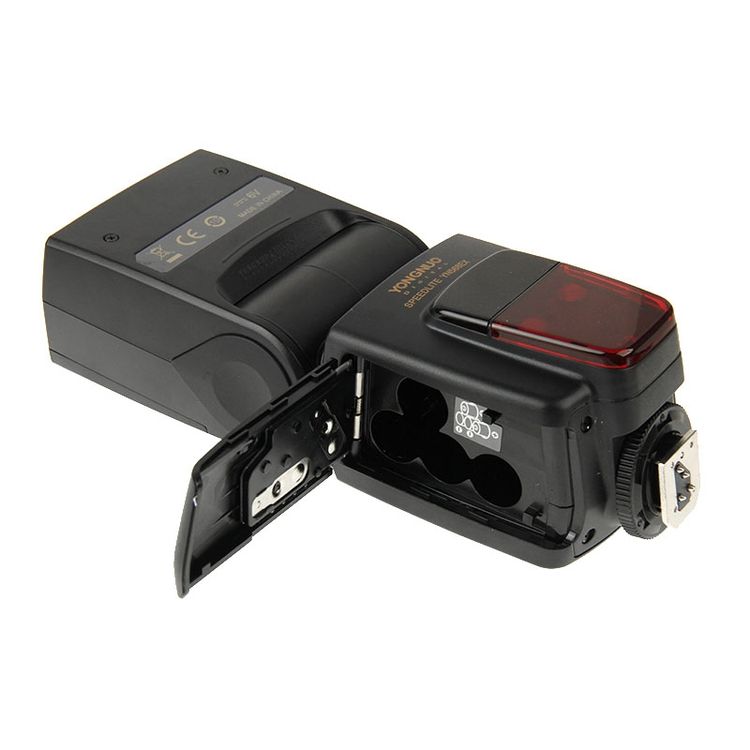

Power Supply: 4 x AA Battery (not included)

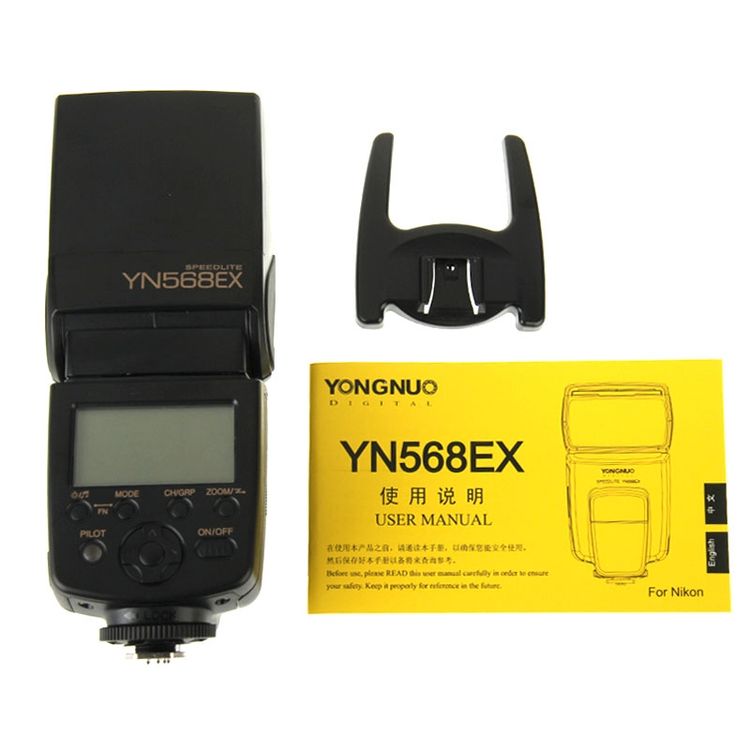

Package Contents: Speedlite x 1, Manual x 1, Mini Stand x 1, Protective Bag x 1
Weight: 0.650kg
Size: 21cm x 9cm x 8cm
