Overview
Suitable Camera and Flashes in Wireless TTL Slave mode:
1. Canon Camera: Canon 7D, 60D, 600D
-D70, D70s, D200, D80, D300, D700, D90, D300s, D7000, D800, D800e
2. Canon Flash: Canon 580EX II
-Flash: SB-900, SB-800, SB-700
3. Suitable Camera in TTL function:
-Canon 5D II 550D 600D 1000D 1100D 60D 70D 650D 700D 5D3 6D 7D
4. Suitable Camera in S1 / S2 mode:
-Any DSLR camera with standard hot shoe
The following cameras are NOT compatible with the YN-565EXII:
Canon 20D, 30D, 40D, 5D, 400D, 350D
1. Supporting Canon Wireless TTL Slave Mode
YN-565EX supports both Canon wireless TTL modes in parallel, which means you have a cross-brand compatible Flash Speedlite now when it comes to the wireless slave mode.
a) It can receive wireless signal from Canon system at the same time.
b) It can just only receive wireless signal from Canon system, avoiding System
c) It can just only receive wireless signal from system, avoiding Canon System
Under the wireless TTL slave mode ( Off camera ), YN-565 can be fired by Canon 580EX II, SB-900, SB-800, SB-700 and Canon 7D, 60D, 600D with built-in commander mode, Camera with C-commander and ST-E2
Note: Any flash exposure compensation, FEB, FE lock, manaul flash, and stroboscopic flash setting which be set with the master unit will be automatically transmitted to YN-565EX.
2. TTL Flash with very powerful guide number
GN58 @ ISO100, 105mm, support TTL/M/Multi mode
3. Being fired via multiple ways
via master flash on camera, camera with built-in commander mode, optical S1 and S2
4. Auto and manual zoom functions
Has a 24-105mm focal length, supports full-frame / half-frame camera
5. Full support TTL Functions
FEC, FEB, Rear-curtain sync, FE lock, Modeling Light, Menu Access of Canon camera
6. Higher Speed of Charging Recycle
It only takes 3 seconds to finish a charging cycle after a full level output, you can even use external power pack to accelerate the charging speed.
7. Advanced Features
a) Charging Socket for External Flash Pack ( You can buy Yongnuo SF-18 C or SF-17 C )
b) PC Port ( You can buy 3.5mm PC Sync Cable to fit for it )
c) Sound Prompt System — Different sound stands for different working status,it’s more convenient for you to operate.
8. Modeling Light Function
Under the function of depth-of fired preview in Camera, YN-565 will provide one more second continuous light.
9. Advanced Setting and Automatic Saving Setting, Overheating Protection.
10. Wireless Sensor

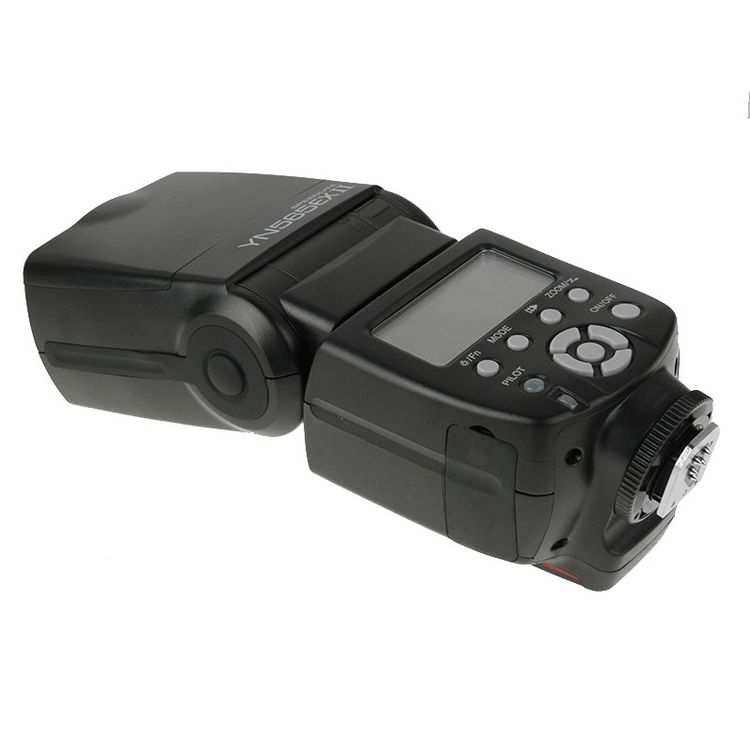

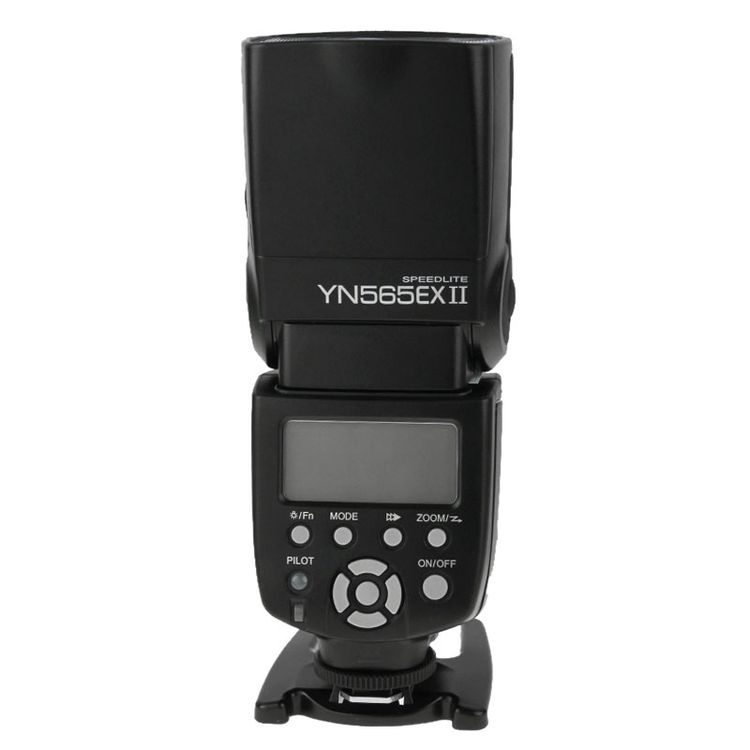

11. LED Display and Metal version Hot shoe.
Additional Information
Guide No.: 58(ISO 100, 105mm)
Wireless Triggering Distance: 20-25m indoor, 10-15m outdoor
Flash coverage: Auto, 24mm, 28mm, 35mm, 50mm, 70mm, 80mm, 105mm
Flash Mode: TTL, M, MULTI
Trigger Mode: Set-top, Sc, Sn, S1, S2
Vertical Rotation Angle: -7~90 degrees
Horizontal Rotation Angle: 0~270 degrees
Channels: 4
Color Temperature: 5600K
Lighting Time: 100~1500 times(AA alkaline cell used)
Recycle Time: Approx 3s(AA alkaline cell used)
Flash Time: 1/200s~1/20000s
Flash Control: 8 levels of output control (1/128-1/1), 29 levels of fine tuning

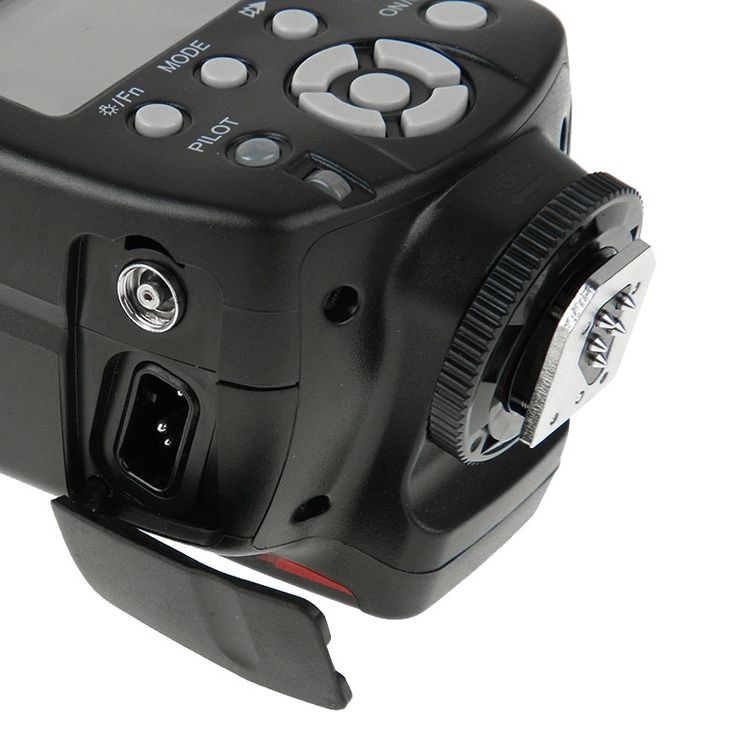

External Interface: Hot shoe, PC port, DC port
Size: 60x190x78mm
Weight: 380g

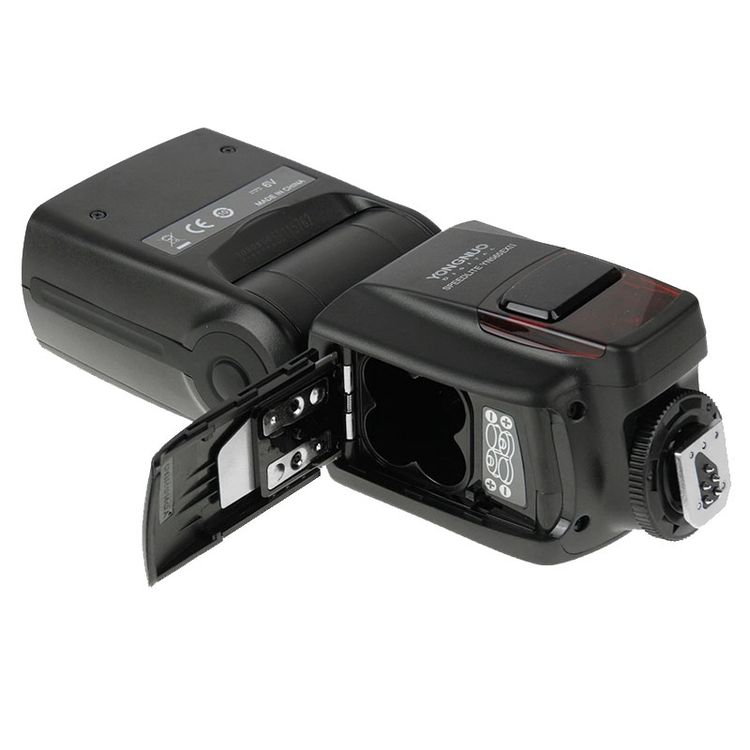

Power Supply: 4 x AA Battery (not included)

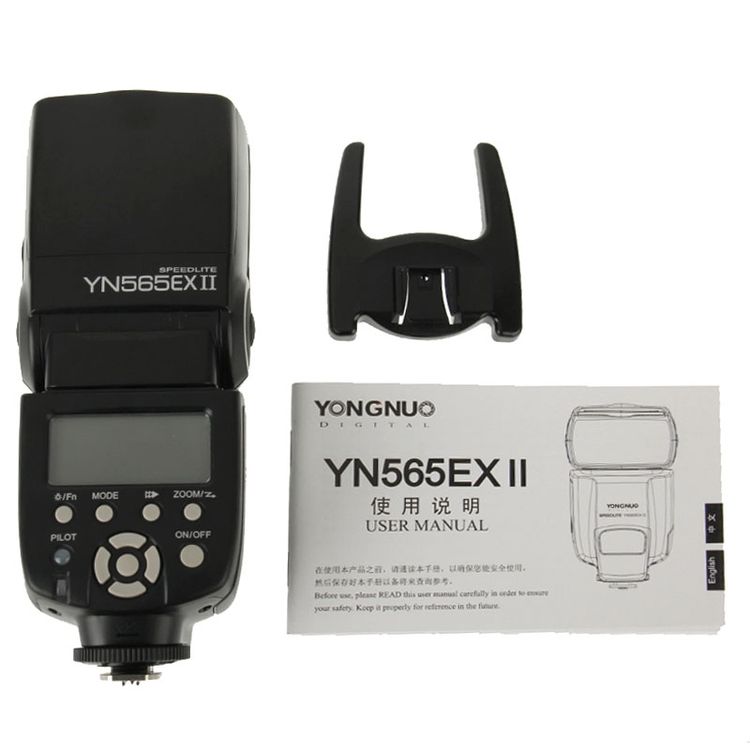

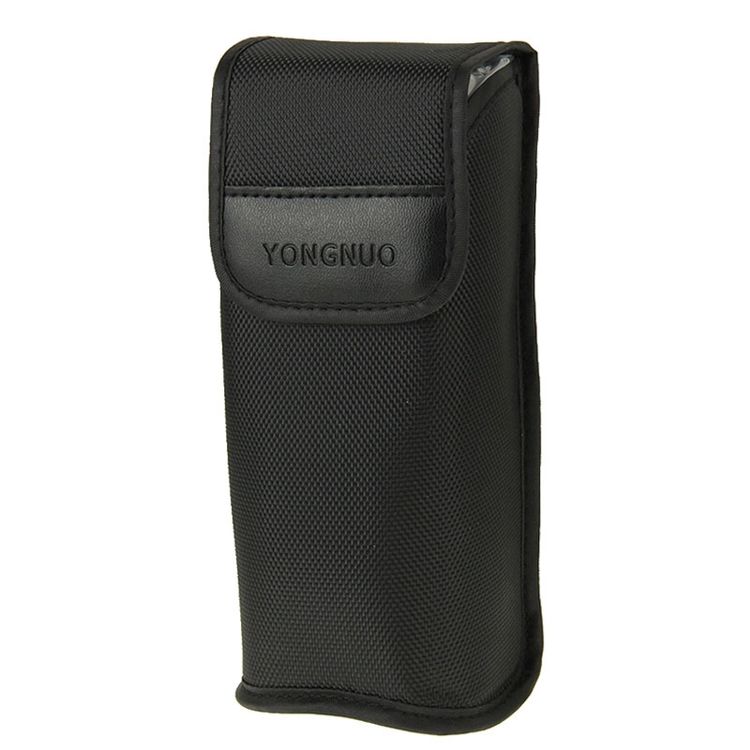

Package Contents: Speedlite x 1, Manual x 1, Mini Stand x 1, Protective Bag x 1
Weight: 0.600kg
Size: 21cm x 9cm x 8cm
