Overview
1. Support Remote TTL Function: In the case of remote mode, FEC, FEB, Rear-curtain sync, FE lock is supported.
2. Guide Number: GN58 at ISO100, 105mm.
3. Multiple Trigger Mode Supported: The 560EX can be triggered by hot-shoe, flash command slave mode, optical S1, and S2 (pre-flash- canceled mode.)
4. Remote Wireless Trigger Supported: The YN-560EX supports remote wireless trigger function, which makes the Sc/Sn/S1/S2 mode can be used in outdoor environment and the wireless trigger distance is as long as 15 meters/49 feet.
5. Support Motor Zooming (24~105mm): The 560EX covers a focal length range of 24-105mm by operated the zooming buttons.
6. Advanced Settings On Flash: The 560EX supports advanced settings, you can customize the unit according to shooting preferences.
7. 2.5mm Type PC Port Provided: 560EX provides 2.5mm type PC port, you can make the flash synchronously by connecting to the PC port.
8. Additional Features: Rear-curtain sync, FEC, FEB, FEV, the electronic flash head zooming, sound prompt, automatically saving setting, PC port, power saving mode, over heat protection, advanced setting.

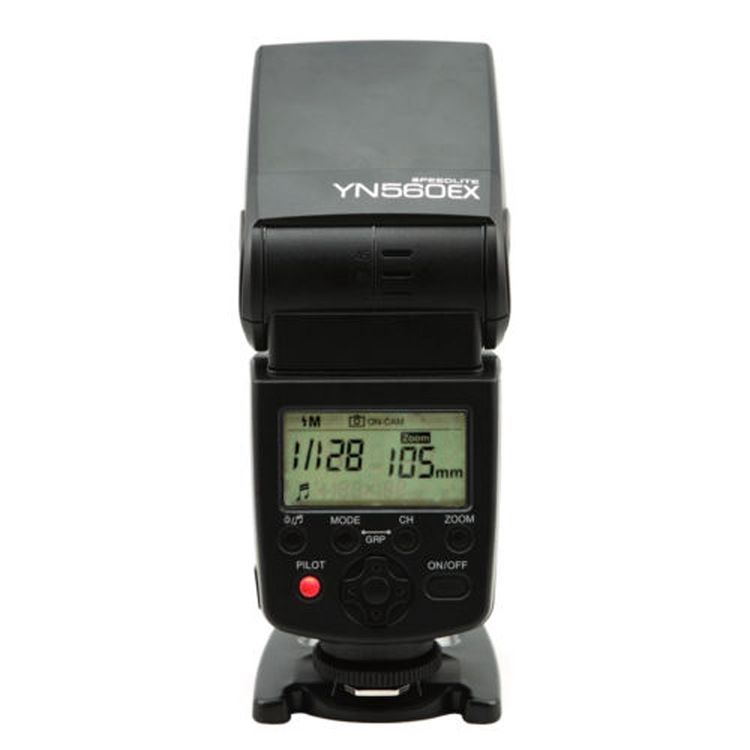

9. Large LCD Panel.
10. FE Lock (Canon).
11. FV Lock (Nikon).
12. Flash exposure compensation.
13. Support High Speed Continuous Shooting.
14. Multi-flash Lighting Application.
15. Super speed of charging recycle.

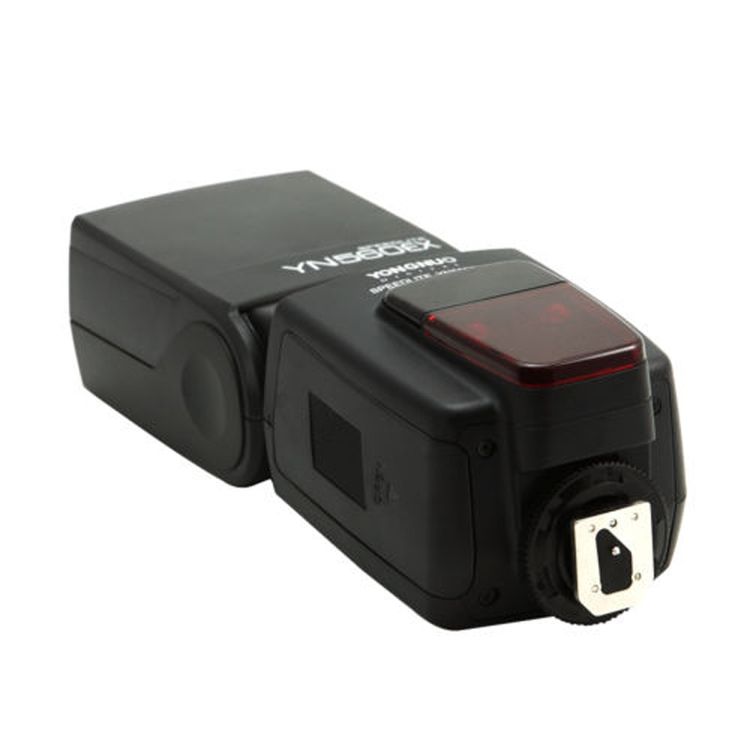

16. Metal hot-shoe stand.
1. Under the following conditions can achieve remote TTL function:
– For Canon EOS 7D / 60D / 600D camera, the speedlite can achieve remote TTL function by triggering cameras’ built-in flash together.
– For other Canon cameras except EOS 7D / 60D / 600D, the speedlite can achieve remote TTL function by using with Canon 580EX II speedlite together.
– For Canon DSLR camera, the speedlite can also achieve remote TTL function by using with Canon ST-E2 series flash together.
– For Nikon DSLR camera, the speedlite can achieve remote TTL function by using with Nikon SB900 / SB800 / SB700 speedlite together.
– For Nikon DSLR camera, the speedlite can also achieve remote TTL function by using with Nikon SU800 flash together.
2. For Other Function
– For Pentax, Olympus and other cameras with standard hot-shoe (can not achieve remote TTL function), only can be as a manually speedlite.
Additional Information
Model: YN-560EX
Guide No.: 58 meters (ISO 100, 105mm)
Zoom Range: 24, 28, 35, 50, 70, 80, 105mm
Wireless Triggering Distance: 20-25m indoor, 10-15m outdoor
Flash Mode: TTL, M, MULTI
Trigger Mode: Sc, Sn, S1, S2
Vertical Rotation Angle: -7-90 degrees
Horizontal Rotation Angle: 0-270 degrees
Color Temperature: 5600K
Lighting Time: 100-1500 times
Recycle Time: approx. 3s
Flash Time: 1/200s-1/20000s
Flash Control: 8 levels of output control (1/128-1/1), 29 levels of fine tuning
Power Supply: 4 x AA Battery (not included)
Weight: 0.640kg
Size: 21cm x 8cm x 9cm
