XNUCLEO-F103RB Development Kit, Comes with IO Expansion Shield and Various Sensors
Overview
This development kit includes:
1. XNUCLEO-F103RB (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB)

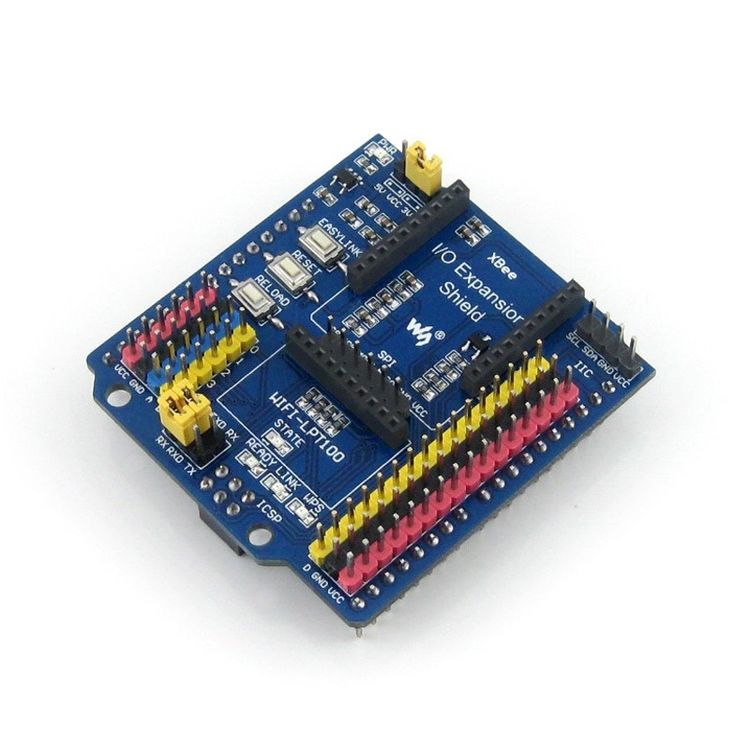

2. IO Expansion Shield (Provides interfaces for connecting XBee, WiFi-LPT100, and sensors)

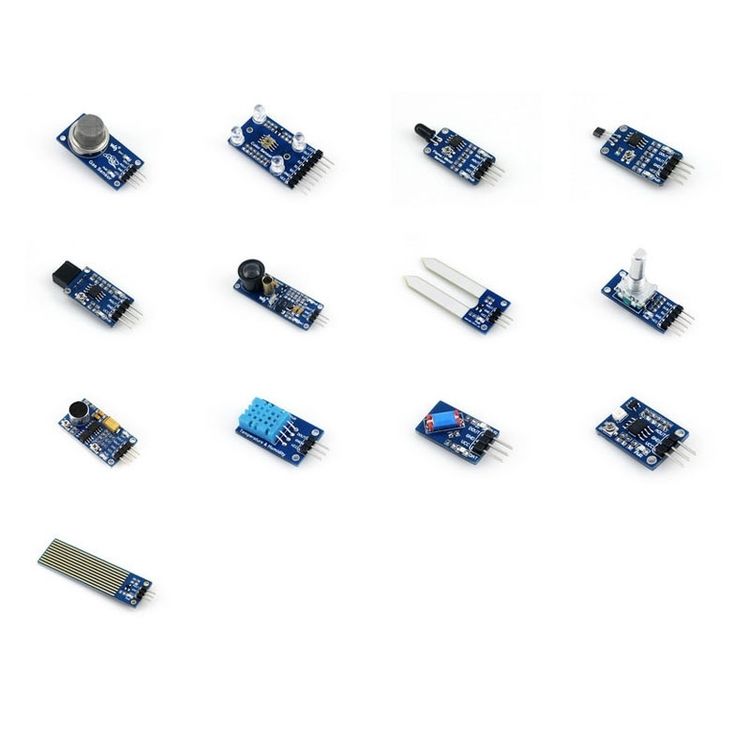

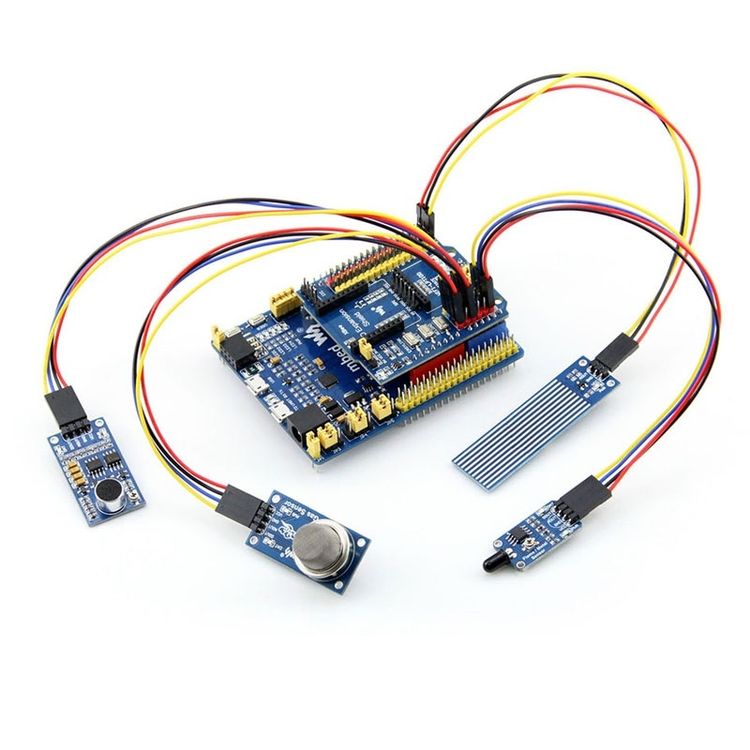

3. Sensors Pack (Gas, Color, Flame, Hall, IR, UV, Laser, Sound, Temperature and Humidity, Tilt, Liquid level, etc.)
XNUCLEO-F103RB Features
1. Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6
2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources

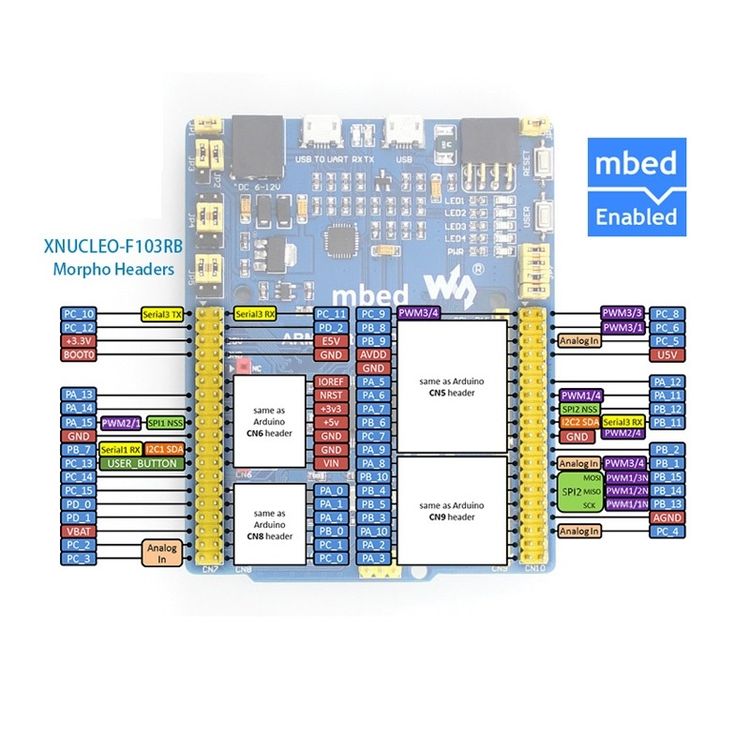

3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
4. Supports mbed, build prototype quickly by mbed SDK and online tools
5. Comprehensive free software HAL library including a variety of software examples

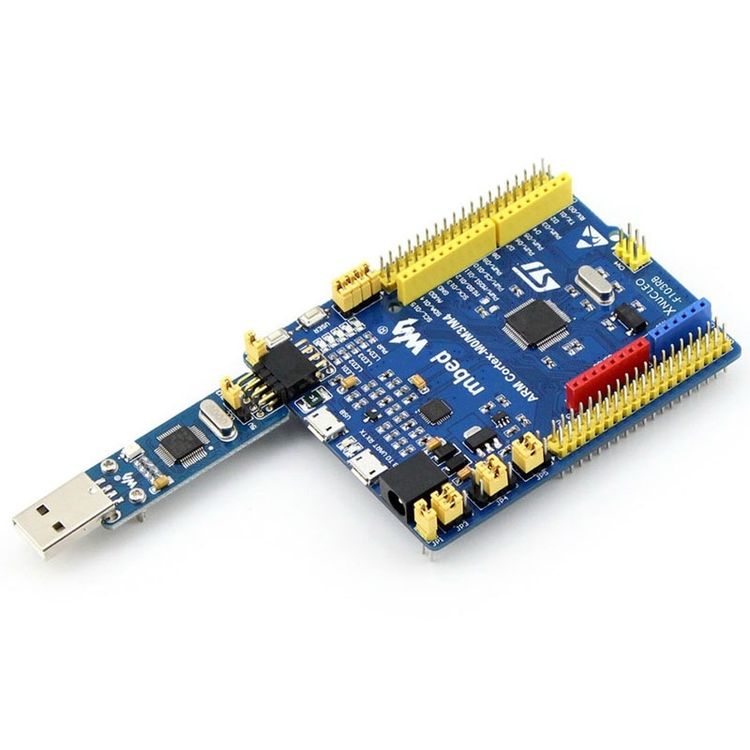

6. Comes with a separated ST-LINK/V2 module

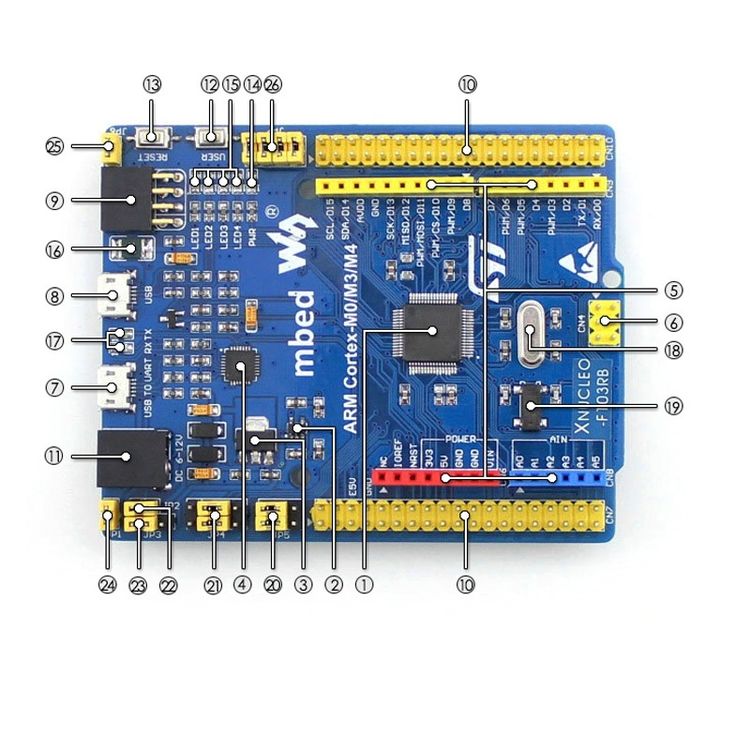

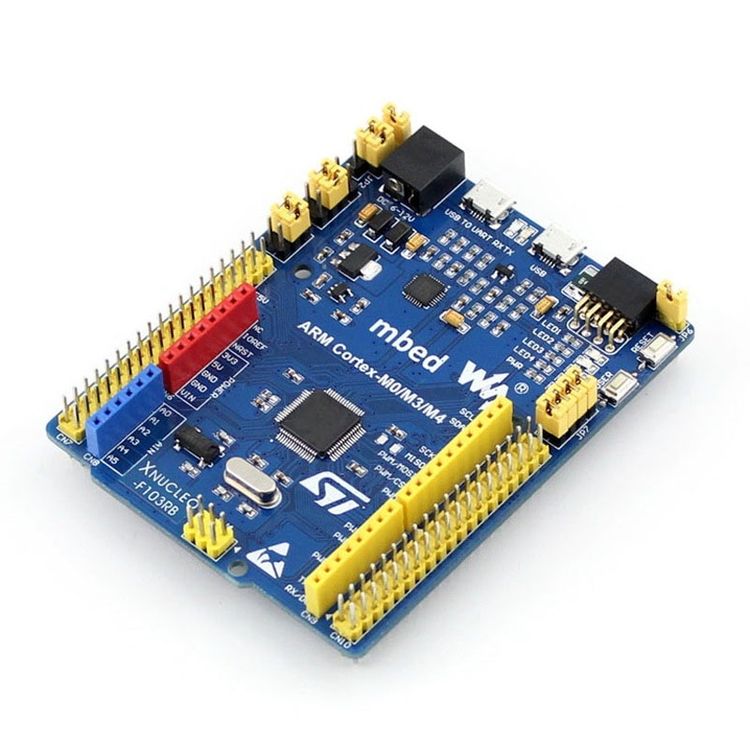

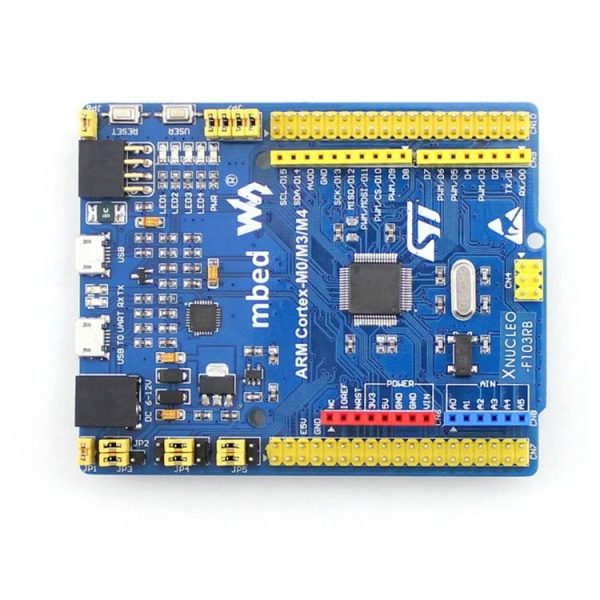

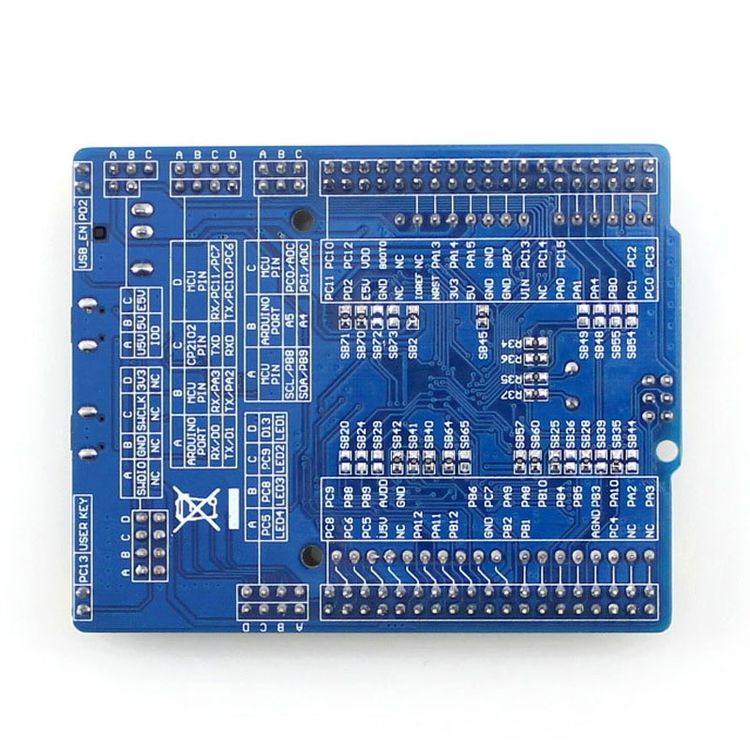

What is on the XNUCLEO-F103RB
1. STM32F103RBT6
– Core: ARM® 32-bit Cortex™-M3
– Operating frequency: 72MHz
– Operating voltage: 2.0V-3.6V
– Package: LQFP64
– Memories: 128kB Flash, 20kB SRAM
– Interfaces: 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
– AD/DA: 2 x AD (12 bit, 16 channels)
2. SPX3819M5: 3.3V voltage regulator
3. AMS1117-5.0: 5.0V voltage regulator
4. CP2102: USB to UART convertor

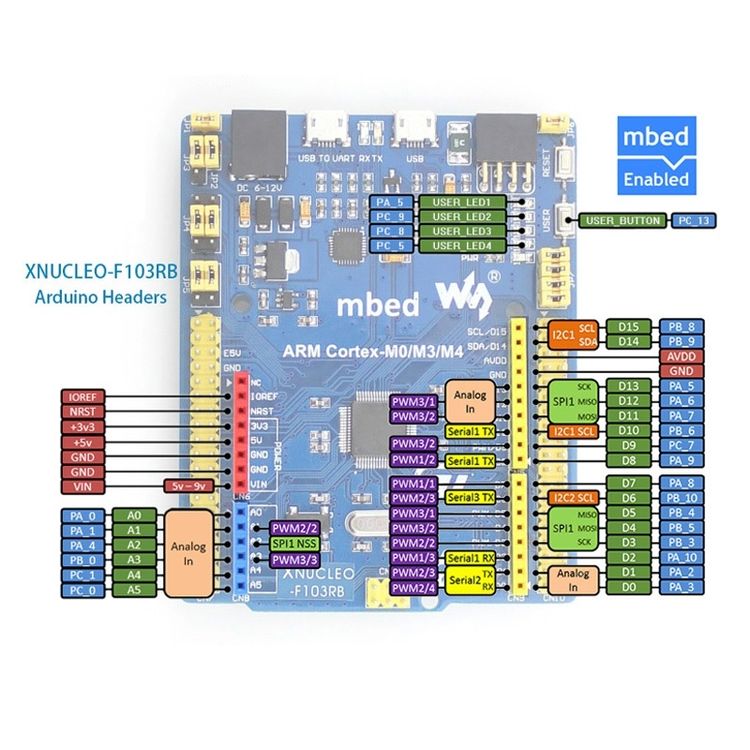

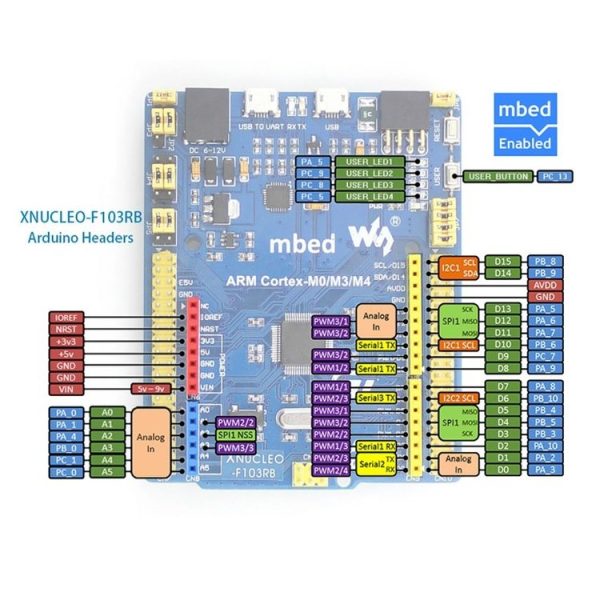

5. Arduino connector: for connecting Arduino shields
6. ICSP interface: Arduino ICSP
7. USB TO UART: for debugging
8. USB connector: USB communication interface
9. SWD interface: for programming and debugging
10. ST Morpho headers: access to VCC, GND and all the I/Os, easy for expansion
11. 6-12V DC input
12. User button
13. Reset button
14. Power indicator
15. User LED
16. 500mA fast self-recovery fuse
17. Serial port Rx/Tx indicator
18. 8MHz crystal
19. 32.768KHz crystal
20. ADC/I2C selection jumper
– Short A and B: Arduino A4, A5 is used as I2C
– Short B and C: Arduino A4, A5 is used as ADC
21. UART selection jumper
22. MCU current test jumper: for low power tests
23. Power selection jumper
– Short 5V and U5V: powered from USB connection
– Short 5V and E5V: powered from external power supply
24. USB enable jumper
– Short the jumper to enable
– Open the jumper to disable
25. User button jumper
– Short the jumper to connect to I/Os used in example code
– Open the jumper to connect to other custom pins via jumper wires
26. User LED jumper
– Short the jumper to connect to I/Os used in example code
– Open the jumper to connect to other custom pins via jumper wires

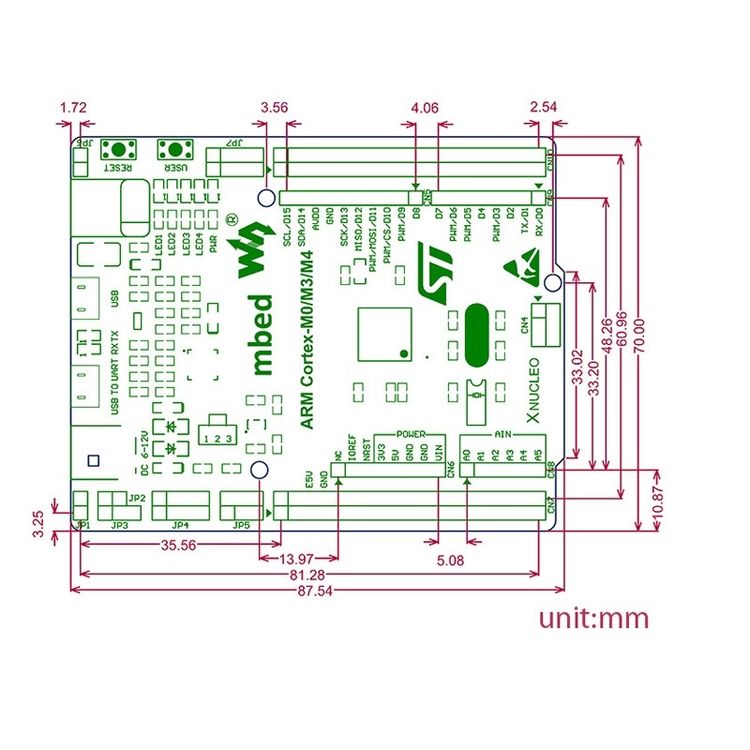

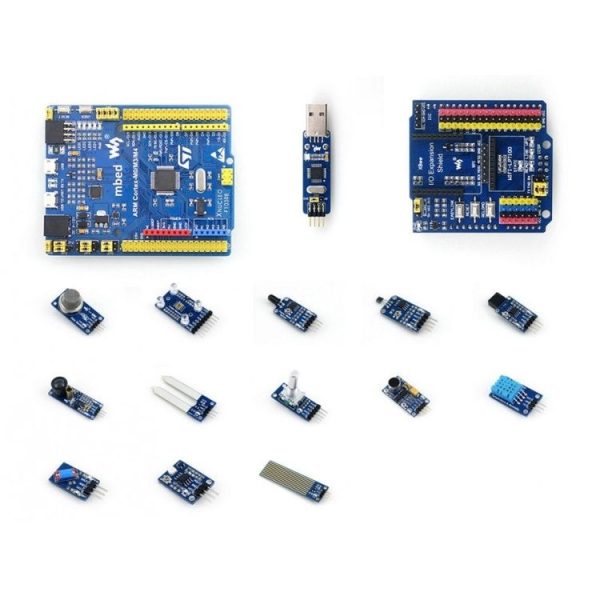

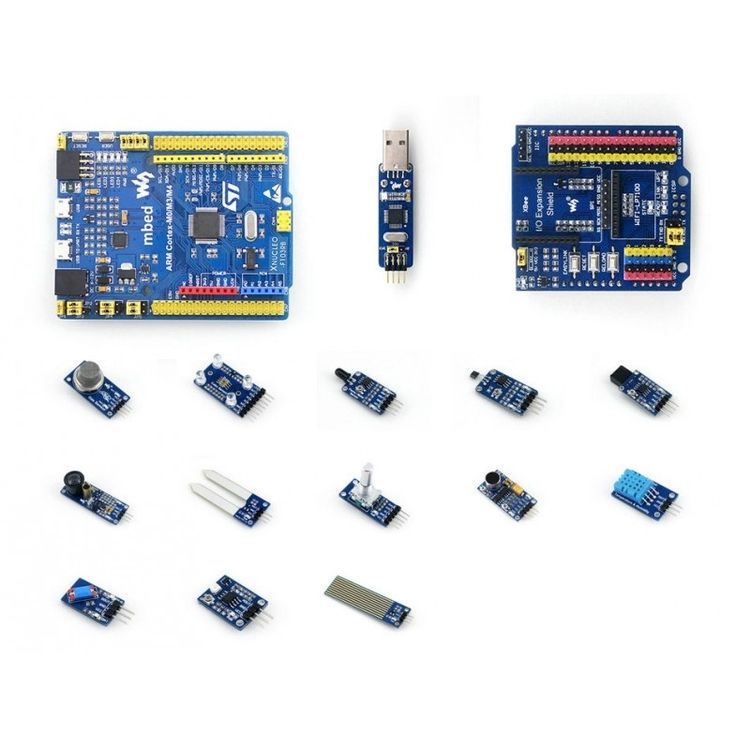

Package Contents
1. XNUCLEO-F103RB x 1

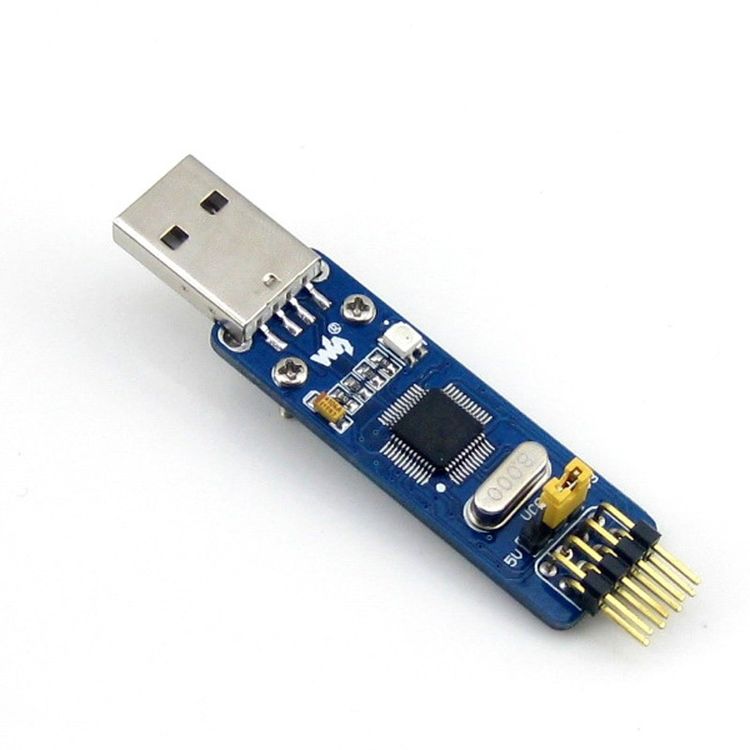

2. ST-LINK/V2 (mini) x 1
3. USB Type A Plug to Micro B Plug Cable x 1
4. USB Type A Plug to Receptacle Cable x 1
5. IO Expansion Shield × 1
6. Sensors Pack × 1
Additional Information
Weight: 0.300kg

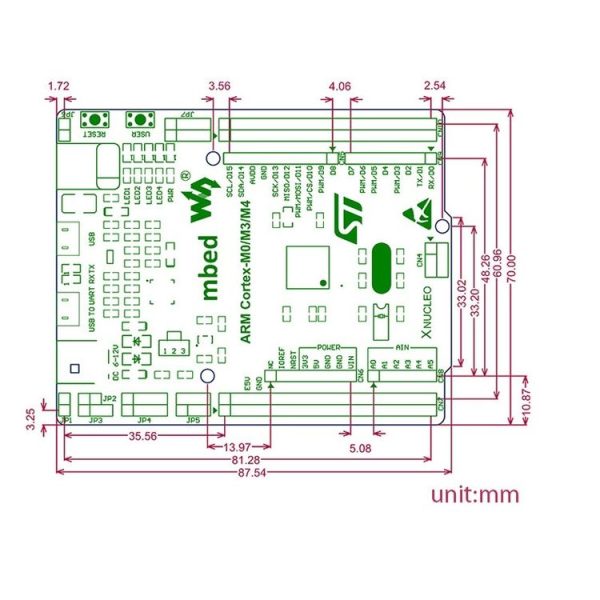

Size: 11cm x 8cm x 5cm
