Waveshare Open8S208Q80 Standard, STM8 Development Board


R666

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

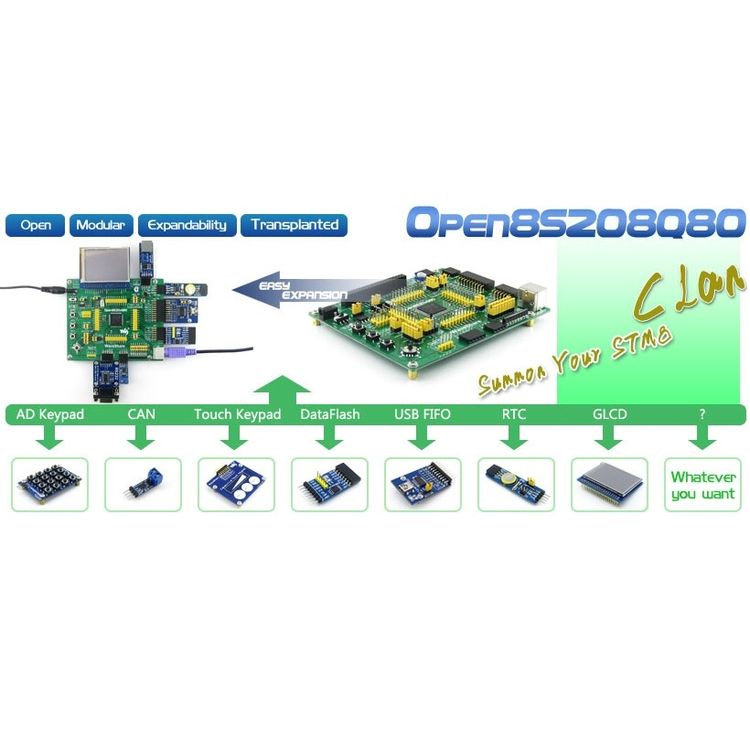

Open8S208Q80 is a STM8 development board that features a STM8S208MB device as the microcontroller. It supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM8 microcontroller.

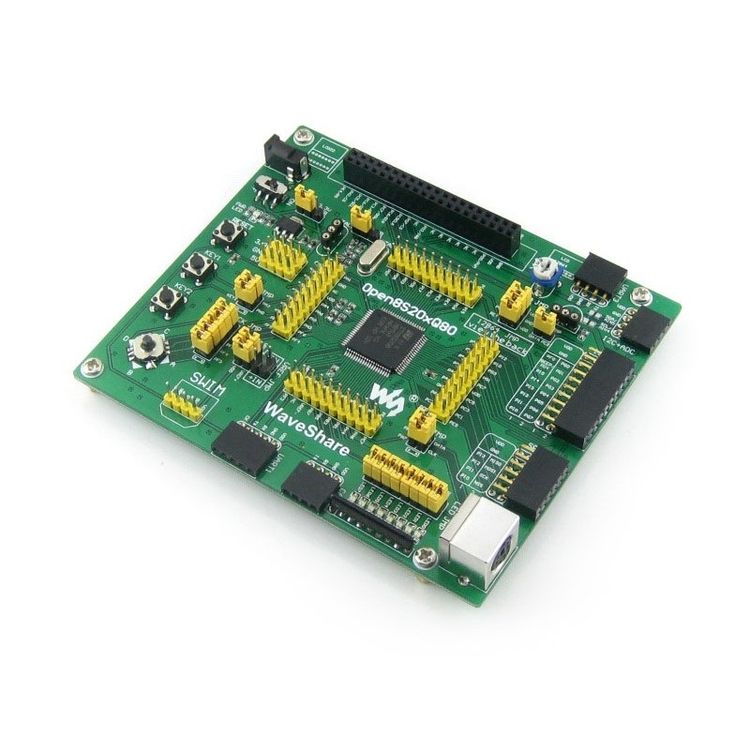

What

i

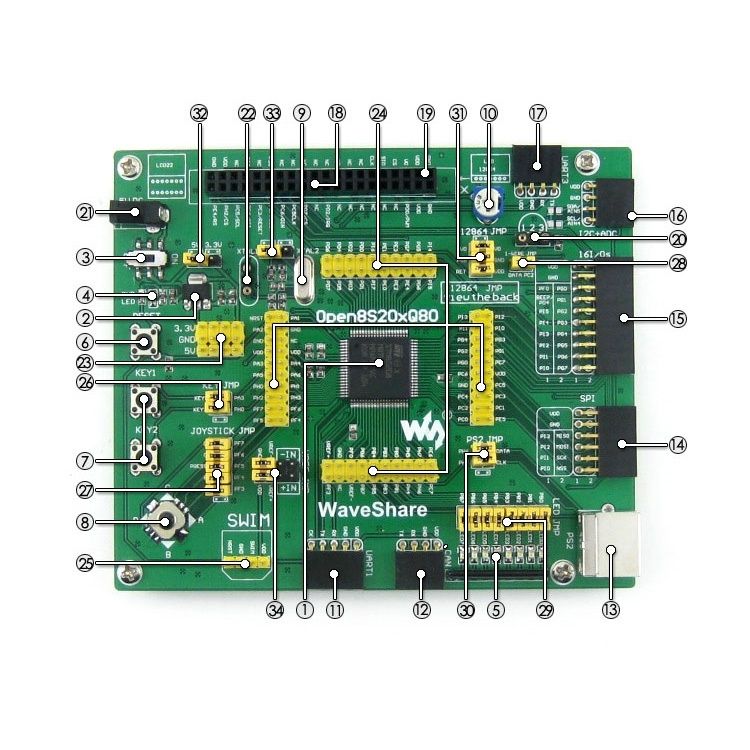

s On Board

1. STM8S208MB:the high performance STM8 MCU which features:
– Core: 8-bit
– Operating Frequency: 24 MHz(20 MIPS) Max
– Operating Voltage: 2.7-5.5V
– Package: LQFP80
– I/Os: 68
– Memories: 128kB Flash, 6kB SRAM, 2kB EEPROM
– Communication Interfaces: 1 x SPI, 1 x I2C, 2 x UART, 1 x CAN, 12 x PWM, 16 x ADC
– Debugging/Programming: SWIM
2. AMS1117-3.3: 3.3V voltage regulator
3. Power switch
4. Power indicator
5. LEDs: Convenient for indicating I/O status and/or program running state
6. Reset button
7. User keys: For I/O input test and/or program control
8. Joystick: Five positions
9. 8M crystal oscillator
10. Adjustable resistor: For LCD12864 contrast adjustment
11. UART1 interface: For connecting UART peripherals, such as RS232, RS485, USB TO UART, etc.
12. CAN interface: For connecting CAN modules
13. PS/2 interface: For connecting PS/2 devices, such as keyboard and/or mouse
14. SPI interface: For connecting SPI peripherals, such as DataFlash (AT45DBxx), SD card, MP3, etc.
15. 16 I/Os interface: For connecting accessory boards which using I/O control, such as FT245 USB FIFO, 8 SEG LED, etc.
16. IC interface: For connecting I2C peripherals, such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc.
17. UART3 interface: For connecting UART peripherals, such as RS232, RS485, USB TO UART, etc.
18. Graphic multi-color LCD interface: For connecting 2.2 inch multi-color touch screen LCD which using SPI control
19. Graphic dot-matrix LCD interface: For connecting graphic LCDs such as LCD12864
20. 1-WIRE interface: V connecting 1-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
21. 5V DC jack
22. Custom crystal socket
23. VCC power input/output: Usually used as power output, also common-grounding with other user board
24. MCU pins connector: All the MCU pins are accessible on expansion connectors for further expansion
25. SWIM interface: For debugging/programming
26. User keys jumper
27. Joystick jumper
28. 1-WIRE jumper
29. LEDs jumper
30. PS/2 jumper
31. LCD interface selection jumper
– Short the jumper for dot-matrix LCD
– Open the jumper for multi-color LCD
32. VDD selection jumper
33. Crystal selection jumper
34. VREF selection jumper
35. For jumpers 26-30:
– Short the jumper to connect to I/Os used in example code;
– Open the jumper to connect to other custom pins via jumper wires.

Package Contents

1. Open8S208Q80 development board x 1
2. 4-pin wire x 2
3. 2-pin wire x 2
4. USB power cable x 1
5. User guide CD x 1

Additional Information

Weight & Size

Weight: 0.150kg
Size: 16cm x 9cm x 5cm

SKU: A0100095266 Category: Condition: New
