Overview

Overview

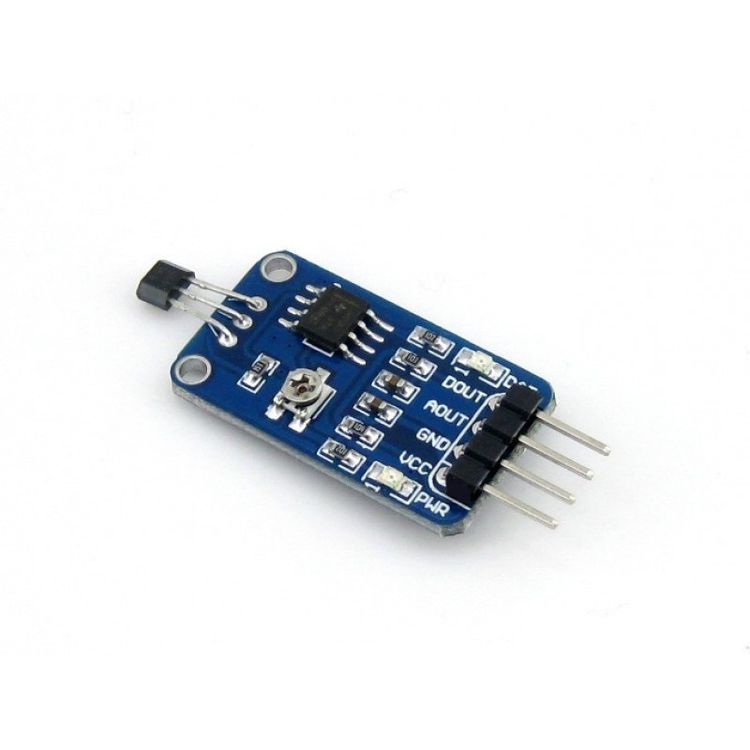

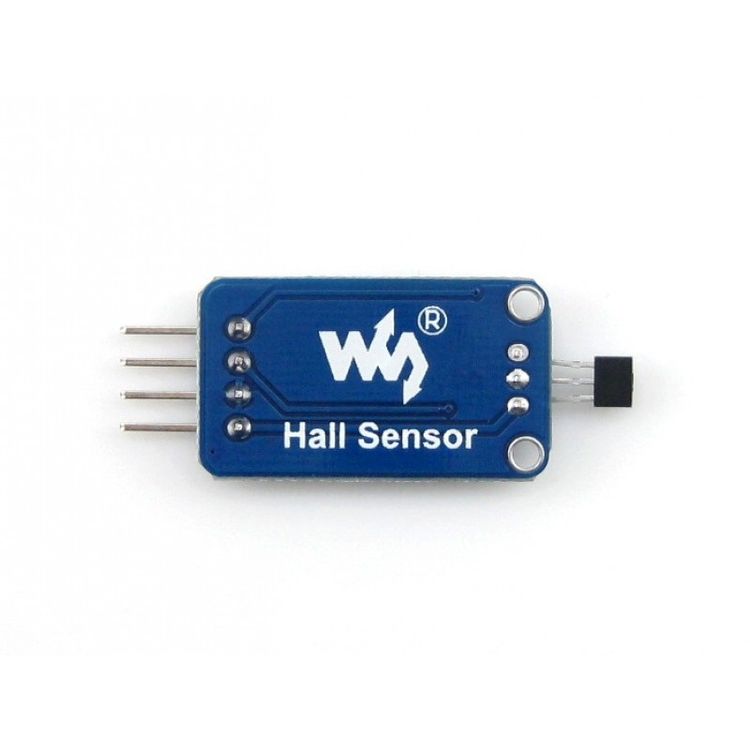

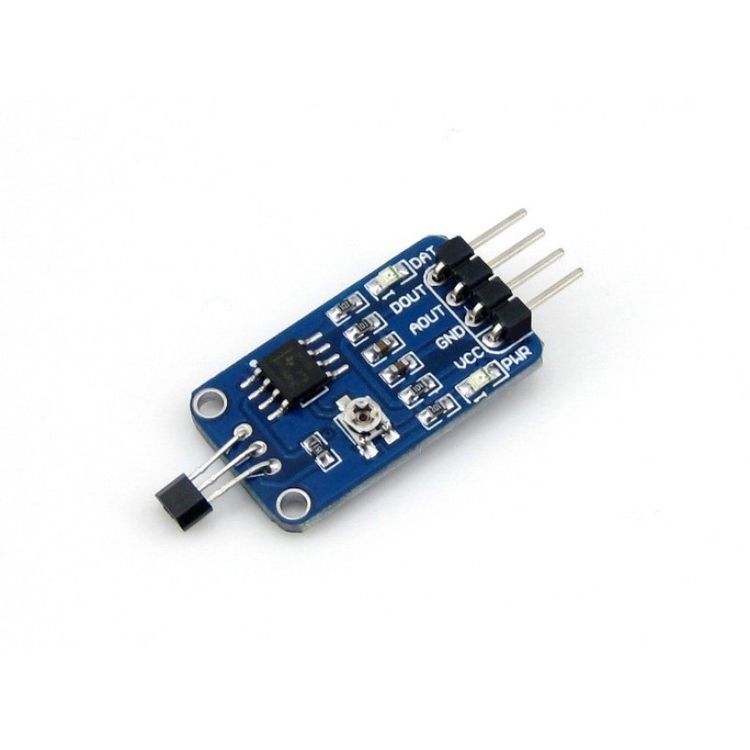

1. 49E hall sensor
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Power: 2.3V ~ 5.3V
2. Dimension: 27.0mm * 15.5mm
3. Mounting holes size: 2.0mm
Applications
1. Motor speed measurement
2. Object position detection
3. Smart car
4. Electronic bricks
How to Use

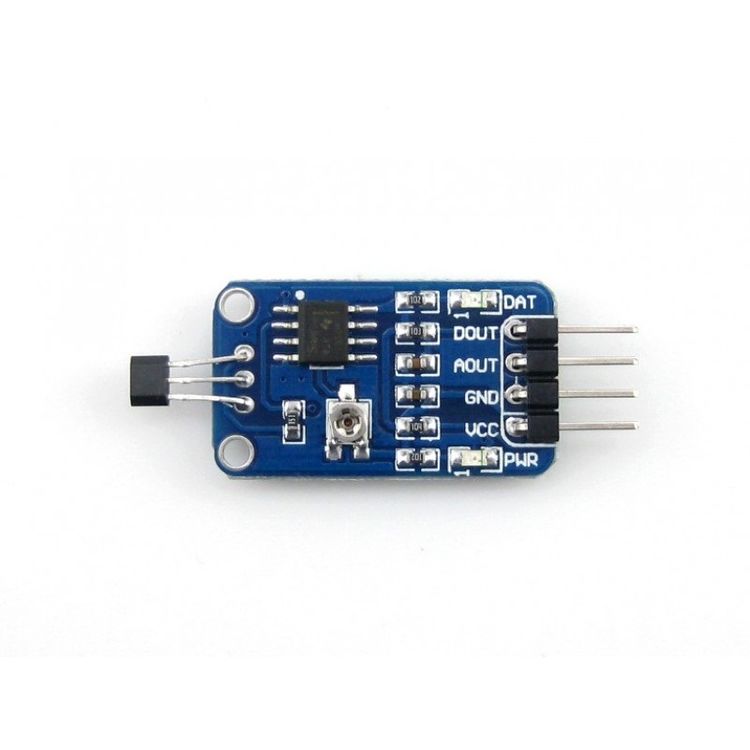

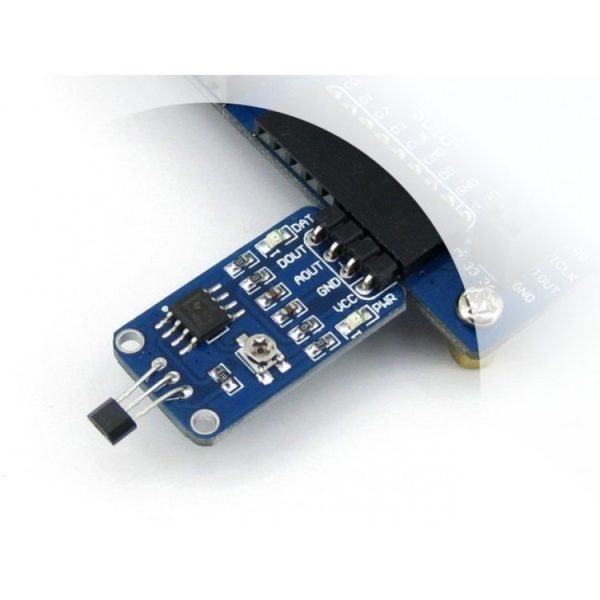

In the case of working with a MCU:
1. VCC: 2.3V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)

Additional Information

Weight & Size

Weight: 0.010kg
Size: 6cm x 3cm x 1cm

SKU: A0100112553 Category: Tag: Condition: NewOrigin: CN
