Overview
Product parameters
1. CPU: H3918EV300
2. Memory: 64MB DDR2 SDRAM
3. Flash: 8MB
4. TF card: maximum support 128G
5. Operating system: linux
6. Number of simultaneous access users: 3
7. Input: built-in microphone
8. Light frequency: 50Hz / 60Hz
9. Power adapter: DC 5V 1A
10. Charging current: 450mA
11. Battery capacity: 122930 / 4.4V / 1300mAh
12. Battery standby time: 300 minutes
13. Infrared irradiation distance: 5 meters (varies by environment)
14. Sensor chip: SC2232
15. Sensor type: 1 / 2.9 “Progressive Scan CMOS
16. Display resolution: 2 million pixels, 1920 * 1080 (1080P)

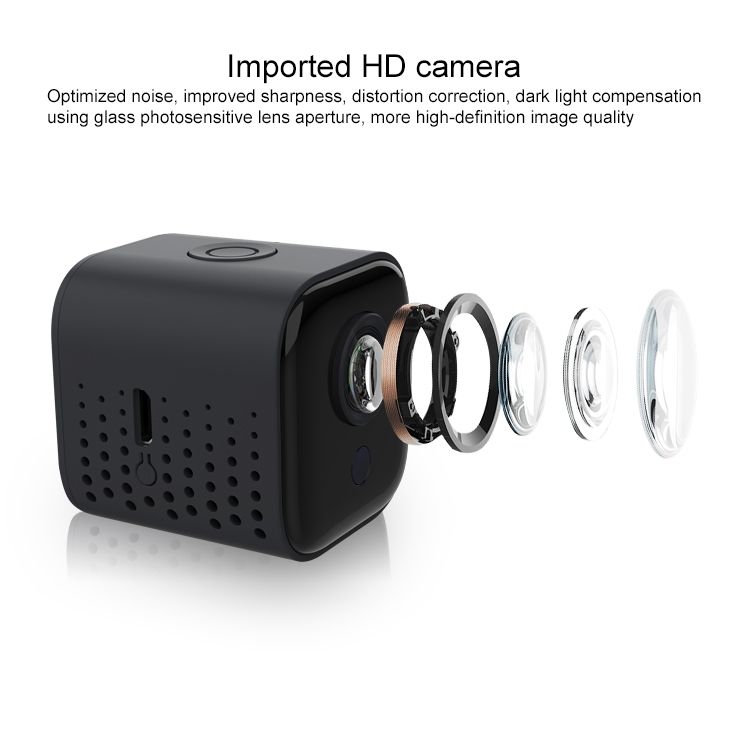

17. Lens 3.6mm
18. Video compression standard: SMART H.264
19. Main stream of video compression code stream: 1280×720 15 frames / sub stream 640×360 15 frames
20. Audio compression standard: G711A
21. Audio transmission: recording only
22. TF local storage: 32GB, reference value for all-day recording time: high-definition (720P) = 10 days
23. Storage interface: Micro SD card (maximum 128GB)
24. Power interface: Micro USB interface
25. Wireless standard: IEEE802.11b / g / n
26. Frequency range: 2.4 GHz-2.4835 GHz
27. Channel bandwidth: support 20MHz
28. Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
29. Transmission rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
30. Machine size: 39mmx35mmx37mm
31. Machine weight: 44.4g

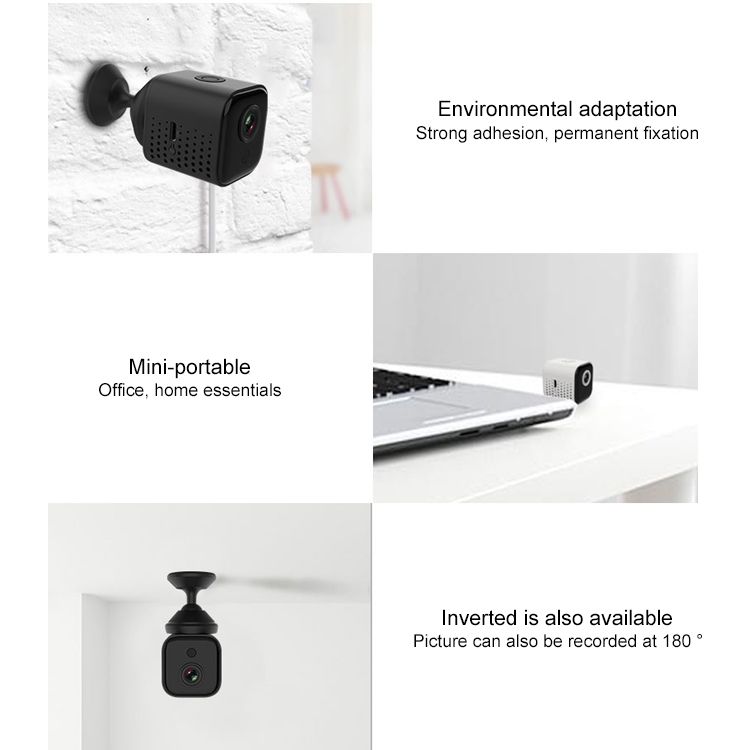

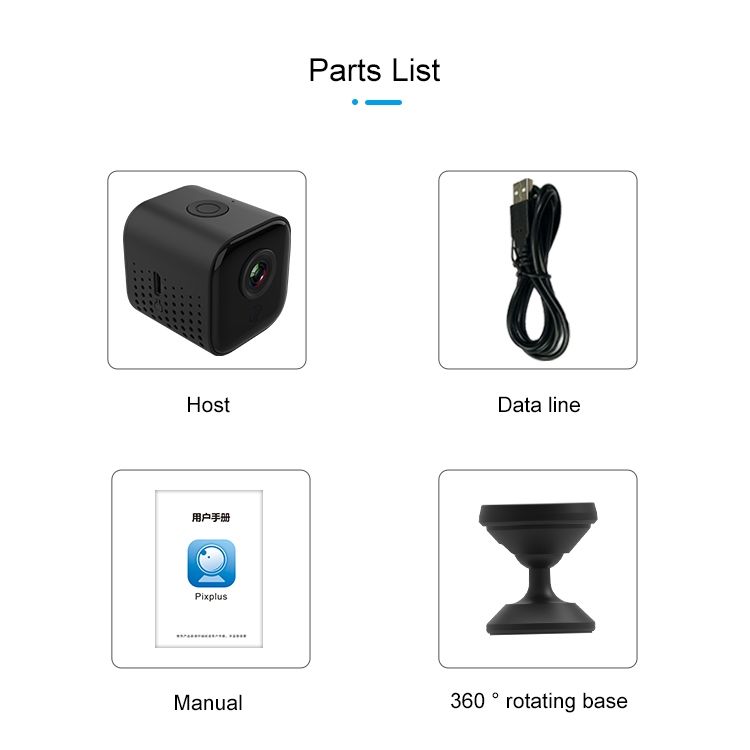

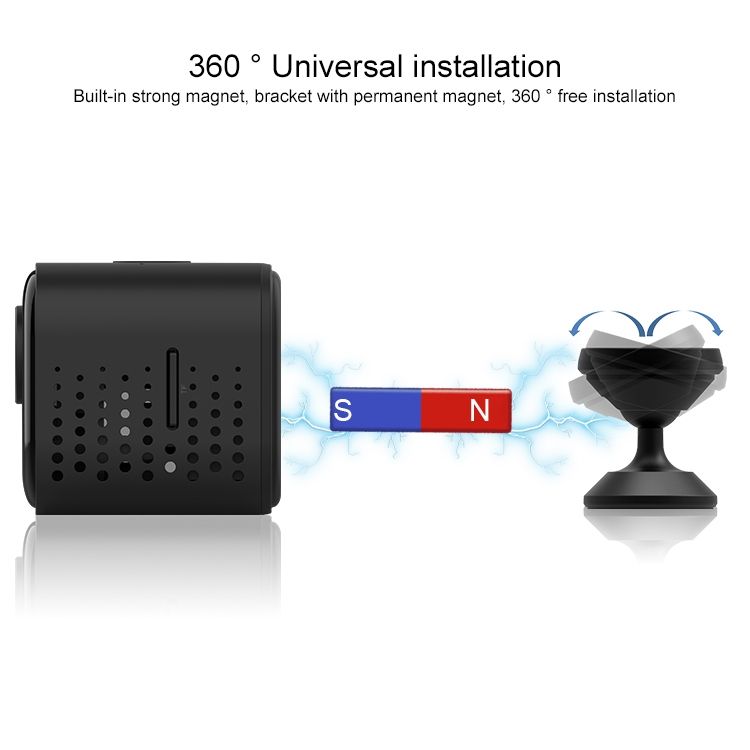

32. Main accessories: magnet base, small iron sheet, 3M plastic x2., Charging cable., Instruction manual, packing box
Features
1. Support AP direct connection, no external network can be directly connected with mobile phones
2. Smart H.264 720p real-time HD
3. Motion detection, automatic alarm
4. Monitoring, mobile phone remote, video / playback
Additional Information

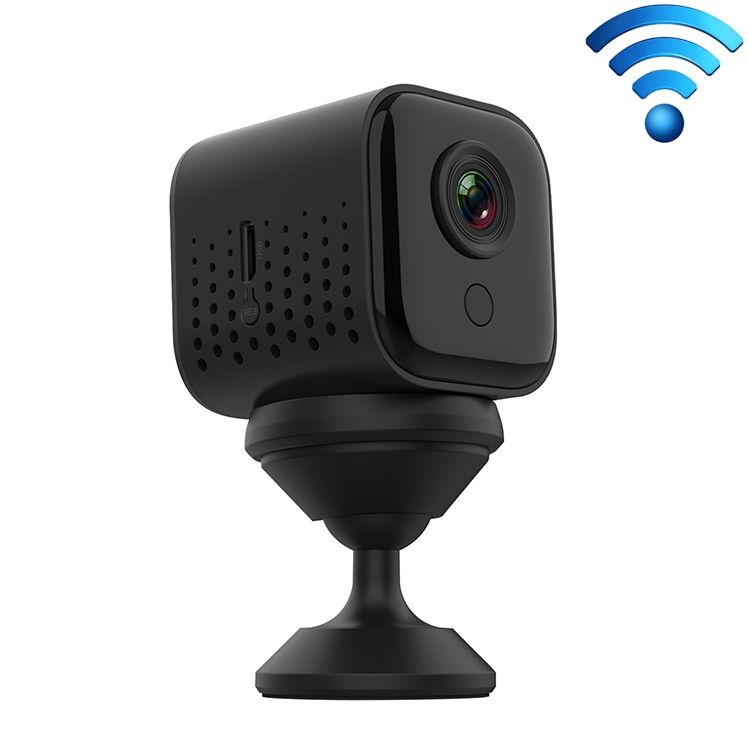

Model: W16
Power Supply: DC 5V 1.0A
Performance: Motion detection, Night Vision, Alarm detection
Memory: up to 128GB (not included)
Interface: Micro USB
Wireless: 2.4GHz
Wireless Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Image Sensor: CMOS
Lens: 120 Degree View Angle
Video Compression Format: H.264
Frame Rate (FPS): 30fps
Resolution: 1080P(1920*1080)
Main Stream: 1280 x 720
Sub Stream: 640 x 360
Video Format: AVI
Infrared Distance: 5m
System: Operating system: Embedded LINUX OS
Power consumption: <= 5W
Working Humidity: Less than 95 percent
Capacity: 1300mAh
Work Time: 300 minutes
Size: 39x35x37mm
Weight: 44.4g
Package Contents: 1 x Camera, 1 x Base, 1 x Power Cable, 1 x Color Package Box
Weight: 0.140kg
Size: 10cm x 10cm x 10cm
