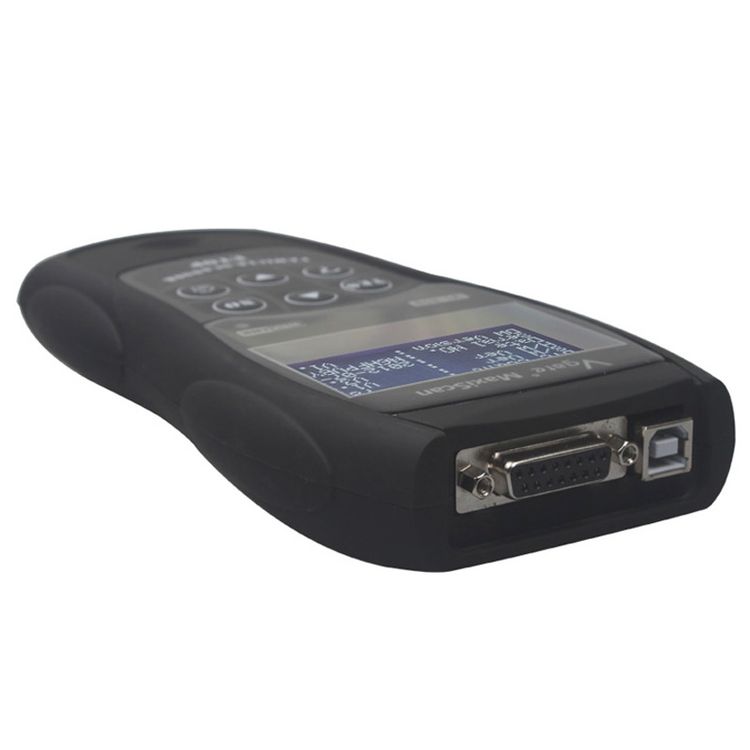

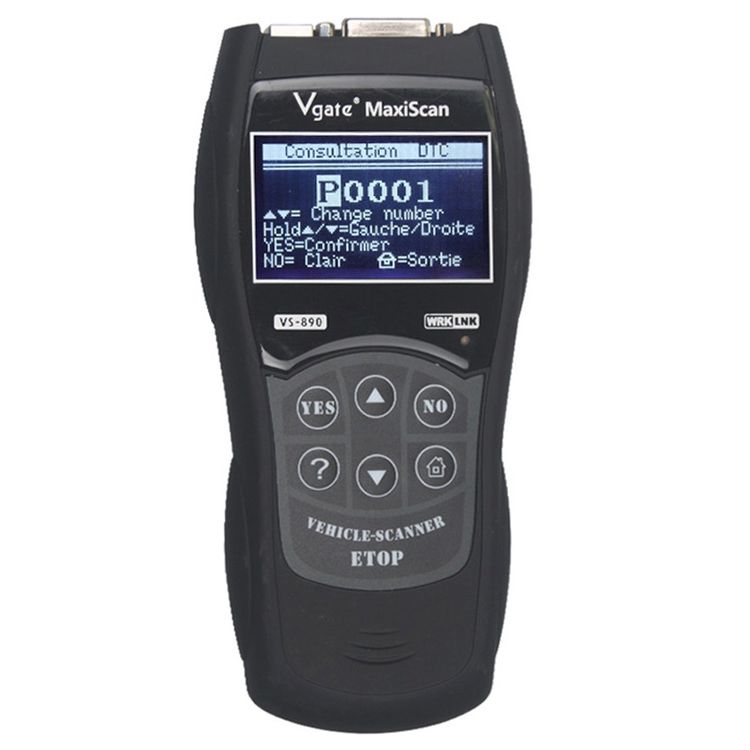

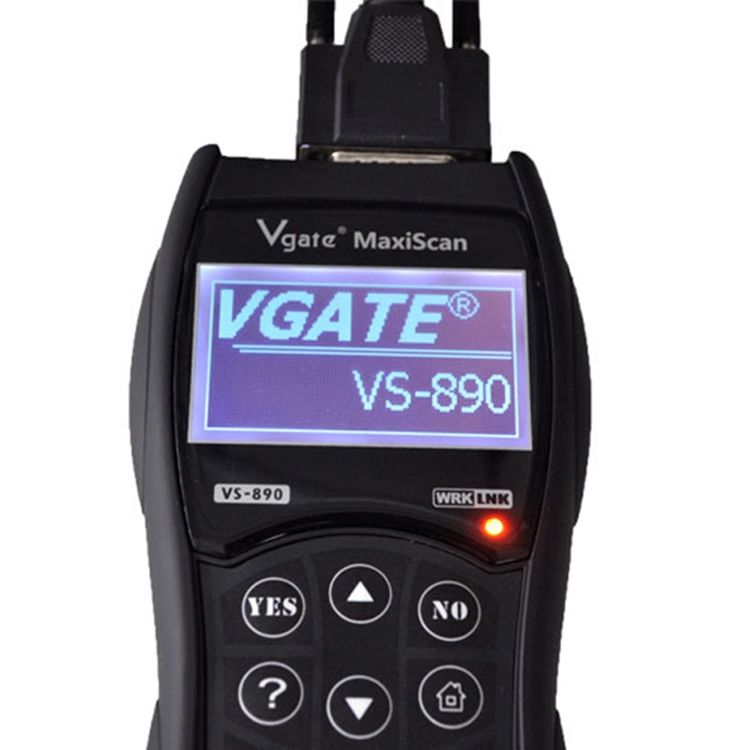

Vgate VS890 Professional Diagnostic Code Scanner Tool, Supported Multi Languages


R1091

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

About the product

1. Multi-language user interface, supports up to 13 languages
2. Application layer fully complies with ISO 15031 and is compliant with SAE J1979.
3. Fully functional Mode$01~Mode$09 operation.
4. Support a large number of vehicles made by 70 manufacturers.
5. DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2, U1 and C1,C2,) codes.
6. Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs,which shows the probable cause of the code.

Features

1. This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL.
2. LCD:3 inch black mask LCD, wide visible area, high contrast.The contents is readable even in strong sun shine.
3. ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.
4. Harmless fade-resistant paint.
5. Rubber oil sprayed housing; slide, dirty, and vibration proof.
6. Passed EMI/EMC test.
7. High quality PET 6-key film keypad.(3M harmless glue)
8. CE,FCC,RoHs Certified
9. Support manually input DTC Look-up
10. Read DTCs
11. Clear DTCs
12. Data stream
13. Freeze Frame
14. I/M Readiness
15. O2 Monitor Test
16. On-Board Mon Test
17. Component Test
18. Vehicle Info.
19. Modules Present
20. Unit of Measure
21. State Emission
22. Read All DTCs
23. Read Stored DTCs
24. Read Pending DTCs
25. Detailed help information
26. Capable of showing probable cause of a DTCs.
27. Up to 161 data items,each of them is with online help information.
28. Reset engine MIL

Supported Protocols

1. SAE J1850 PWM
2. SAE J1850 VPW
3. ISO9141
4. KWP FAST INIT
5. KWP 5BAUD INIT
6. CAN 11BIT 500K
7. CAN 29BIT 500K
8. CAN 11BIT 250K
9. CAN 29BIT 250K, CAN_USER1 11B 125K
10. CAN_USER1 29B 125K
11. CAN_USER2 11B 50K
12. CAN_USER2 29B 50K
13. Full CAN BUS support for new cars
14. 11 Bit and 29Bit CAN
15. Capable of communicating with multi-ECU System

Additional Information

General

Brand: VGATE
Model: VS890
Types: Code Scanner
Languages: Chinese, English, French, Portuguese, Spanish, German, Dutch, Italian, Hebrew, Finnish, Danish, Japanese
Material: ABS

Package Include

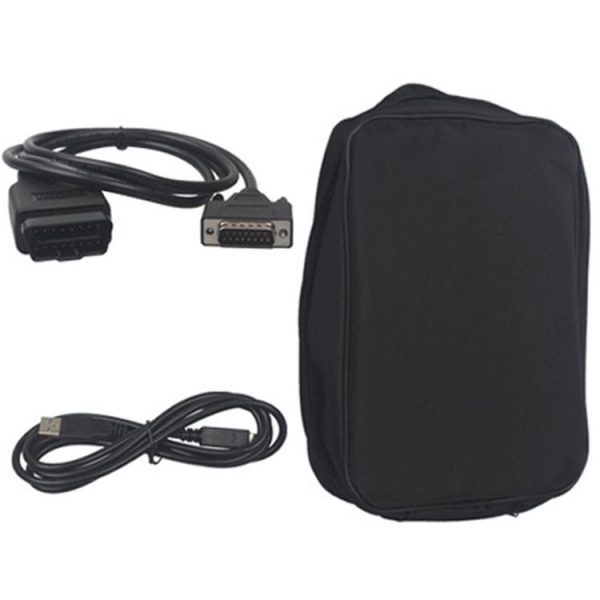

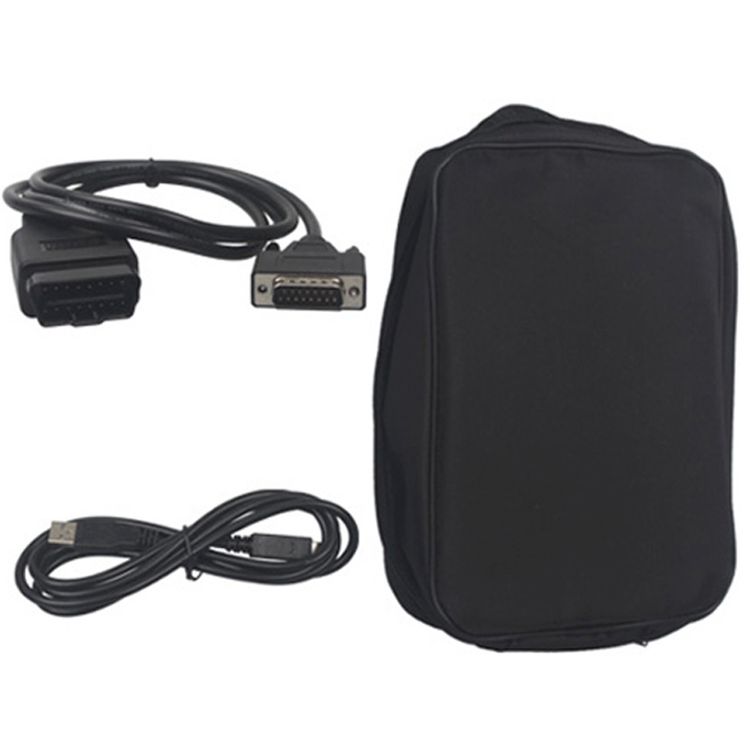

Package Contents: 1 x Main Unit, 1 x 120cm J1962 cable

Weight & Size

Weight: 0.697kg
Size: 26cm x 18cm x 7cm
