Overview

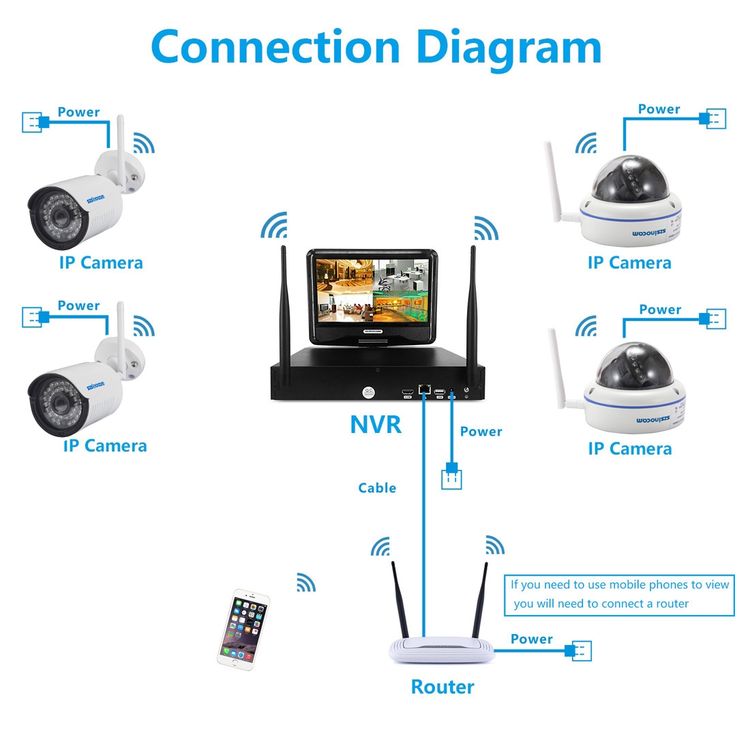

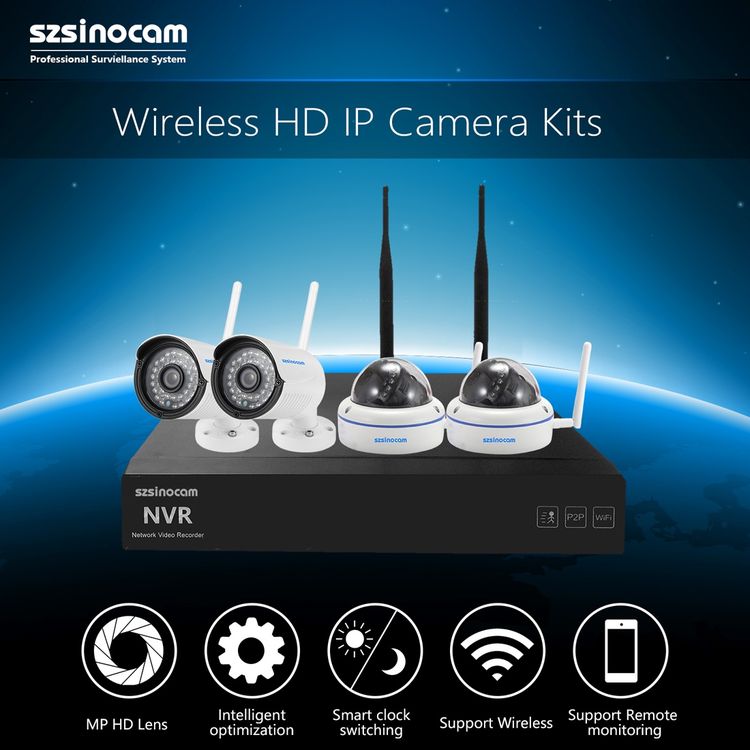

1. 4CH 720P 2.4GHZ full wireless kits, don’t need to set up the network, don’t need to set up the wireless, as long as the electricity, the image will automatically.The real fool-operation.
2. Support iPhone, Android.
3. Support motion detection, email alarm. etc.
4. Use for Use for Supermarkets, Hotels, Farm, Home, School, etc.
Using the latest development of 1/4 inch mega pixel progressive scan CMOS, with enhanced color filters and unique concentrator technology, under a variety of conditions even light environment, can also provide surprising megapixels high-definition, bright image. Applicable to the financial, telecommunications, government, schools, airports, factories, hotels, museums, traffic monitoring, real-time requirements Ultra HD quality places.
1. Video standard: 960P/(1280*960)/720P(1280*720) 0-25fps
2. Monitoring image quality: 960P/(1280*960)/720P(1280*720)
3. Recording playback quality: 4ch 720P playback
4. Region cover: Every channel can set cover regions
5. Operation way: Mouse
6. Local login: User name and password
7. Recording Storage: Local HDD, network
Additional Information
Model: SN-NVK-4007W10

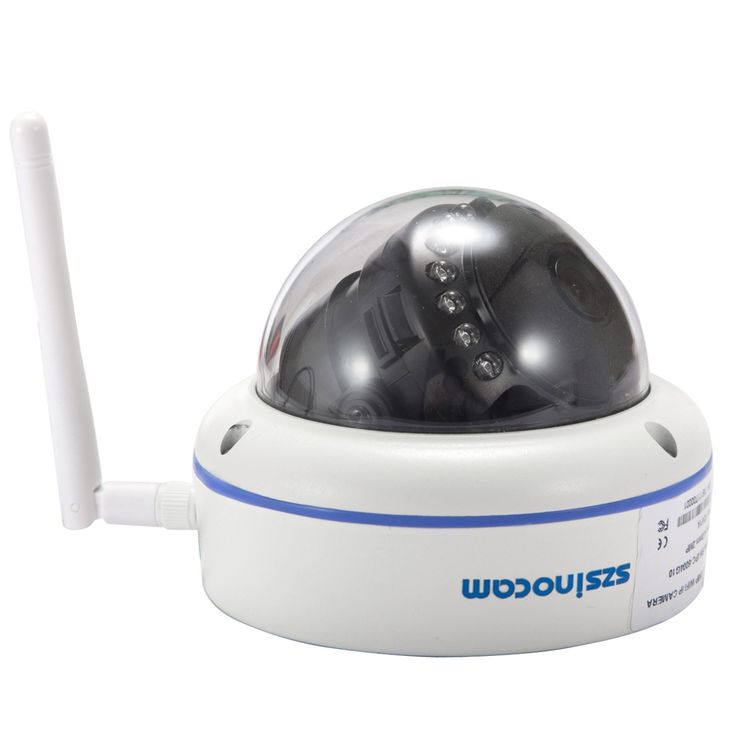

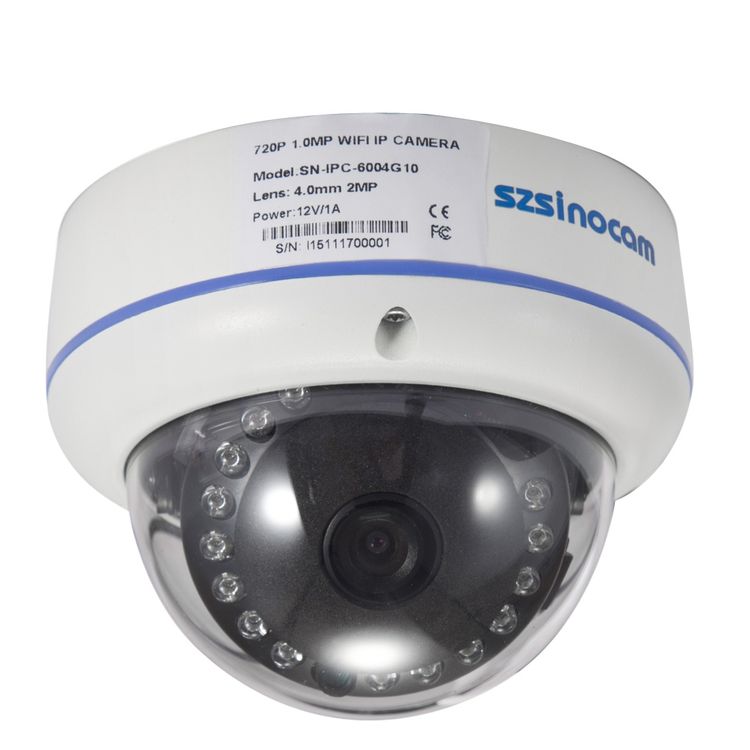

Shape: Dome
Mount Types: Ceiling Bracket
Power Depletion: <6W(Camera)
Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision
Interface: RJ45, VGA output, HDMI
Function: IP auto pop-out, Password protection, Intellectual alarm
Network Interface: RJ45 (Base-10/100MB)
Wireless: WiFi 802.11 b/g/n
Wireless Distance: 20-100m
Mobile Access: Android, iPhone OS, iPad
Alarm Notice: E-mail alerts, Alarm client
Pixels: 1.0MP
Lens: 4.0mm
Electronic Shutter: 1/25s-1/30,000s
Minimum Illumination: Color: 0.1Lux@F1.6, B/W: 0.08Lux@F1.2
Image Control: Saturation, Brightness, Contrast
Video Compression Format: H.264, M-JPEG
Video Bit rate: 0.1M-6Mbps, customized
Frame Rate (FPS): PAL: 1-25 frames/second, NTSC: 1-30 frames/second
Resolution: 1280*720
Infrared Distance: 15~25m
IR LED: 5mm 15pcs LED/5mm 36pcs LED
System: Operating system: Embedded LINUX OS
Dual Stream: Each channel can set main stream with 10.1 inch LCD
Recording: Recording mode: Manual, auto, dynamic detection, alarm trigger, Recording storage: HDD network, Backup mode: Support HDD, USB flash disk store & backup
Video: 960P/(1280*960)/720P(1280*720) 0-25fps

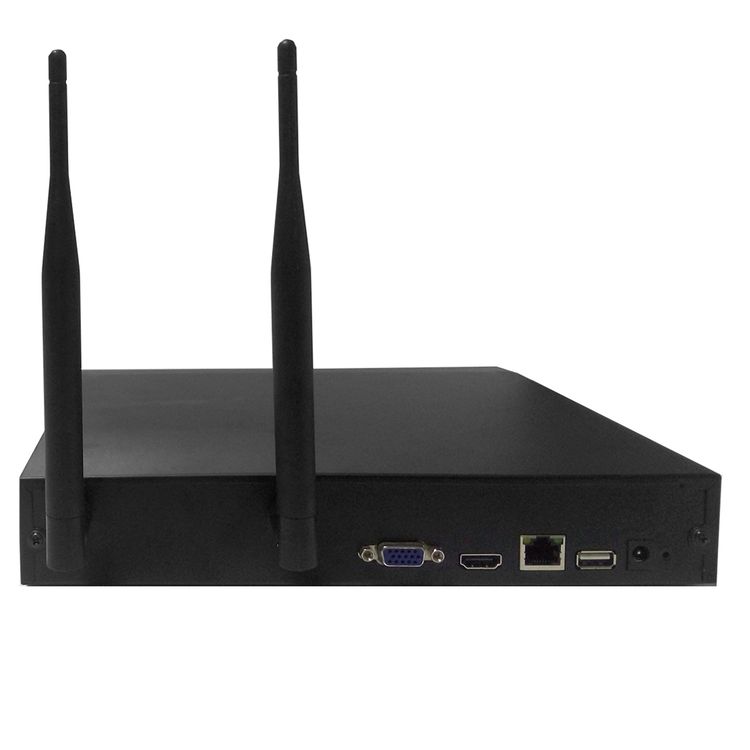

Video interface: Network video Input: 4ch, Video output: 1ch VGA and 1ch HDMI
Network: 1pcs RJ45,10M/100M
USB Port: 2pcs USB 2.0 ports
Wireless Port: WiFi
HDD: SATA HDD (not included), Max 4TB
Mobile Surveillance: Support (iPhone, Android)
Operation temperature: -10 to 55 Degree Celsius
Operation humidity: 10-90 percent
Power: DC 12V 3.0A
Power consumption: <= 25W(without HDD)
Environment: Outdoor, Indoor
Operate Temperature: -10 to 55 Degree Celsius
Working Humidity: 10 to 85 percent

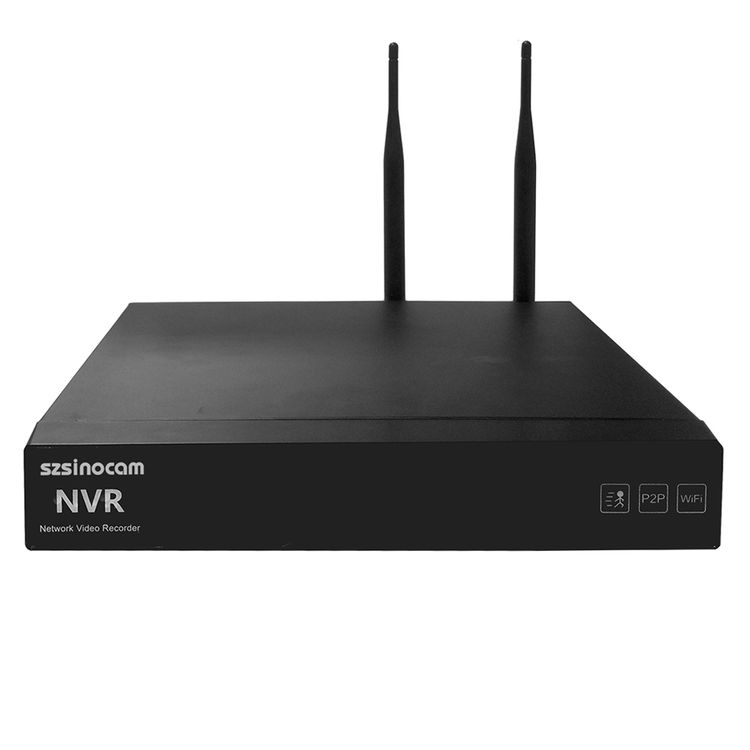

Size: 257mm*250mm*42mm (NVR)
Weight: 1.5kg (NVR)

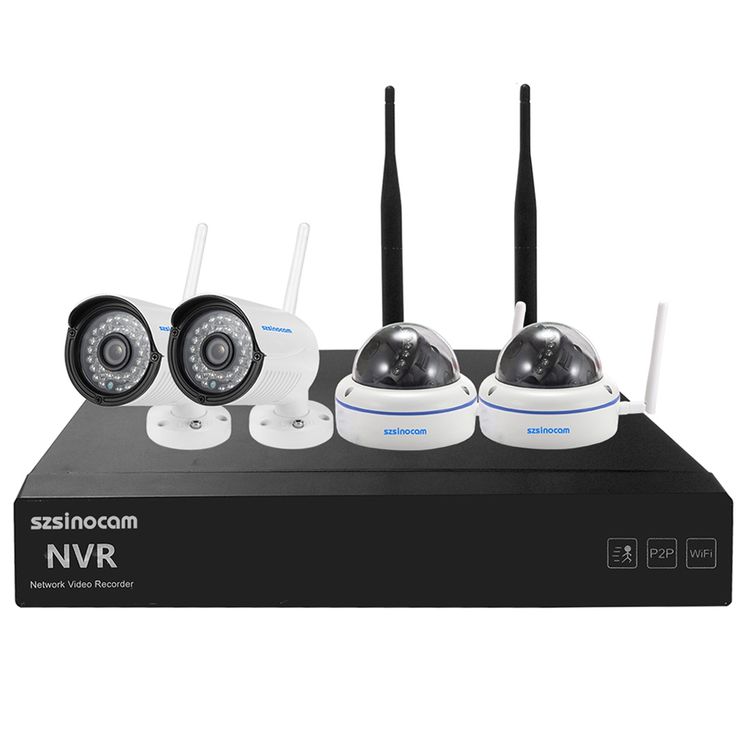

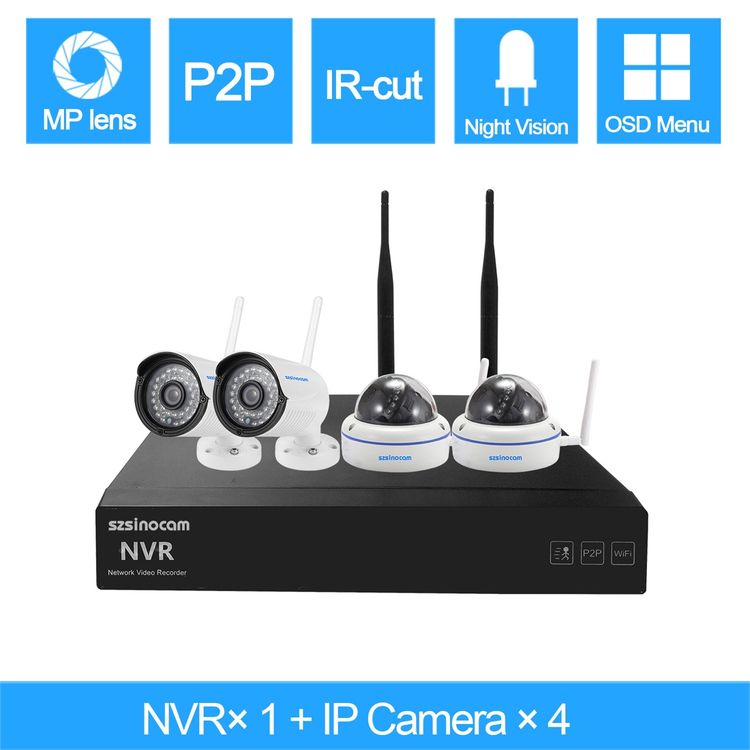

Package Contents: 4 x Cameras, 1 x NVR, 1 x CD, 4 x Power Chargers, 1 x Power Charger, 1 x Mouse
Weight: 4.400kg
Size: 40cm x 28cm x 20cm
