Overview
Using the latest development of mega pixel progressive scan CMOS, with enhanced color filters and unique concentrator technology, under a variety of conditions even light environment, can also provide surprising megapixels high-definition, bright image. Applicable to the financial, telecommunications, government, schools, airports, factories, hotels, museums, traffic monitoring, real-time requirements Ultra HD quality places.
1. 1/4 inch line scanning digital and advanced DSP technology
2. Picture resolution 720P color CMOS, 1.0 Mega Pixel, 1280×720
3. Optimized H.264 main profile compression algorithm, high compression ratio and high quality image; Convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; Support triple bit streams
4. The most advanced network delivery server technology, easily achieve more user access, multi-stage user password rights management

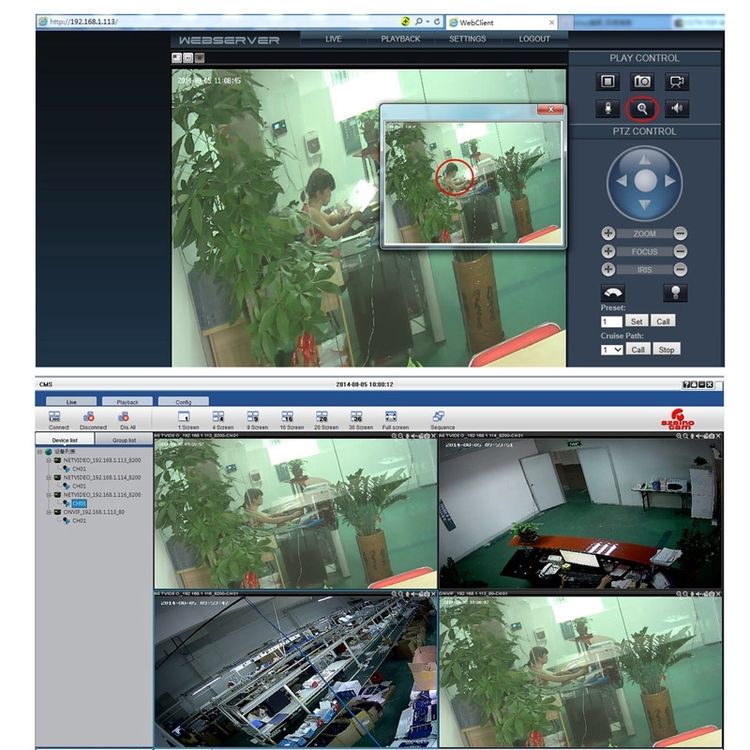

5. Built in web server, through the IE browser easy to realize the remote control settings prison see operation
6. Support facilities remote security upgrade function
7. Support DDNS, PPPoE and (UPnP), Lan, WAN transport, support onvif 2.3, P2P
8. Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network.
9. Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity).
10. Support mobile detection / image shielding / image snapshot
11. Functions of auto recovery in abnormality and auto reconnection in network breakdown
Additional Information
Model: SN-IPC-5029CSW

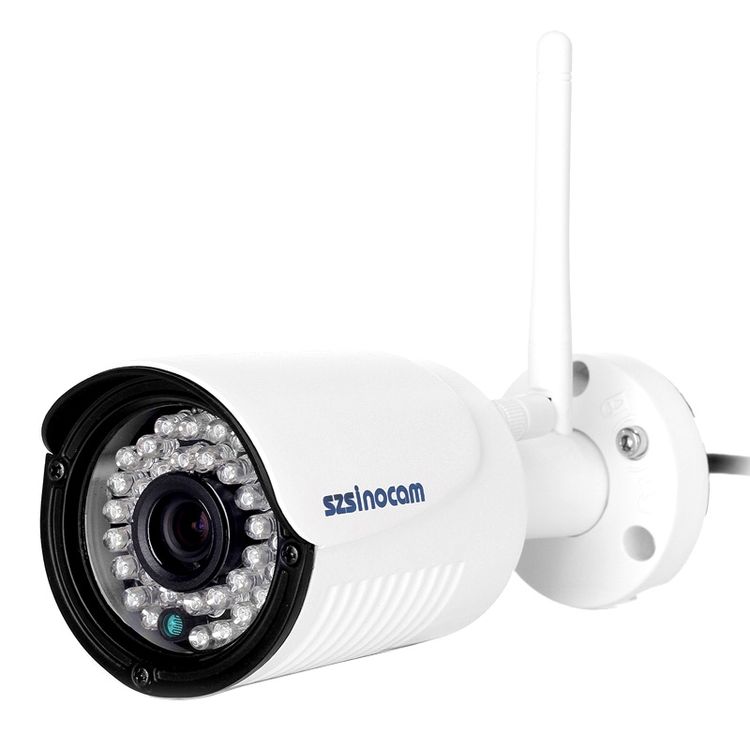

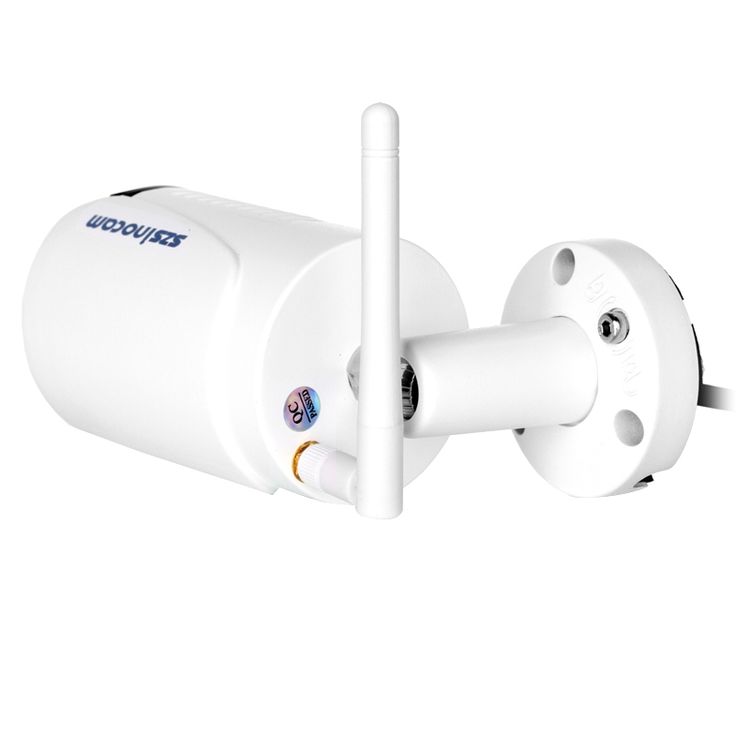

Shape: Bullet

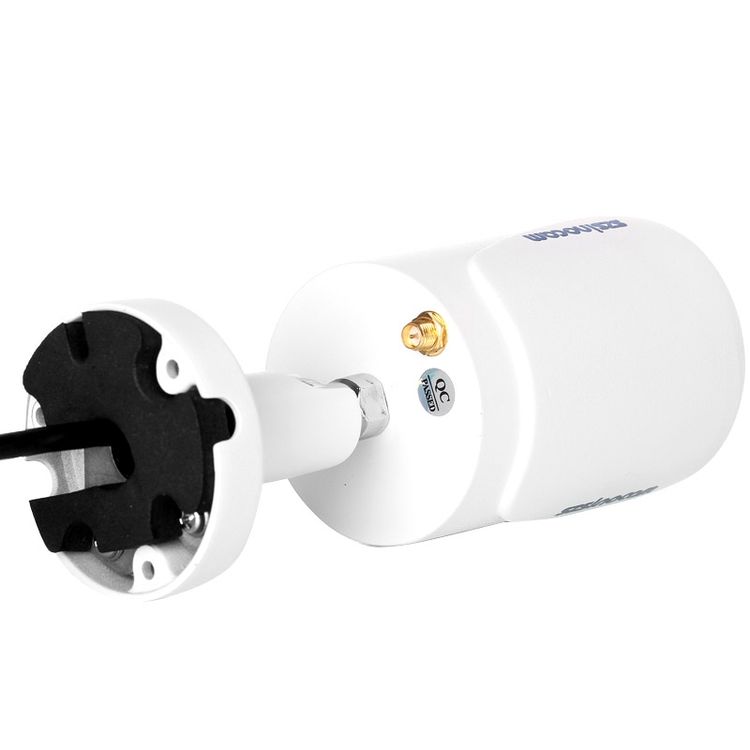

Mount Types: Wall bracket
Power Depletion: 6W
Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision
Alarm Detection: Video loss, Network disconnection, Screen shield
Interface: RJ45, DC Jack
Network Interface: RJ45 10/100MB Ethernet interface
Wireless Distance: 100m
Protocol: UPNP, PPPOE, P2P, ONVIF

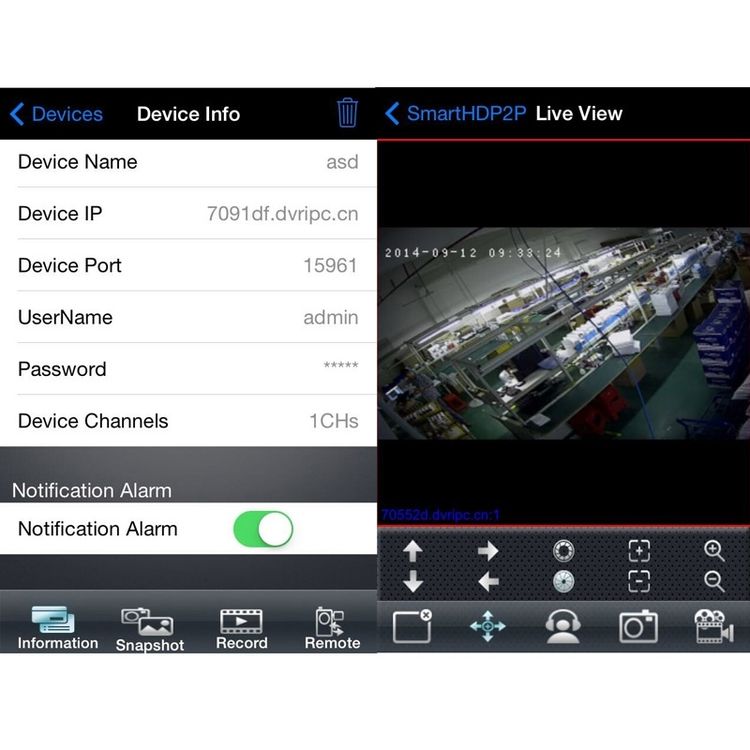

Mobile Access: Android, iPhone OS
Image Sensor: CMOS
Pixels: 1.0MP
Lens: 4.0mm
Minimum Illumination: Color: 0.1Lux@F1.6, B/W: 0.08Lux@F1.2
Image Control: Saturation, Brightness, Contrast
Video Compression Format: H.264, M-JPEG
Video Bit rate: 0.1M-6Mbps, customized
Audio Bit Rate: N/A
Frame Rate (FPS): PAL: 1-25 frames/second, NTSC: 1-30 frames/second
Resolution: 1280*720
Infrared Distance: 20-30m

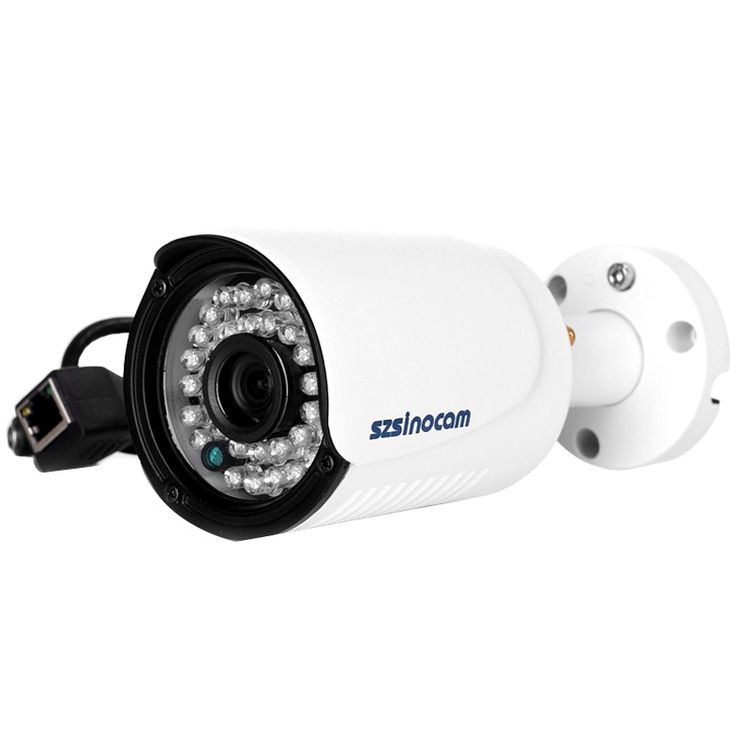

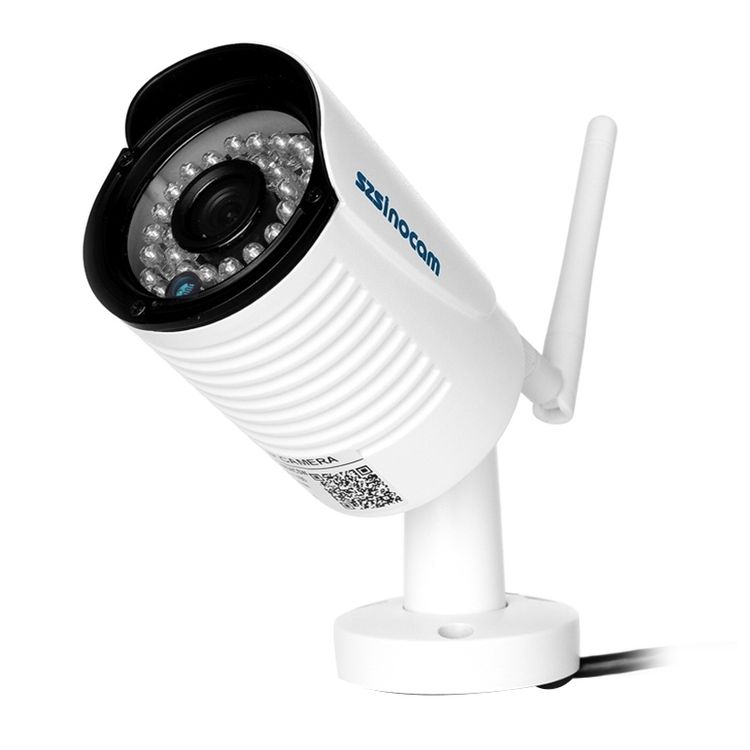

Configuration: 36 infrared LEDs
Environment: Outdoor, Indoor
Operate Temperature: -10 to 55 Degree Celsius
Working Humidity: 10 to 85 percent

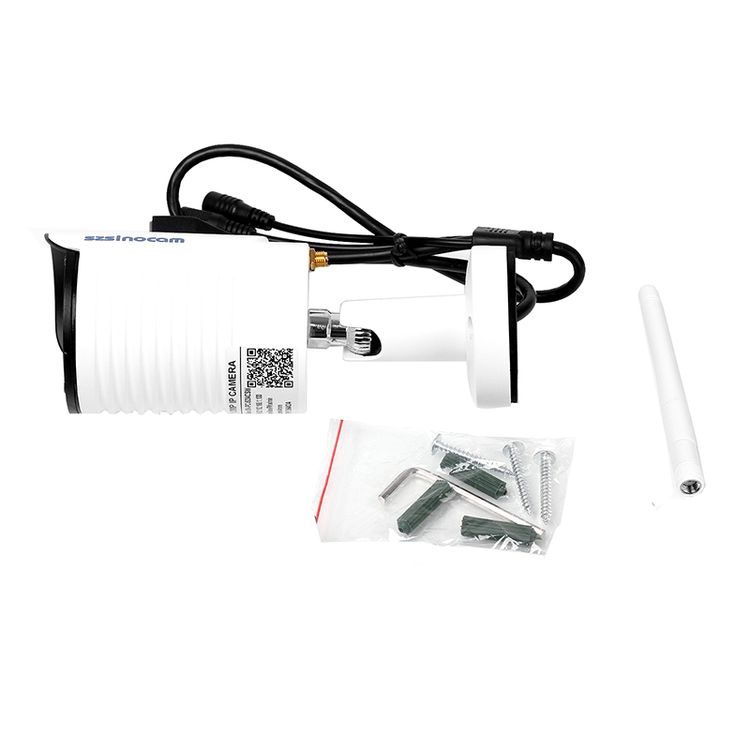

Package Contents: 1 x Camera, 1 x Mounting Accessories, 1 x Power Charger
Weight: 0.950kg
Size: 19cm x 10cm x 10cm
