Overview
1. Wireless network (Wi-Fi/802.11/b/g/n)
2. H.264 video compression

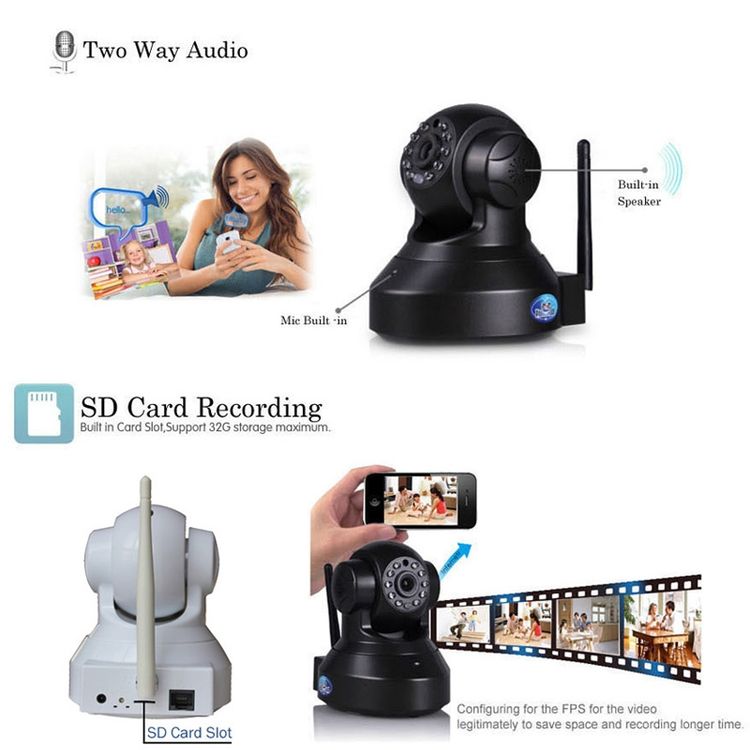

3. Support two-way audio function
4. 720P 1.0 megapixel IP camera

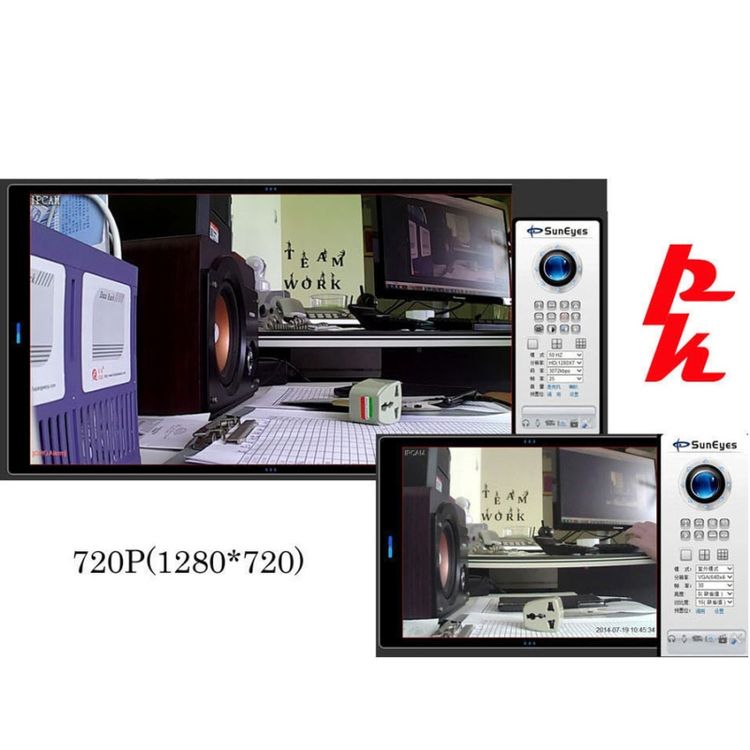

5. Resolution: Main stream: 720p(1280×720), 640 x 480(VGA), 320 x 240(QVGA)
6. Video frame rate: 1-30fps
7. IR night vision (Range: 10m)
8. Remote Pan/Tilt rotate (Horizontal: 355 degrees,Vertical: 90 degrees)
9. Super Client: 1, 4, 9, 16, 25, 36, 64, 81-channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email ect.
10. Support control P/T through IP network
11. Support image snapshot
12. Support P2P Plug and Play
13. Built-in 10M/100M auto MDI/MDIX Ethernet interface
14. Multi-level users management and passwords definition
15. Built-in Web server, supports remotely viewing and/or management the camera form a standard Web browser on any computer, anywhere, and at anytime
16. Supporting Dynamic IP (DDNS)and UPnP LAN and Internet(ADSL,Cable Modern)
17. Giving alarm in cause of motion detection
18. Support multiple network
19. Operation system: Embedded Linux OS
20. View by phone: Support HD pic iOS, Android mobile view (iOS 4.3, Android OS 2.3 above)
21. Online visitor: Support 4 visitors at the same time
22. DDNS: Free DDNS
23. Dual Filter, IR-Cut
24. Preset postion: Support up to 15 preset postions
25. Plug & Play, 99% penetration rate, Easy to setup: A. Connect the network cable and power adapter. B.Install APP, scan UID code to add camera. C. Click online camera to view the camera.
26. Monitor advantage: Support PC computer monitoring, smartphone multi-pic view
27. Control protocol: ONVIF 2.0 protocol, high interoperability
28. Video coding multi stream: 720P@30fps + VGA@30fps + QVGA@30fps + 720P @1fs JPEG capture
29. Processor: Hi processor, built in ARM926@ Max. 440MHz and high-speed video co-processor
30. IR turned on: night vision view enabled, infrared ray, ICR auto detect.
31. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
Additional Information

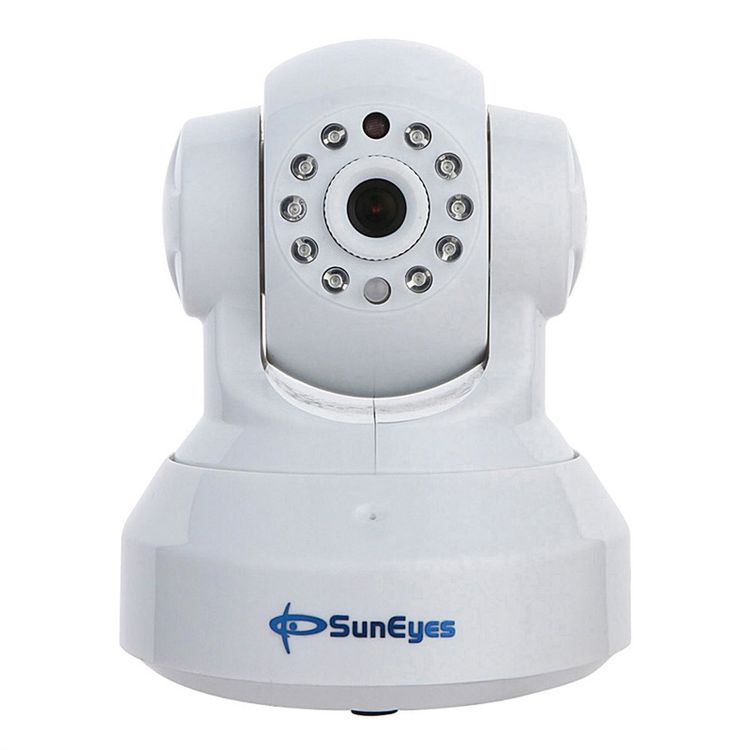

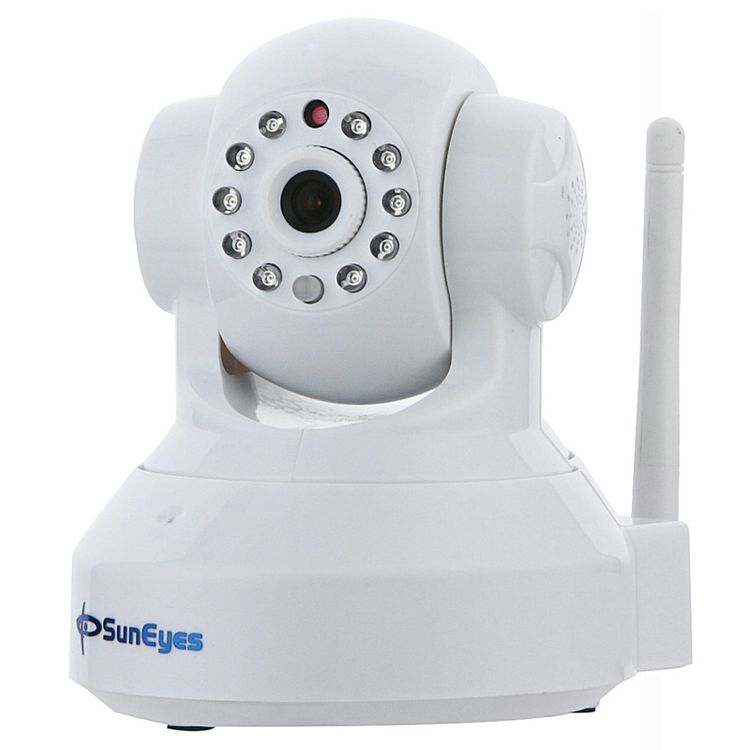

Model: TM01EWP
Shape: Dome

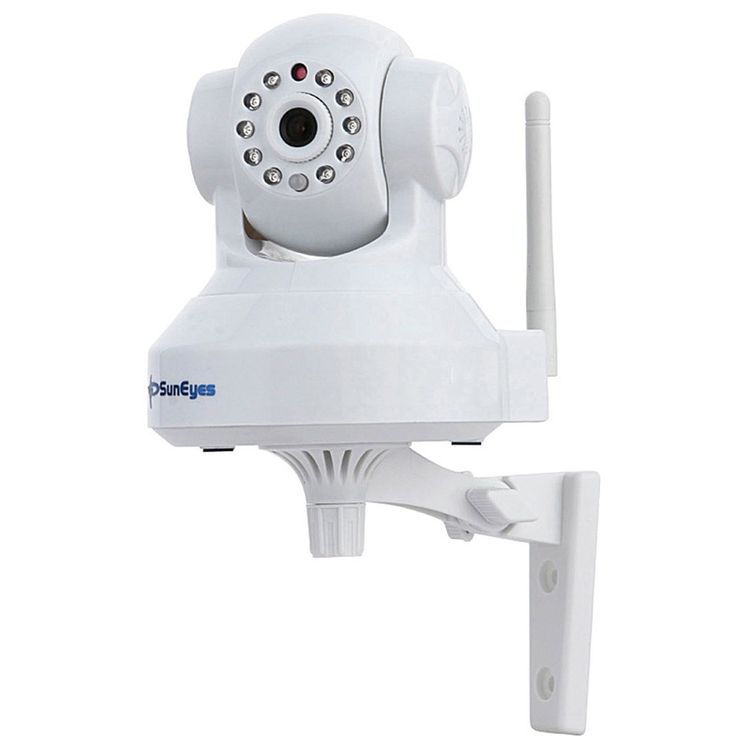

Mount Types: Wall bracket, Ceiling Bracket
Power Depletion: 3.5W (IR Opening), 7W (P/T Working)
Power Supply: DC5V +-0.3V
Performance: Motion detection, Night Vision
Memory: TF Card, up to 32GB (not included)
Language: Chinese, English, Polish, German, Russian, Portuguese, Spanish, Italian

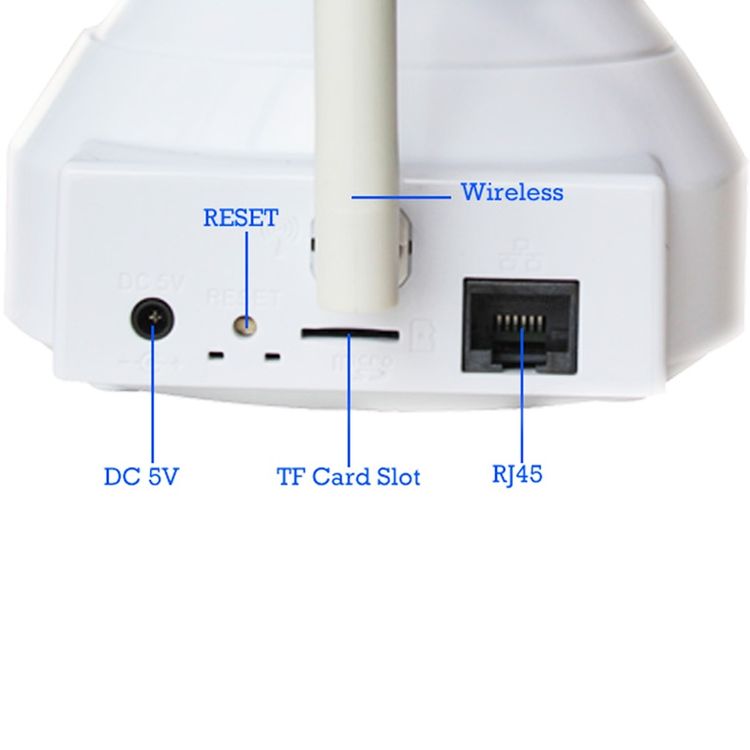

Interface: RJ45, TF card slot, DC Jack
Voice Output: 1 Channel Line out (3.5mm phone jack) & Internal speaker (8ohm 1W)
Network Interface: RJ45 10/100MB Ethernet interface
Wireless: WiFi 802.11 b/g/n
Protocol: DDNS, NTP, SMTP, UPNP, TCP, DHCP, FTP, RTSP, HTTP, DNS, P2P, TCP/IP
Online Visitor (Max.): 4
IP Address: Dynamic IP and static IP address
Wireless Security: WEP encryption
Mobile Access: Android, iPhone OS
Image Sensor: CMOS
Sensor Size: 1/4 inch Progressive Scan
Pixels: 1.0MP
Lens: 3.6mm, 56.14 Degree View Angle
Pan/Tilt-Horizontal Angle: 355 degrees
Pan/Tilt-Vertical Angle: 90 degree
SNR: >= 39db
Minimum Illumination: 0.8Lux/F1.4 (Colourful Model), 0.3Lux/F1 (B&W Mode)
Image Control: Saturation, Brightness, Contrast
Video Compression Format: H.264, M-JPEG
Audio Compression Format: ADPCM/32kbps
Video Bit rate: CBR/VBR, output bit rate range: 128-4096kbps
Frame Rate (FPS): 30fps/24fps (720p), 1-30fps
Resolution: 1280*720, VGA, QVGA
Infrared Distance: 10m
IR LED: 10pcs 850nm 5mm LEDs
Environment: Indoor
Operate Temperature: -10 to 50 Degree Celsius
Weight: 260g

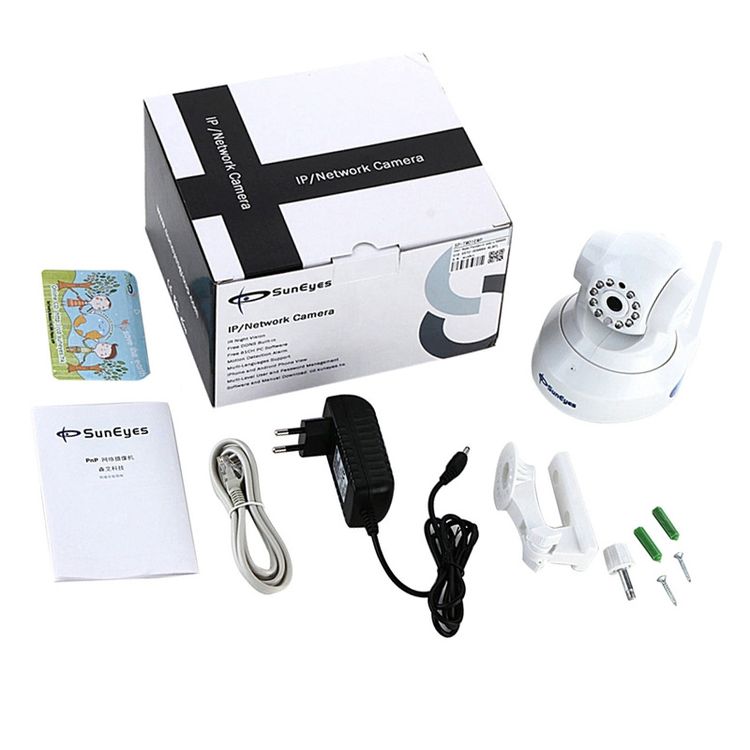

Package Contents: 1 x Camera, 1 x Mounting Accessories, 1 x CD, 1 x Bracket, 1 x User Manual, 1 x Power Charger
Weight: 0.812kg

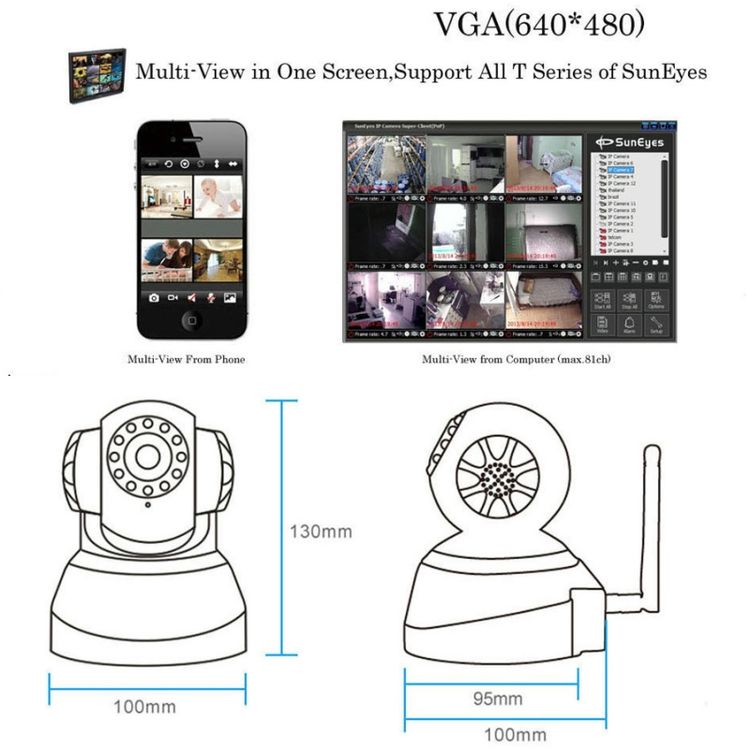

Size: 22cm x 14cm x 12cm
