Overview
1. 1/4″ Progressive Scan CMOS OV9712
2. 1280H*720W, Pixels 1.0MP
3. Wireless Wifi802.11b/g/n

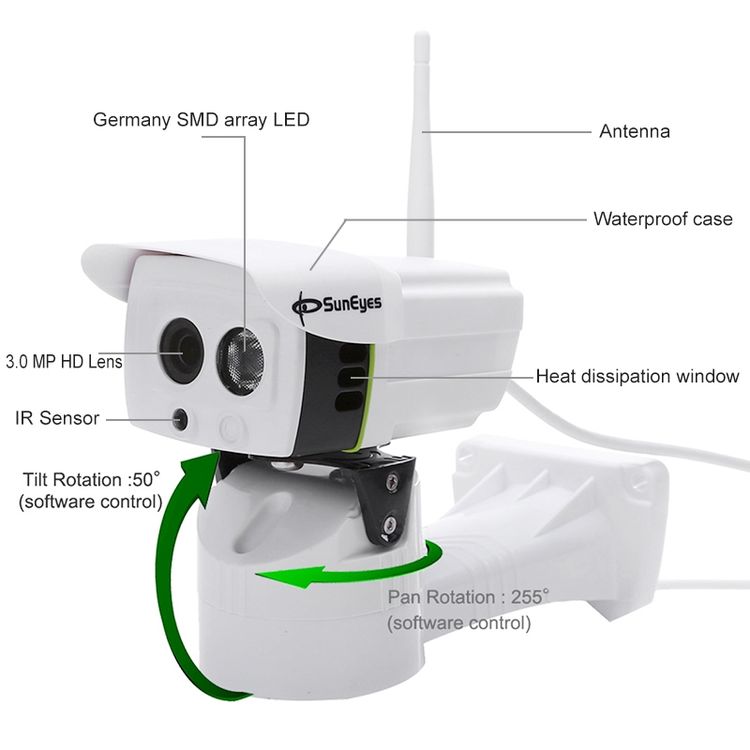

4. Support Pan/Tilt(Pan Rotation: 255 Degree Tilt: 60 Degree, Software Control)
5. Professional design, aluminum alloy Case, outdoor Use
6. Innovative patented heat dissipation structure work temperature -40 celsius degree – 60 celsius degree
7. Dual stream encoding H.264 compression mode
8. Waterproof Outdoor Standard IP66
9. High-power Germany SMD Array IR LED+ Finland LEDIL light lens
10. 3.6mm 3.0MP Fixed lens
11. RTSP Stream: rtsp:/192.168.1.228/554/11 (change the 192.168.1.228 to your cam ip)

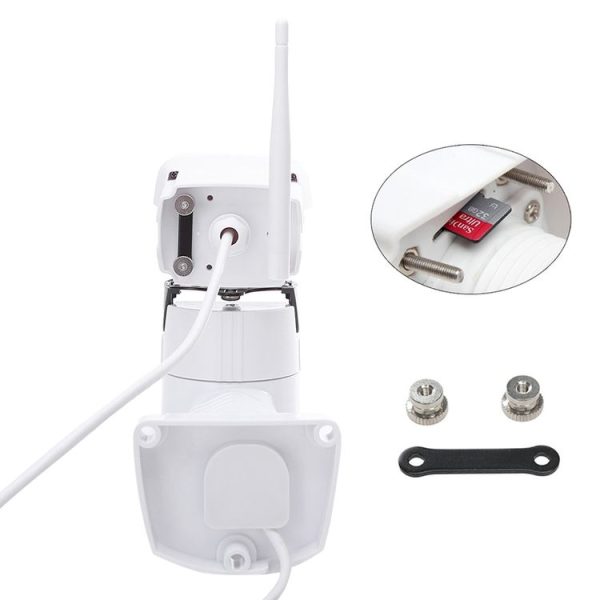

12. With Max 32G Micro SD/TF Card Slot
13. FTP upload Pics and Video When Motion Detection (need add sd card into the camera)

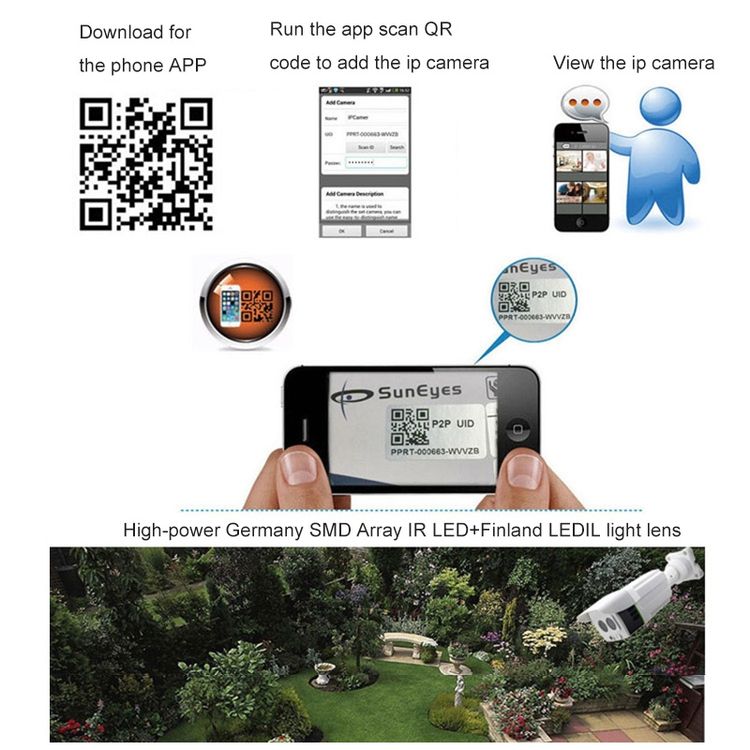

14. IPhone and Android(free app)

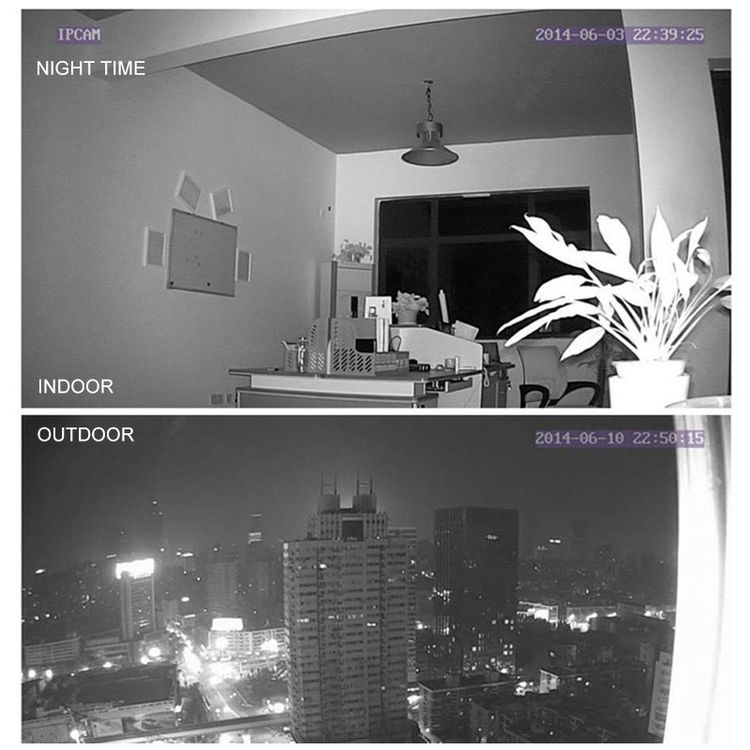

15. IR-CUT(no color cast at daytime, more clear at ngiht)
16. Free CMS Software
17. Support Onvif 2.2 version
18. Bracket & Power Supply Including
19. Support SunEyes NVR

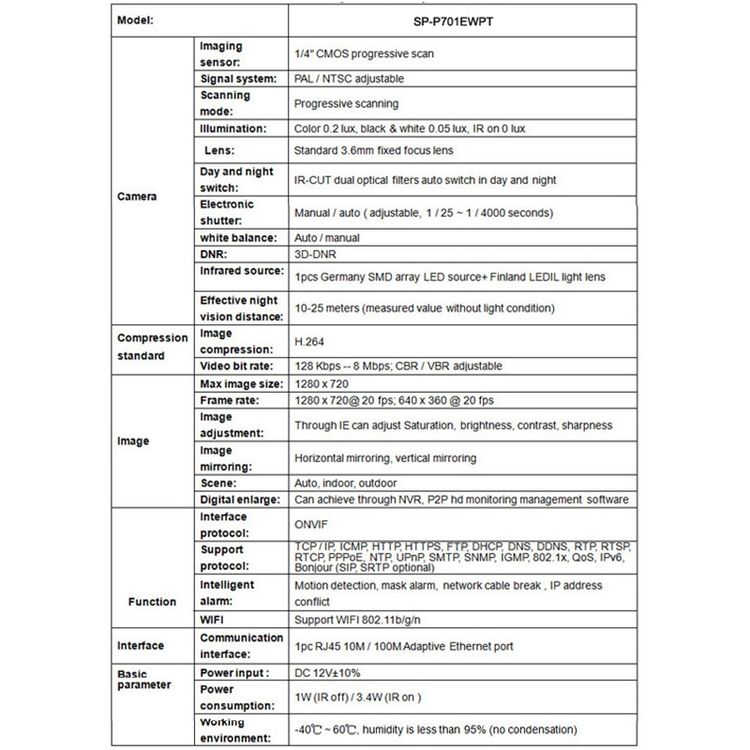

Additional Information
Mount Types: Wall bracket
Power Depletion: 1W (IR off) / 5.5W (IR on)
Power Supply: DC 12V
Performance: Motion detection, Mask Alarm, Network cable break, IP address conflict, Storage card is full, Storage device is wrong
Memory: TF Card, up to 32GB (not included)
Language: Chinese, English

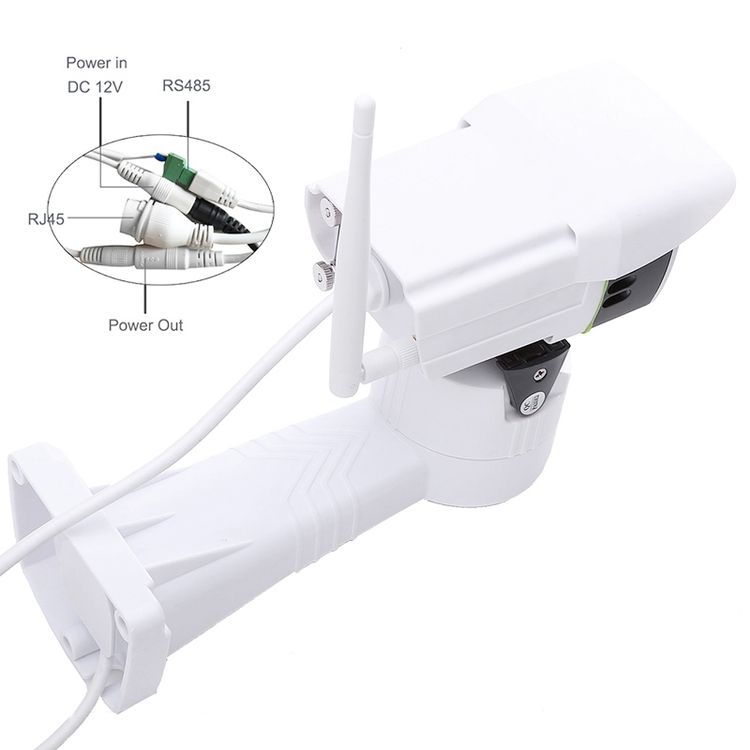

Interface: RJ45, TF card slot, RS485
DNR: 3D-DNR
Network Interface: RJ45 10/100MB Ethernet interface
Wireless: WiFi 802.11 b/g/n
Protocol: DDNS, NTP, HTTPS, IGMP, SMTP, ICMP, UPNP, SNMP, PPPOE, FTP, RTP, RTSP, HTTP, DNS, NFS, P2P, TCP/IP, ONVIF
Mobile Access: Android, iPhone OS
Image Sensor: CMOS
Pixels: 1.0MP
Lens: 3.6mm
Pan/Tilt-Horizontal Angle: 255 degree
Pan/Tilt-Vertical Angle: 50 degree
Minimum Illumination: 0Lux(IR on)
White Balance: Auto, Manual
Image Control: Saturation, Brightness, Contrast, Sharpness Adjustment
Exposure Control: Automatic, Manual
Video Compression Format: H.264
Audio Compression Format: G.726, G.711
Frame Rate (FPS): Sub stream: 640×360@1-25fps, Main stream: 1280×720@1-25fps
Resolution: 1280*720
Environment: Outdoor, Indoor
Ingress Protection: IP66
Operate Temperature: -40 to 60 Degree Celsius
Working Humidity: 10 to 95 percent

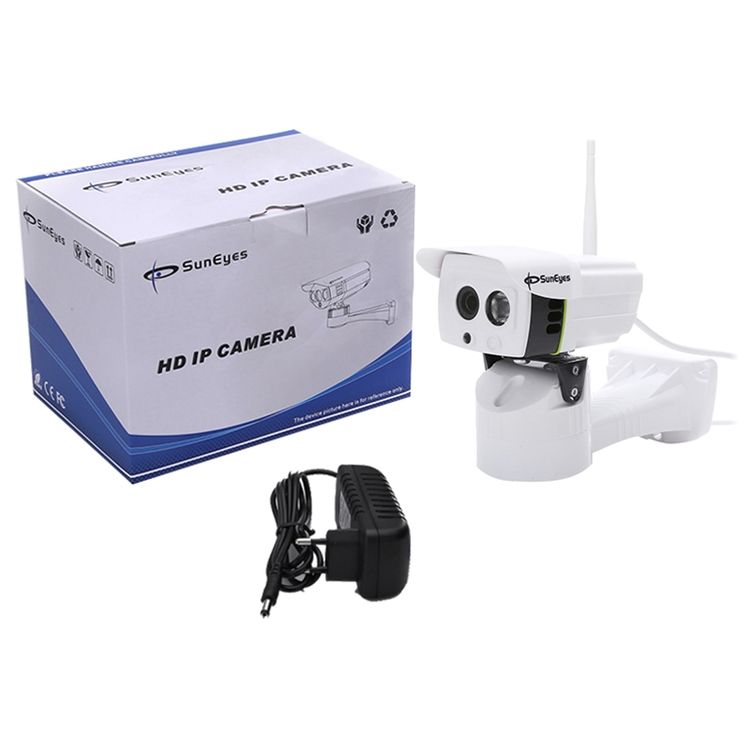

Package Contents: 1 x Camera, 1 x Power Charger
Weight: 0.984kg
Size: 24cm x 21cm x 14cm
