Overview
feature:

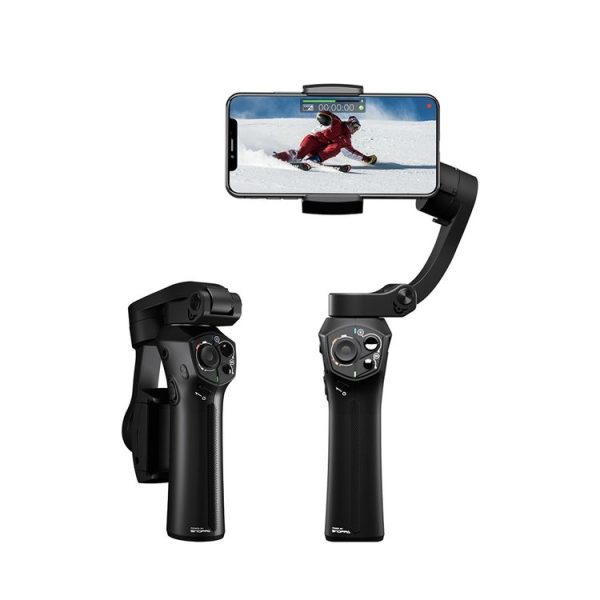

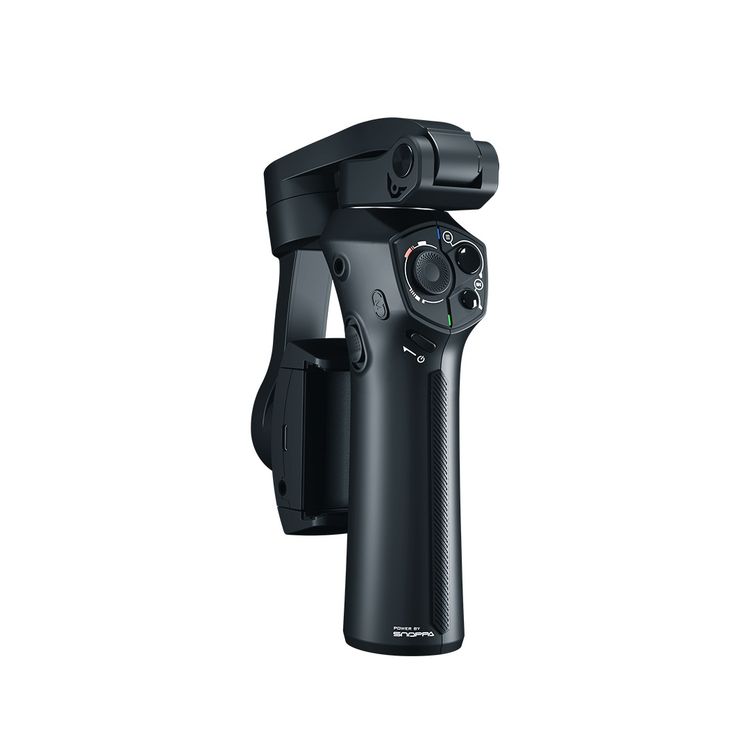

1. Foldable, portable and more intimate.
With a foldable structure, the size of the PTZ is reduced by more than half. ATOM’s unique non-orthogonal structure, the side motor will no longer hit the bottom of the phone, leaving a lot of room for movement.

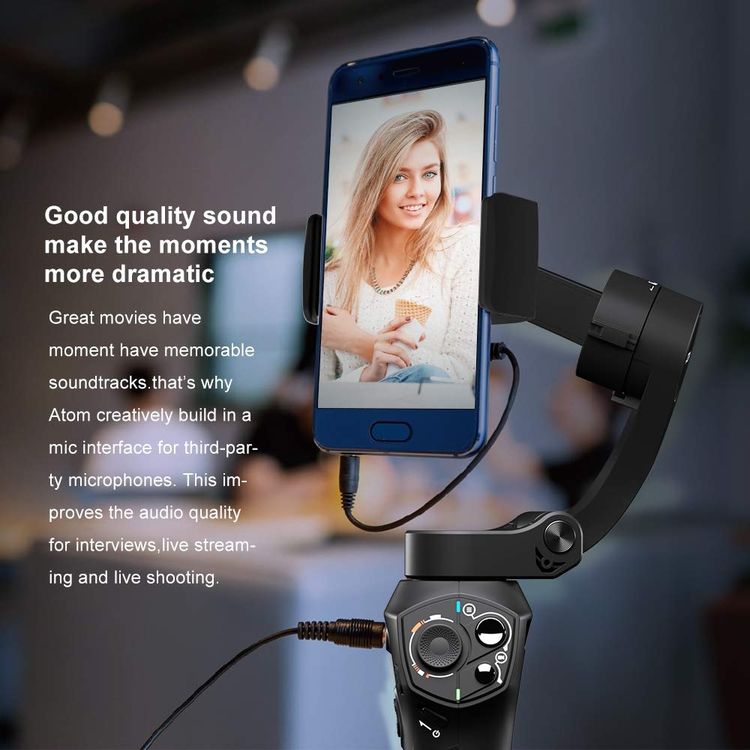

2. An external third-party microphone can be connected.
When shooting video, there are also high requirements for live sound, such as news interviews, live broadcasts, first-person recording, etc. ATOM’s external microphone function allows you to no longer be limited to the integrated microphone of your mobile phone.

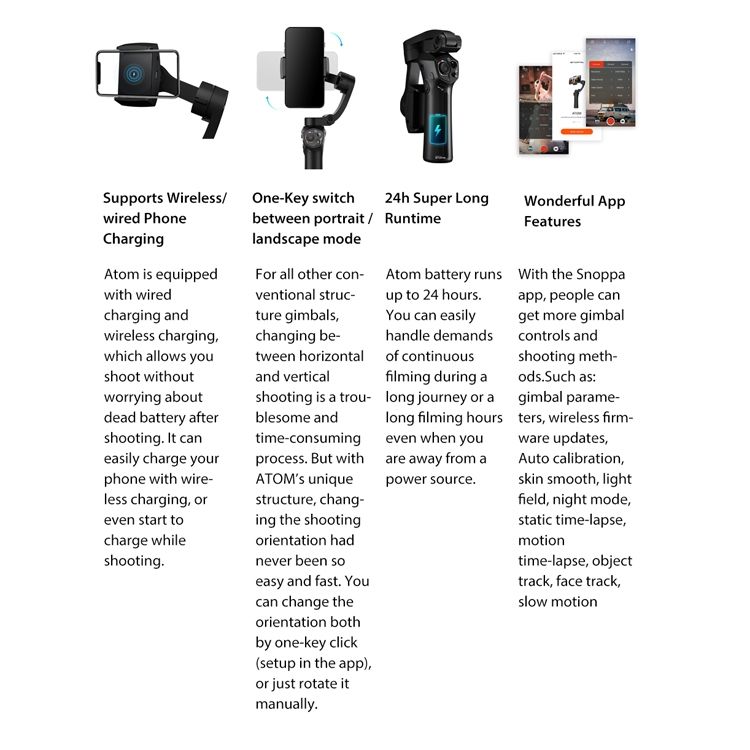

3. Long battery life and mobile phone charging function.
Atom’s wireless charging function can quickly and easily charge wirelessly powered mobile phones. If your phone does not support wireless charging, it also has the same line charging function.

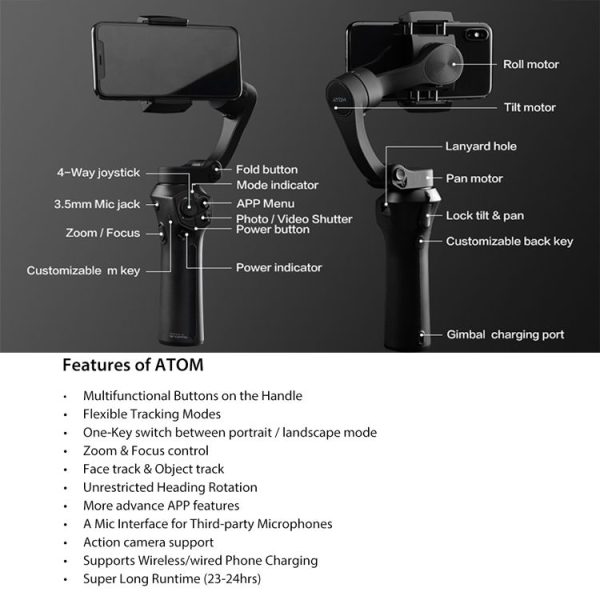

4. Rich handle buttons.
The handle of ATOM contains a rich set of buttons, which you can use to control the functions of PTZ and snoop applications. It is more convenient to control the shooting with the handle
5. Small but powerful.
ATOM weighs only 440 grams (15.5 ounces), so your arms will not feel tired even after shooting. Thanks to ATOM’s unique structure, ATOM can reach a high load of 310 grams
specification:
1. Working voltage: 7.4V
2. Working current: 90mA (balanced state of center of gravity)
3. Working temperature: -10-45 degrees Celsius
4. Dimensions: (width x depth x height) unfolded: 123 x 73 x 297 (mm)
5. Folding: 50 x 106 x 178(mm)
6. Weight: 440g
7. Mechanical rotation range of tilt axis: 330 degrees
8. Rolling axis mechanical rotation range: 330 degrees
9. Horizontal axis mechanical rotation range: 360 degrees
10. Static attitude tracking error: +/-0.05
11. Motion posture tracking error: +/-0.2
12. Mobile phone width range: 55-90mm
13. Mobile phone thickness range: less than or equal to 9mm
14. Load: 310 grams
15. Microphone jack type: 3.5 mm TRRS
16. Battery type: Lithium-ion battery
17. Battery capacity: 2000 mAh
18. Charging time: 3 hours (charging power 10w)
19. Working hours: 24 hours
Package Contents:
1x gimbal
1x PTZ charging cable
1×8 Pin data cable
1xType C data cable
1 x3.5 audio cable
1x handbag
Additional Information
Weight: 0.504kg
Size: 22cm x 18cm x 20cm
