Overview
Descriptions:

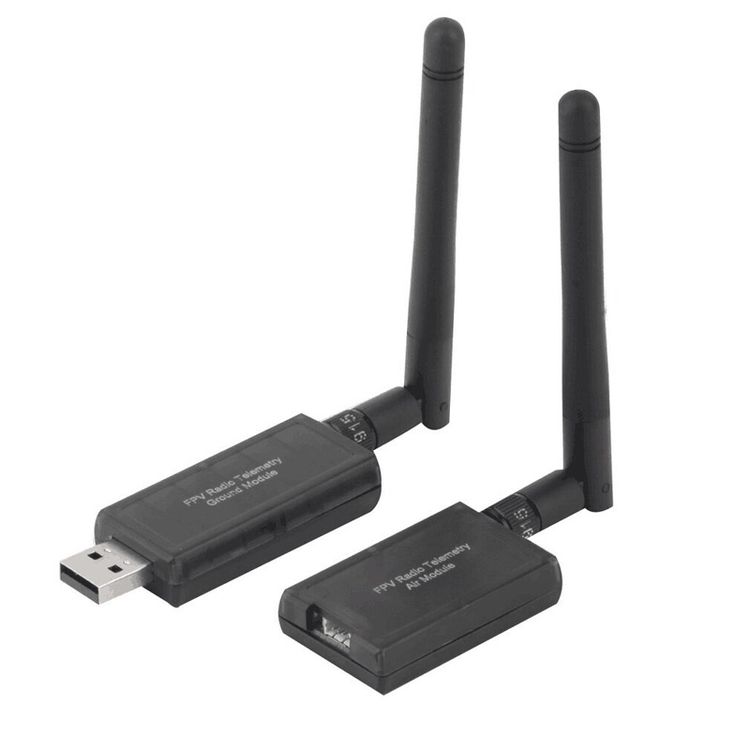

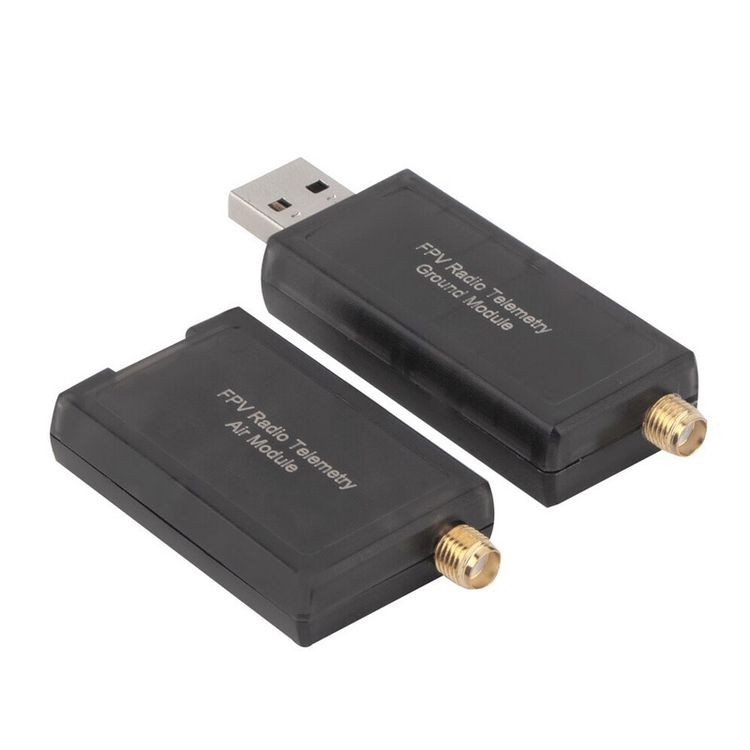

1. The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. It’s available in 433Mhz; and in the following configurations: serial board (for the air) and USB (for the ground).
2. The radio is a 2-way half-duplex wireless communication system with a standard TTL UART interface, based on HopeRF’s HM-TRP data link modules, and custom firmware that improves upon the modules’ original features and performance.
3. The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and radio firmware with configurable parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through AT commands.
3DR Telemetry Kit Specifications
1. Very small size
2. Light weight (under 4 grams without antenna)
3. 433-434.79MHz
4. Receiver sensitivity to -121 dBm
5. Transmit power up to 20dBm (100mW)
6. Transparent serial link
7. Air data rates up to 250kbps
8. MAVLink protocol framing and status reporting
9. Frequency hopping spread spectrum (FHSS)
10. Adaptive time division multiplexing (TDM)
11. Support for LBT and AFA
12. Configurable duty cycle
13. Built in error correcting code (can correct up to 25% data bit errors)
14. Demonstrated range of several kilometers with a small omni antenna
15. Can be used with a bi-directional amplifier for even more range
16. Open source firmware
17. AT commands for radio configuration
18. RT commands for remote radio configuration
19. Adaptive flow control when used with APM

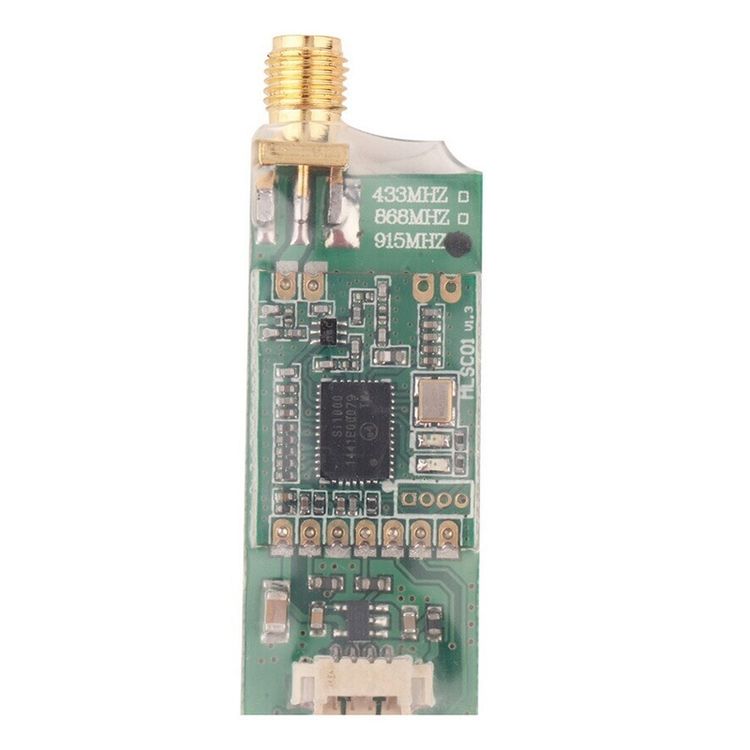

20. Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module

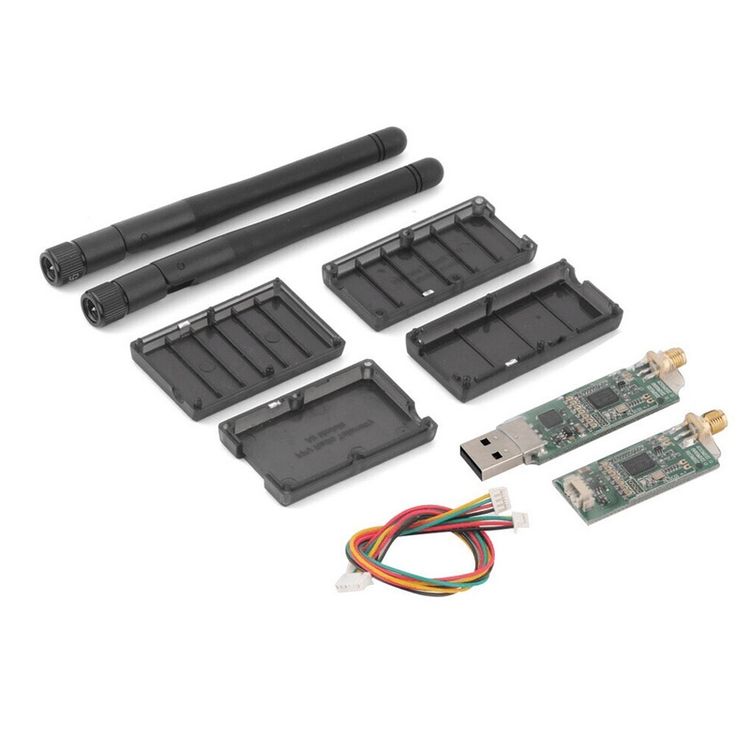

Package includes:
2 x Antennas

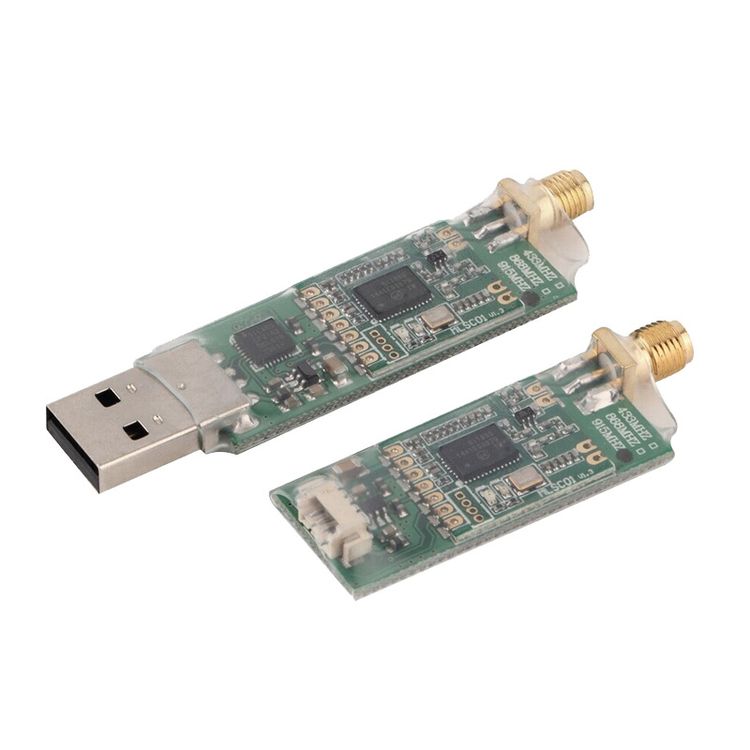

1 x Radio telemetry base station (USB connection)

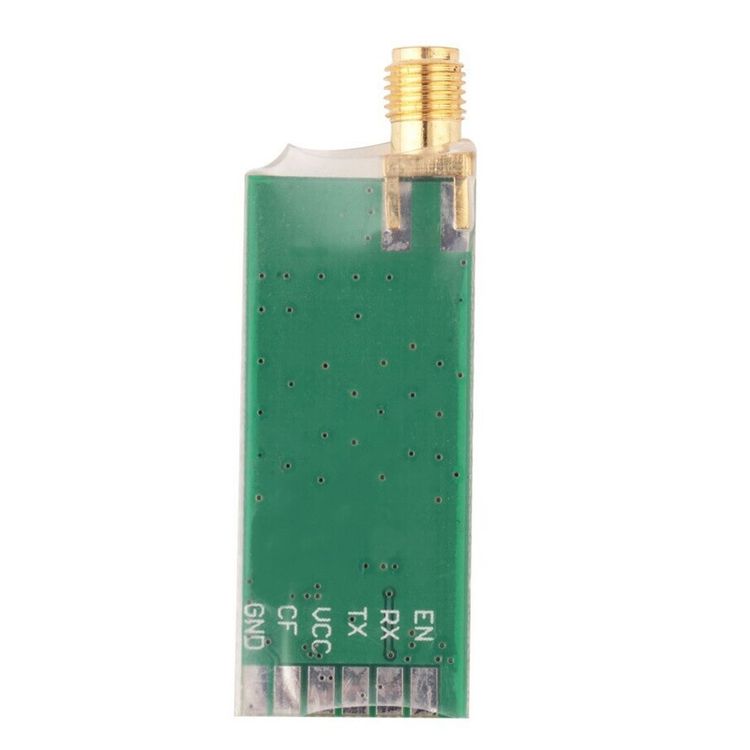

1 x Telemetry transceiver (Pin header)
2 x Cables
1 x Connector
2 x Green modules
Additional Information
Weight: 0.105kg
Size: 23cm x 16cm x 1cm
