Overview

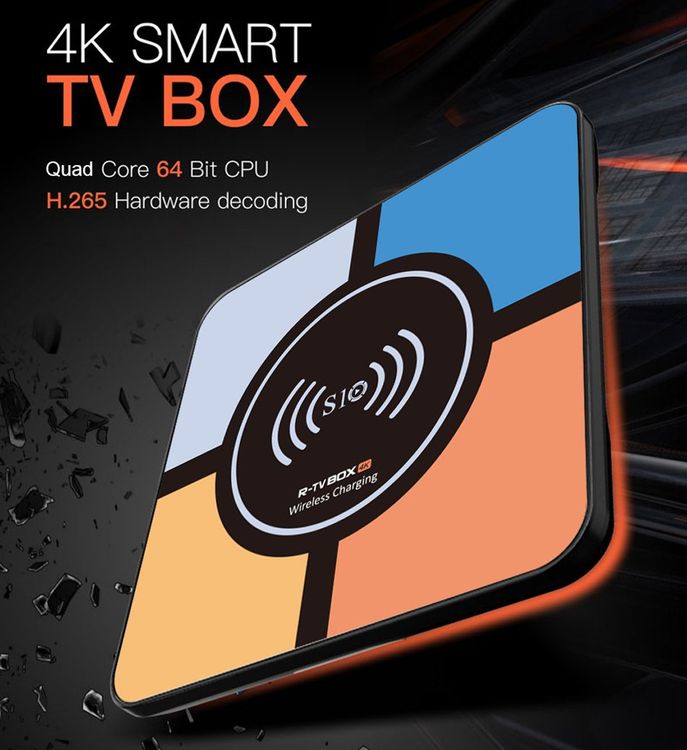

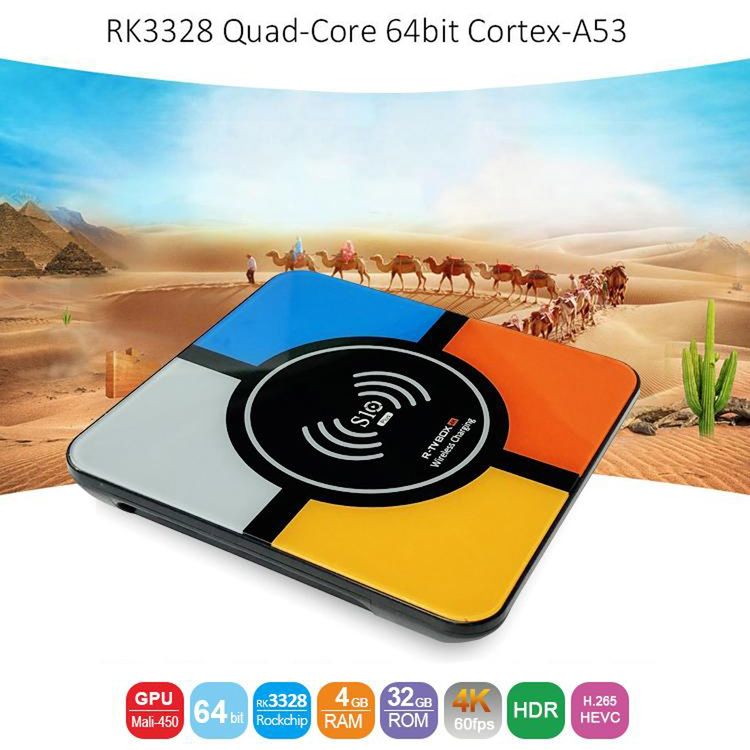

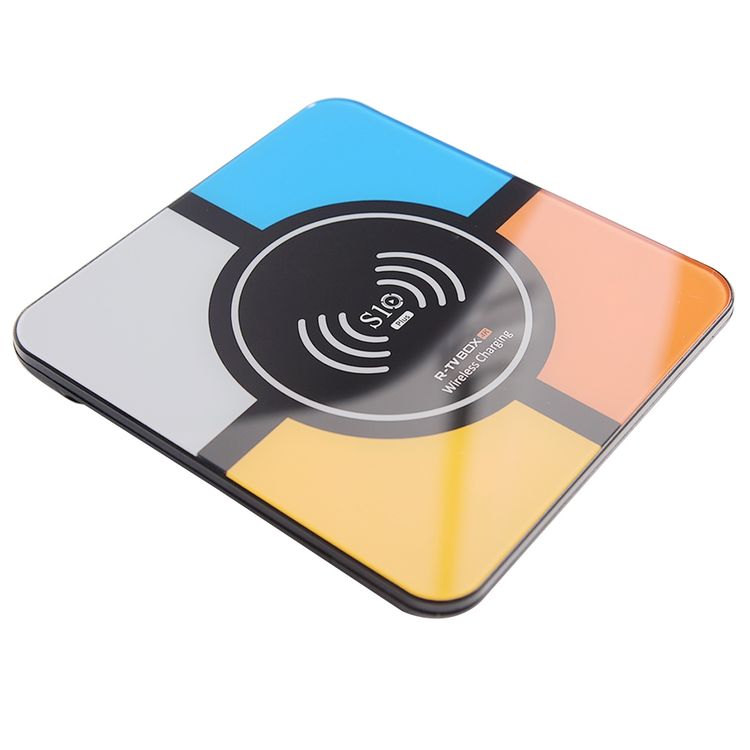

1. R-TV BOX S10 Plus TV Box with Android 8.1 OS, powered by RK3328 Quad-Core 64bit A53 CPU and Penta-Core Mali-450 Up to 750Mhz+ GPU.
2. Built in 4GB RAM and 32GB ROM, excellent performance with your favorite applications and games.
3. Great enjoyment to watch TV shows, 3D movies, play games, browse the pages of web side etc.

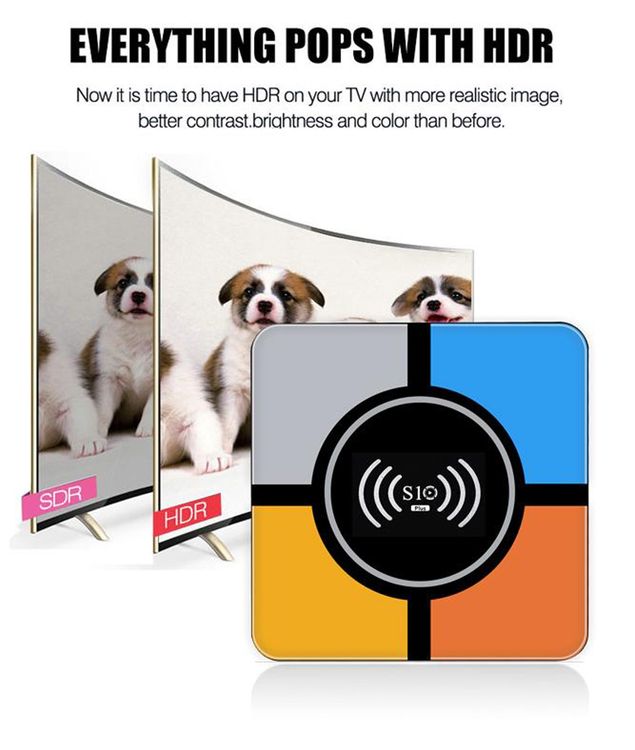

4. Support 4k*2k H.265 video decode and 4k*2k output, more new visual experience to HD screen.
5. 2.4G 802.11 b/g/n WiFi, easily to connect it to your TV through Network or Wireless,so you can enjoy watching videos, playing games, surfing the internet YouTube, Netflix, Skype etc
1. Chipset: AT7909 solution
2. Input voltage: 9V VDC+/-5%
3. Rated input current: 9V-3A
4. Required input Ripple voltage: <150mVp-p @ 3.0A 9V
5. Output Max Power: 10W

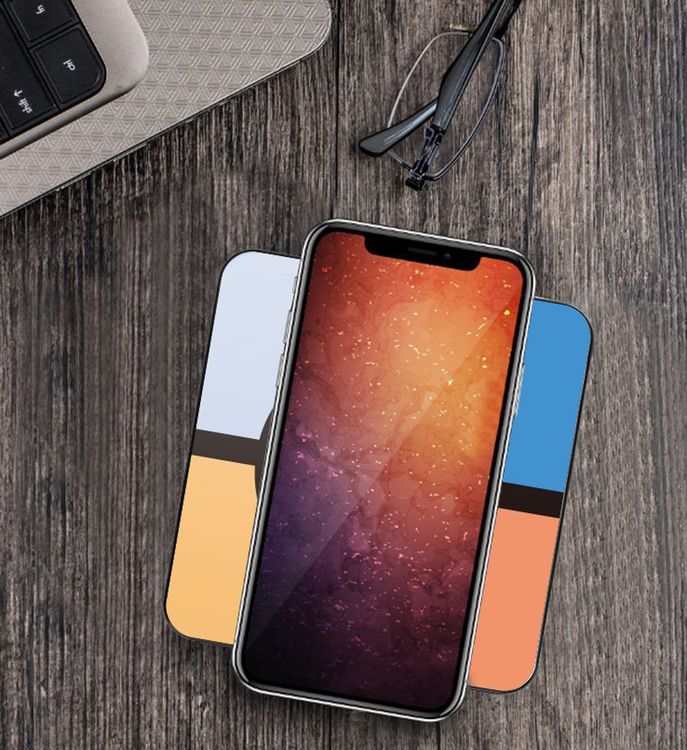

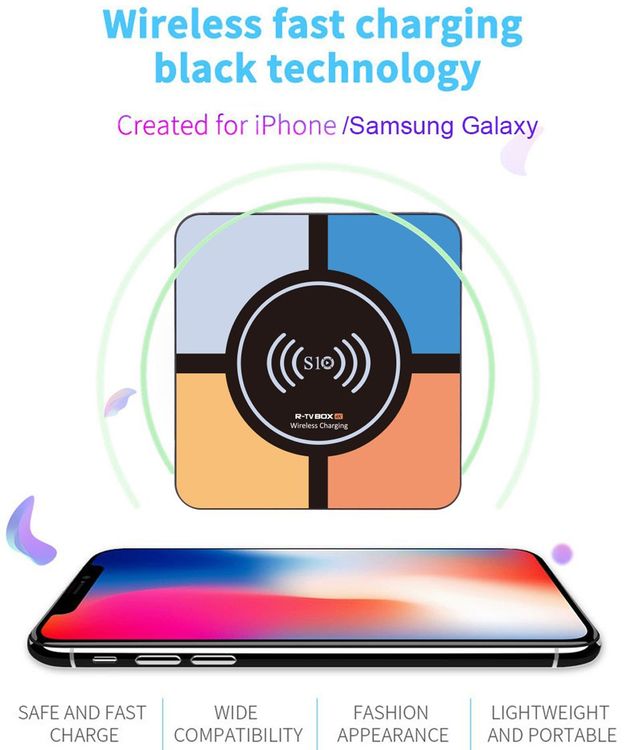

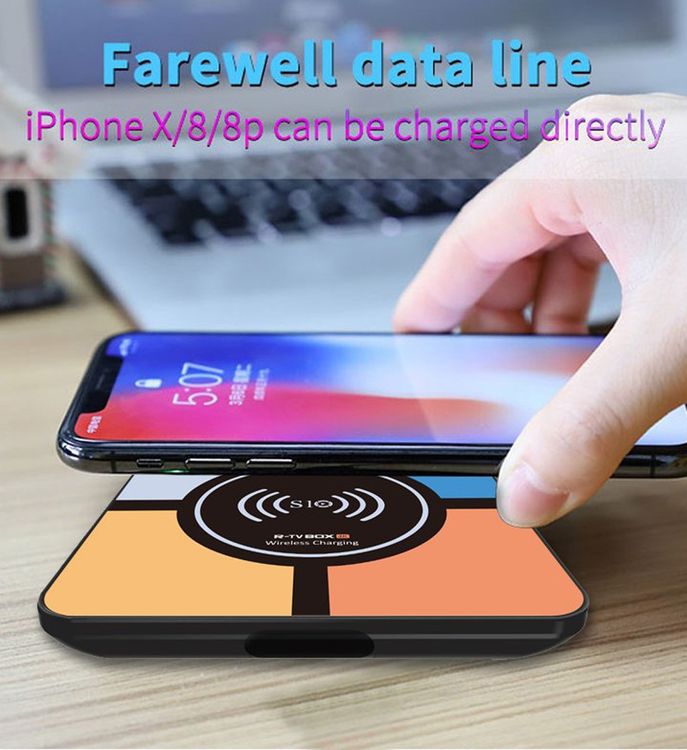

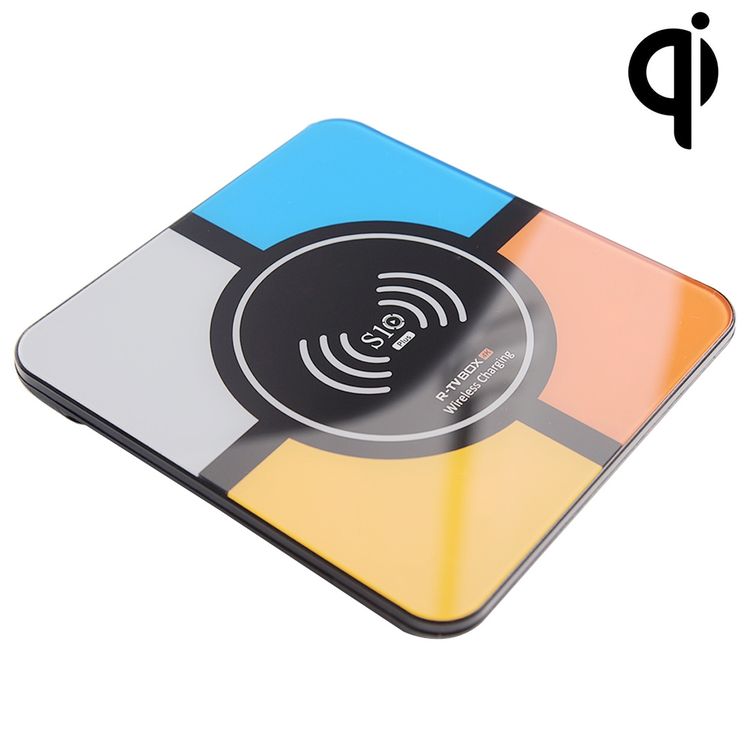

6. WPC QI Compliant: WPC 1.2.4 BPP (Apple 7.5W / Samsung 10W)
7. Switching frequency: 127.7KHz/110KHz ~ 148KHz
8. Efficiency: 80%-85% @10W with T10 tester
9. Ambient operating temperature: 0 to 35 degree C
10. Over current protection: Yes
11. Thermal protection: Yes
12. Effective charging area: TYP. +/-5mm from coil center (Dz=3mm)
13. Best charging distance: TYP. +3~6mm from Tx-coil to Rx-coil
14. FOD: Edge of the coin is extended within the coil
– TX Coil Module or base on QI Standard
– Power Coil Inductance: 6.3uH +/-10%
– Power Coil Resistance: DC: <45m ohm
Additional Information
Model: S10 Plus
Input Voltage: 9V
Input Current: 3A
Effective Output Power: 10W

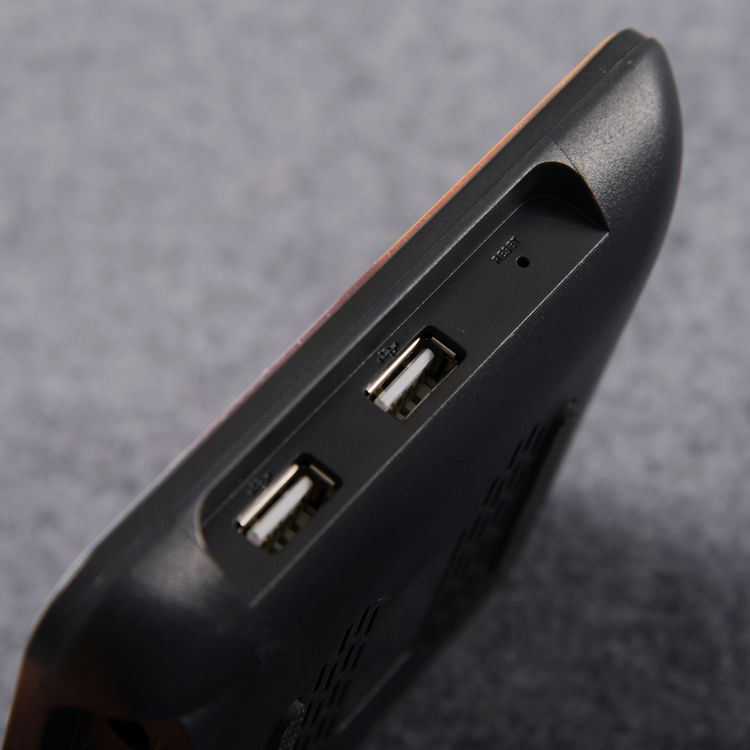

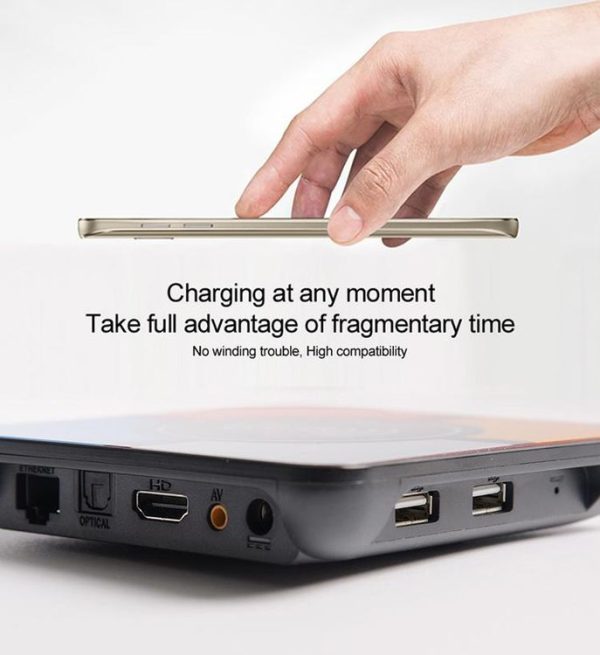

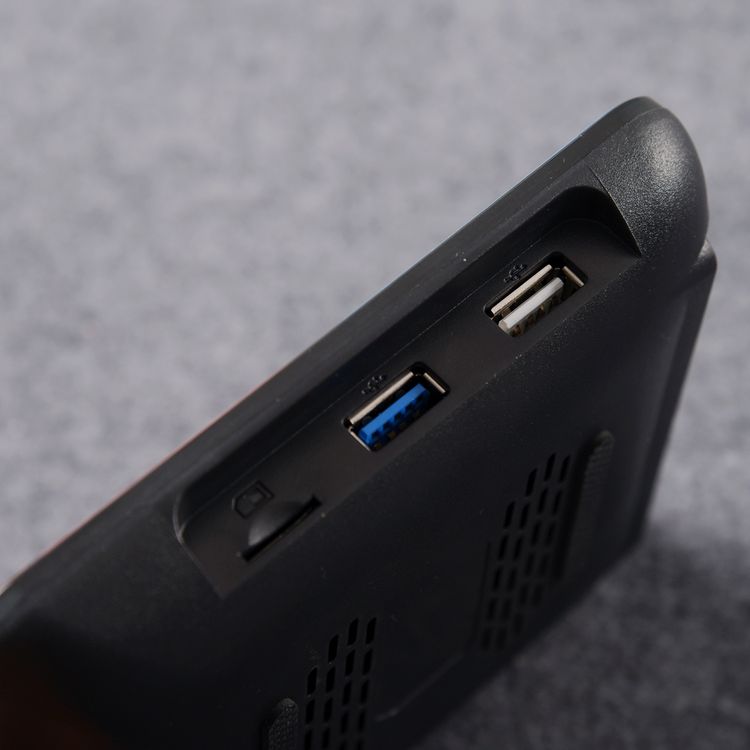

Interface: 1 x RJ45, 1 x TF Card Slot, 1 x AV Port, 1 x USB 3.0, 3 x USB 2.0, 1 x HDMI 2.0, 1 x Optical Port
OSD Languages: English, German, French, Italian, Spanish
Size: 125*120*25cm

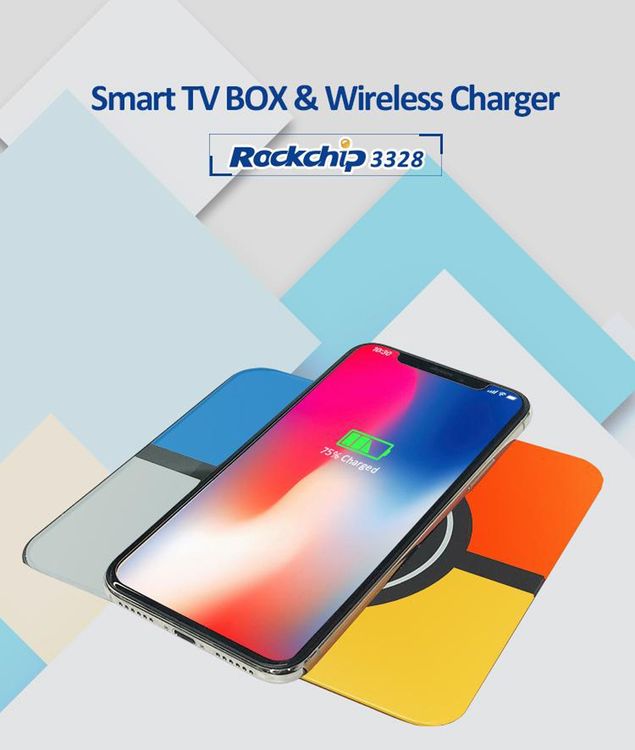

CPU: RK3328 Quad-Core 64bit Cortex-A53
GPU: Penta-Core Mali-450 Up to 750Mhz+
RAM: 4GB
ROM: 32GB

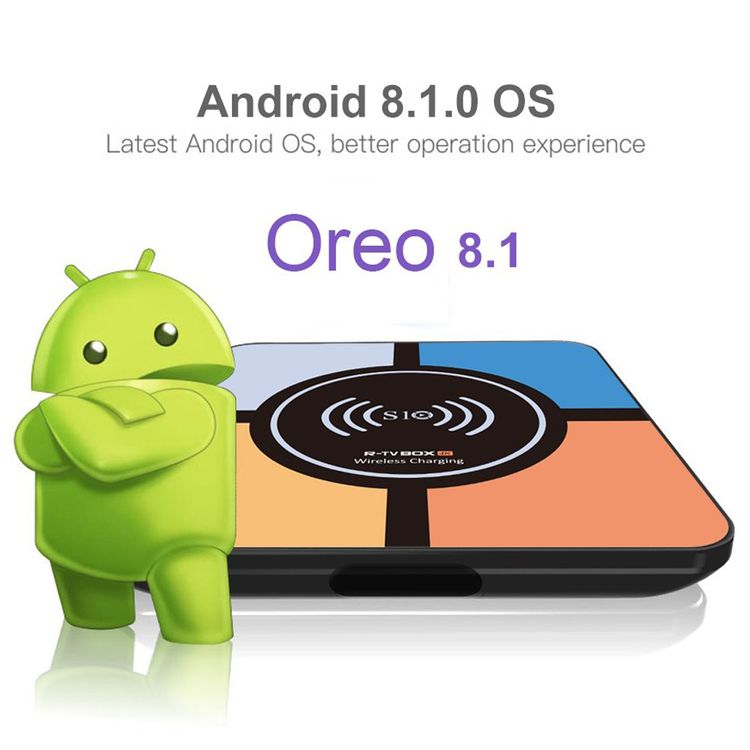

OS: Android 8.1
Wifi: 2.4G 802.11b/g/n
Ethernet: 10/100 standard RJ-45
Document System: FAT32, NTFS, FAT16
Audio Format: MP3, WMA, WAV, OGG, AAC, FLAC, APE
Video Format: AVI, MKV, MPG, VOB, MPEG, FLV, DAT, ASF, WMV, TS, ISO
Picture Format: BMP, PNG, GIF, JPEG, TIFF
Output Resolution: 4K

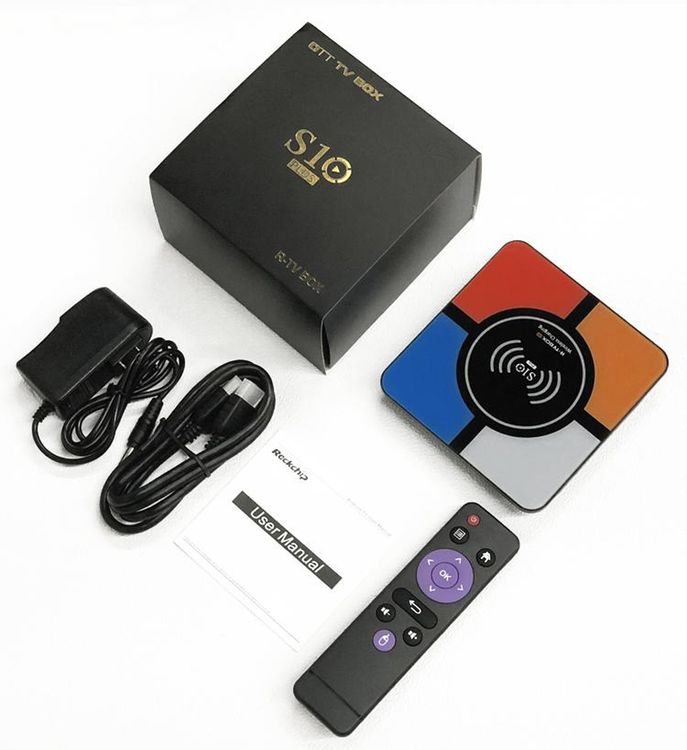

Package Contents: 1 x Box, 1 x HDMI cable, 1 x User manual, 1 x Remote Controller, 1 x Power Supply (EU, US, AU, UK Optional)
Weight: 0.432kg
Size: 15cm x 14cm x 8cm
