LGA 771 DDR3 Computer Motherboard for Intel P45-771 Chip, Support Intel Xeon Full Range of Dual-core Quad-core CPU


R1040

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Intel P45 main chipset, Intel P45+ICH6 chipset.

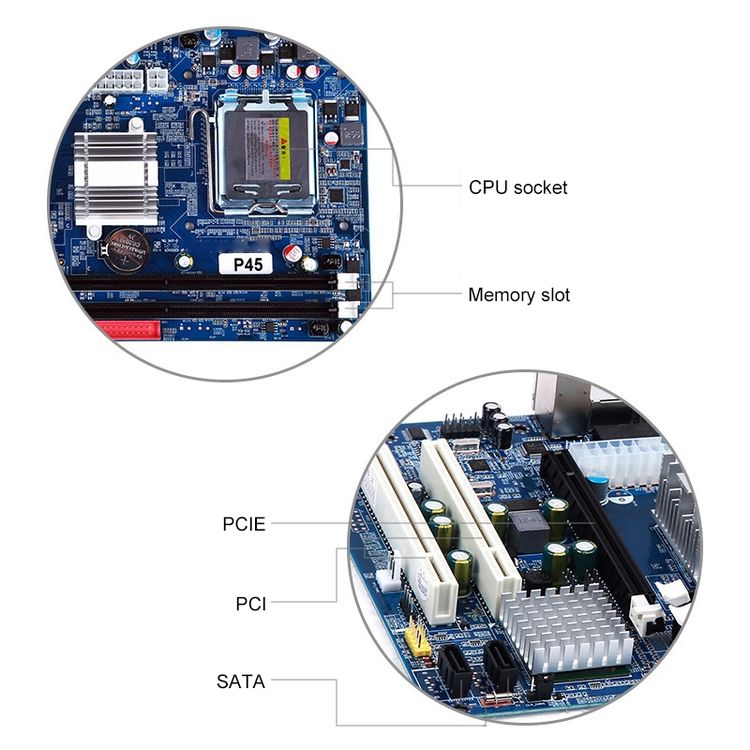

2. Number of CPU slots: 1, CPU slot type: Supports Intel Socket 771 interface processor.
3. Support Intel Xeon full range of dual-core quad-core CPUs.
4. FSB 800/1066/1333MHz.
5. Memory type: DDR3, support single and dual channel DDR3 1066/1333/1600 memory.
6. Integrated chip: sound card / network card.
7. Audio chip: integrated six-channel audio chip.
8. Graphics chip: None (requires a separate graphics card).
9. NIC chip: Onboard 100M NIC.
10. 6-8 USB ports, 4 rear, 2-4 front.
11. PCI-E 3.0 16X graphics card slot.
12. 2 PCI slots, one IDE slot, no FDD slot.
13. PS/2 mouse, PS/2 keyboard interface.

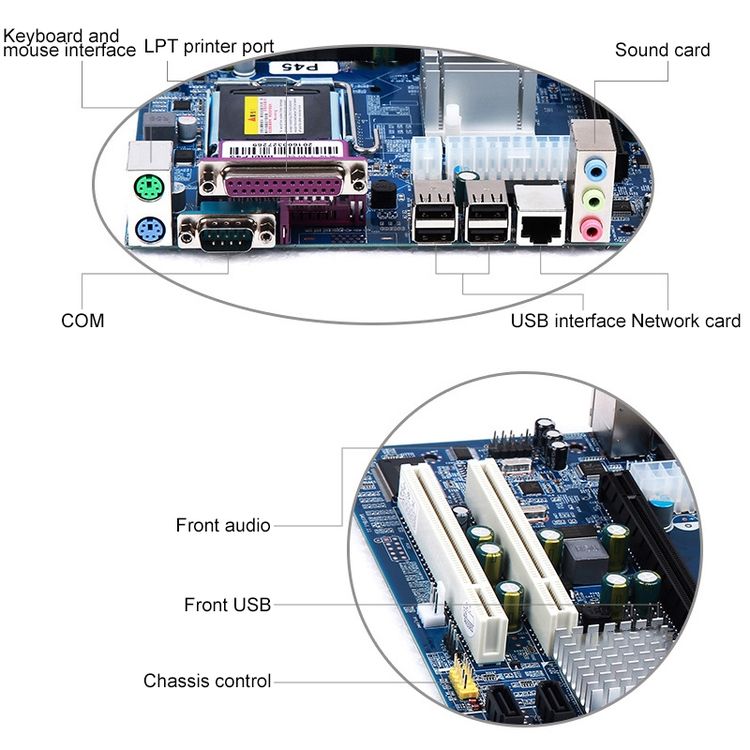

14. External port: audio interface / network card / COM / LPT print port / USB.
15. 2-4 SATAII interfaces.
16. Memory slot: 2 x DDR3 DIMM.
17. Micro ATX form factor.
18. Power socket: one 4-pin, one 24-pin.
19. Dimensions: 23.5×17.5cm.

Note:
Do not put the chassis or screws on the goods you receive. In case the product does not meet the requirements you need, install it after the system has been installed and tested without any problems.

Additional Information

Weight & Size

Weight: 0.580kg
Size: 26cm x 22cm x 6cm

SKU: B0100016343 Category: Condition: NewOrigin: CN
