Overview

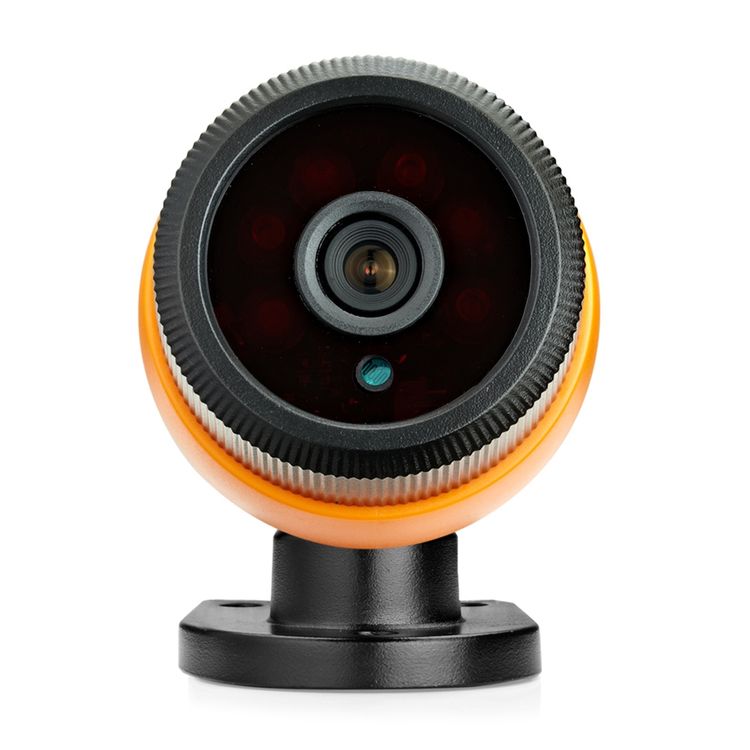

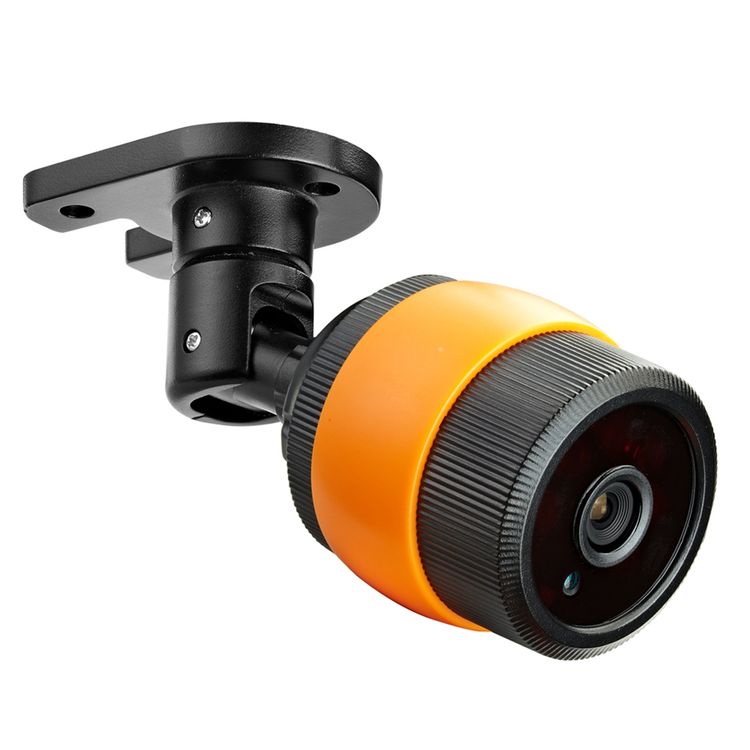

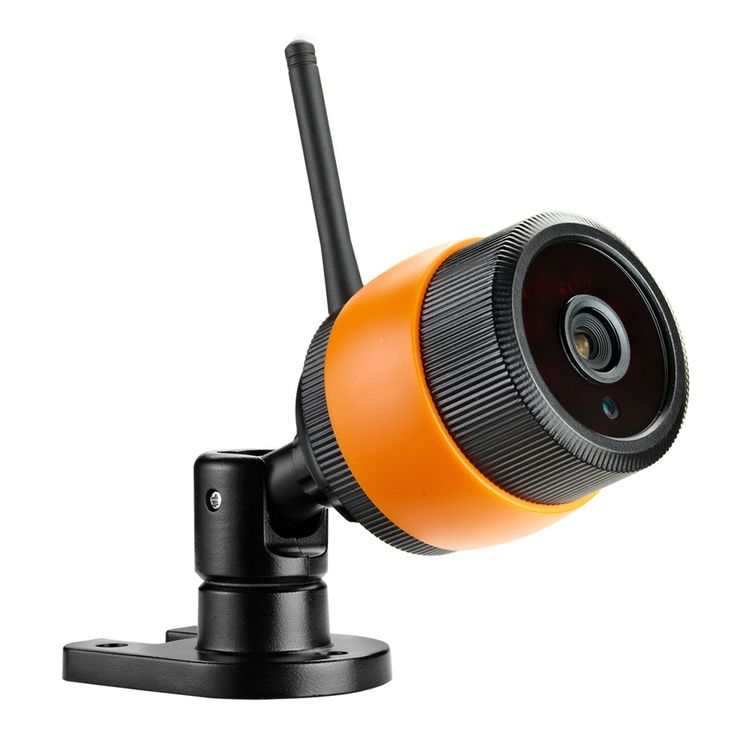

1. 1.0 MP HD camera, 1/4 inch Progressive Scan Sensor.
2. 720P Wireless Network Video Recorder,HD video output.
3. Built-in WiFi module with high-performance and high stability.
4. Automatically Connection between NVR and IPC.

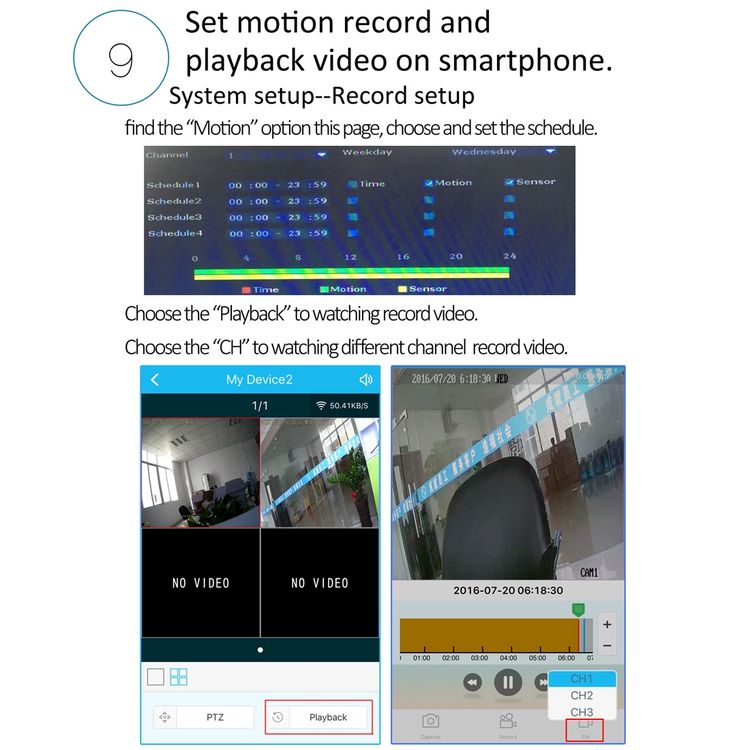

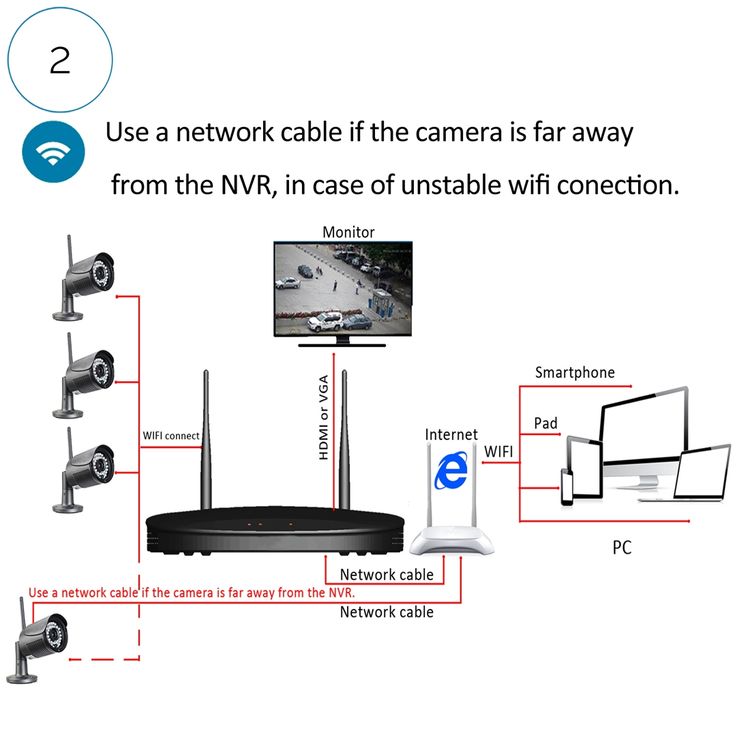

5. Support video preview/recording/playback/Motion detection recording.
6. Support the mixed use of wireless and wire,support different scene.

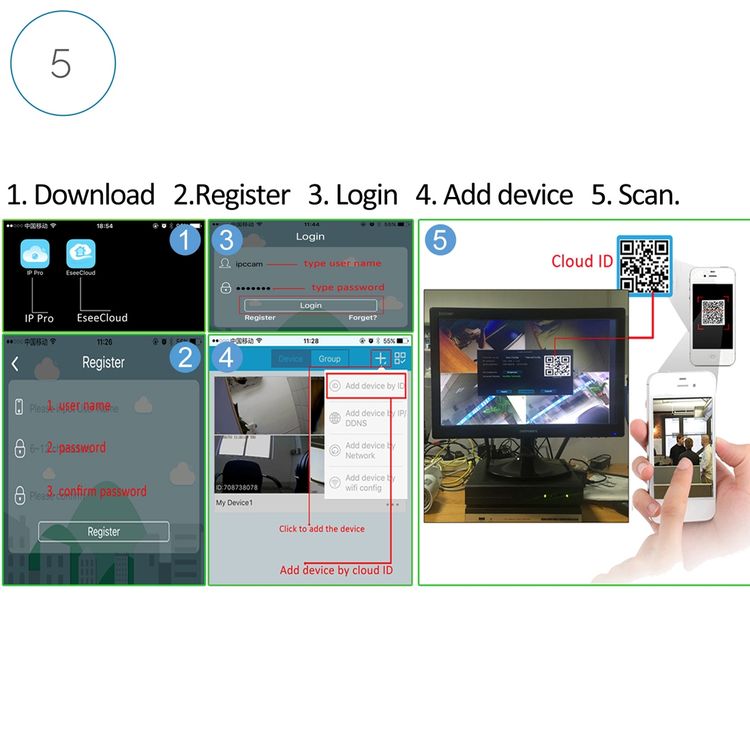

7. Supports monitoring via computer, iPhone, and most Android smartphones on the market.
8. Plug and play, support P2P service.
9. Automatic connection with IP camera, save installation cos.

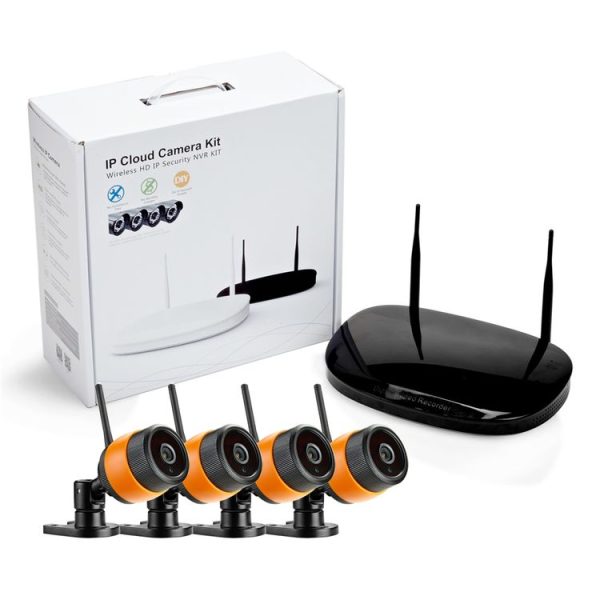

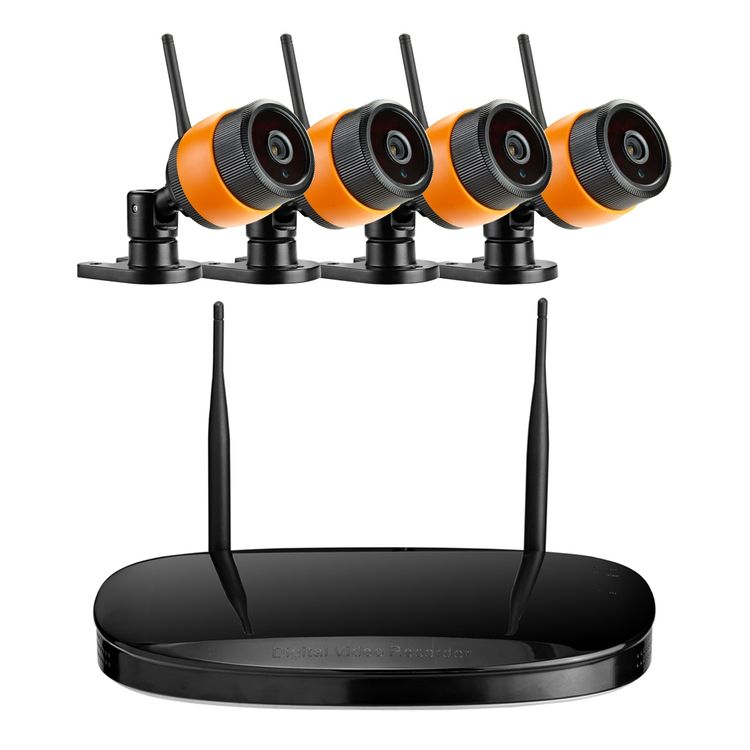

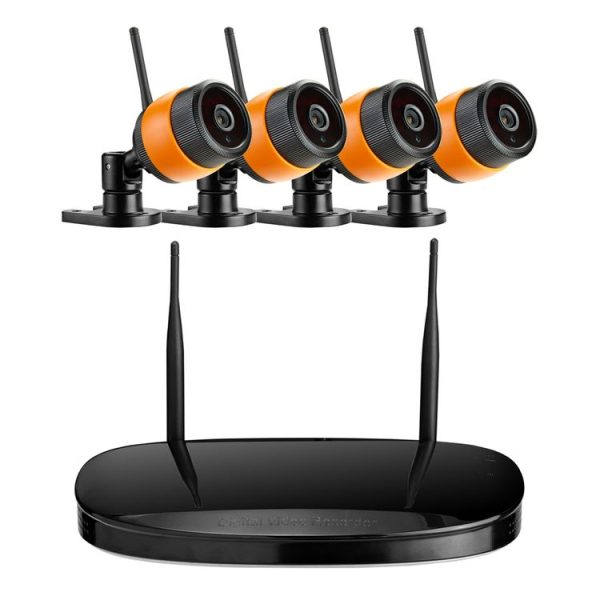

10. 4 pcs WiFi camera and 1 pcs WiFi NVR, it can be used in various kinds of surveillance scenes, such as home, office, supermarket, garden, etc.
Additional Information
Model: IPCC-KitB16-W-720P-4CH
Power Depletion: <6W(Camera)

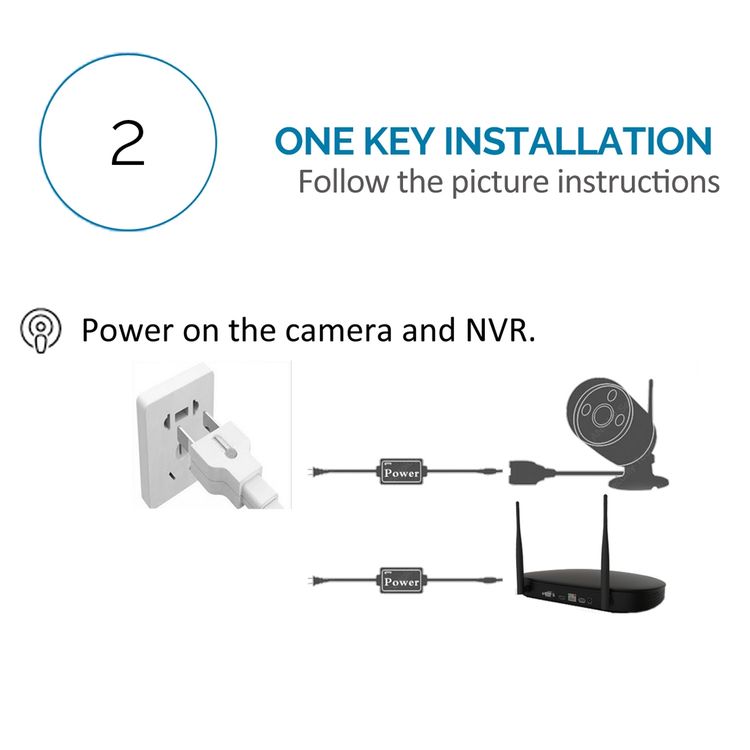

Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision
DNR: Auto
Power Plug: EU Plug, US Plug, UK Plug, AU Plug
Network Interface: RJ45 10/100MB Ethernet interface

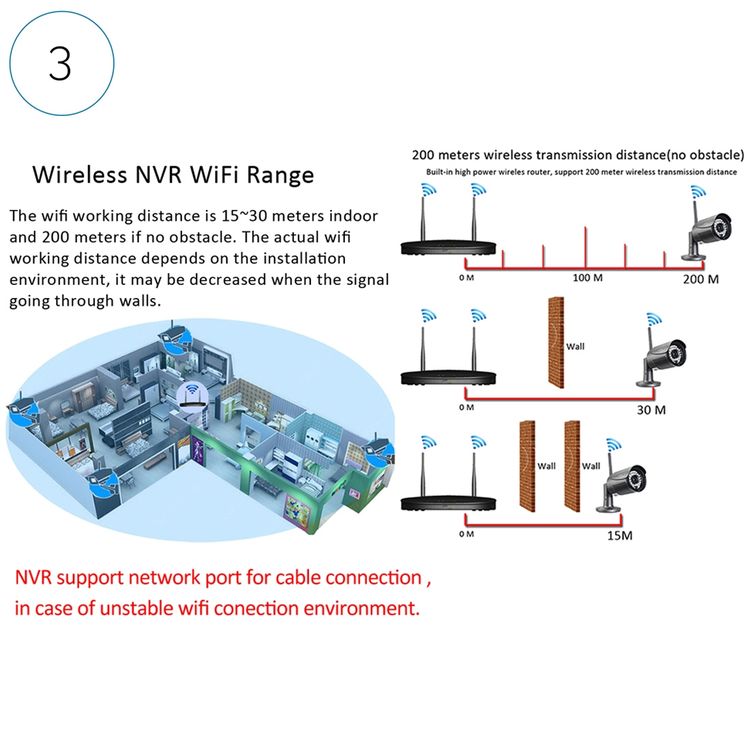

Wireless: WiFi 802.11 b/g/n
Network Transmission: P2P
Mobile Access: Android, iPhone OS, iPad
Signal System: PAL, NTSC
Sensor Size: 1/4 inch Progressive Scan
Pixels: 1.0MP
Lens: 4-6mm
Electronic Shutter: 1/25s to 1/25,000s
SNR: > 39.1 dB
Minimum Illumination: Color: 0.1Lux, B/W: 0.01Lux
White Balance: Auto
Frame Rate (FPS): Dual-stream: 1280×720@15fps, 640×360@15fps
Resolution: 1280*720
Infrared Distance: 10~25m

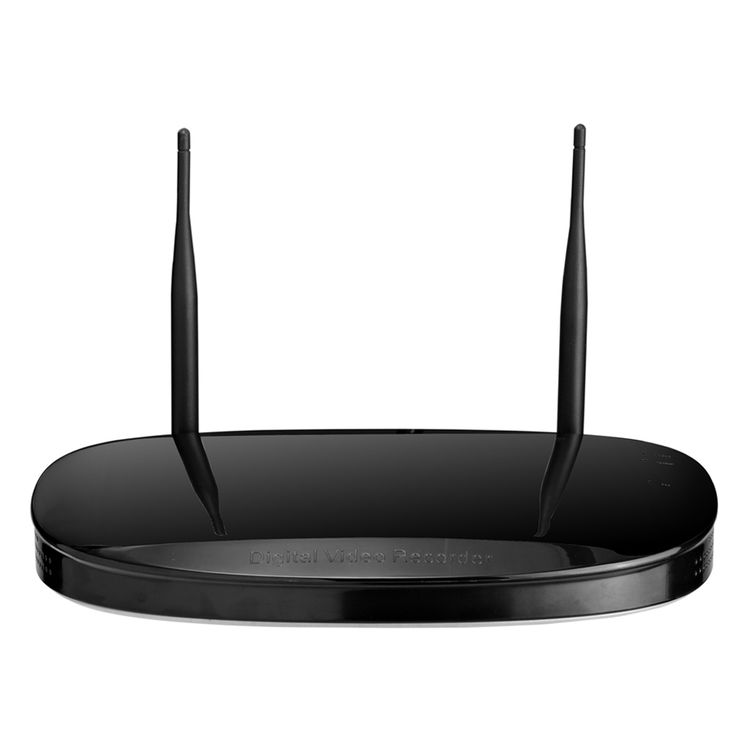

NVR Model: IPCC-N4
Dual Stream: Support
Recording: Recording mode: Manual recording, motion detection recording, time recording, alarm recording

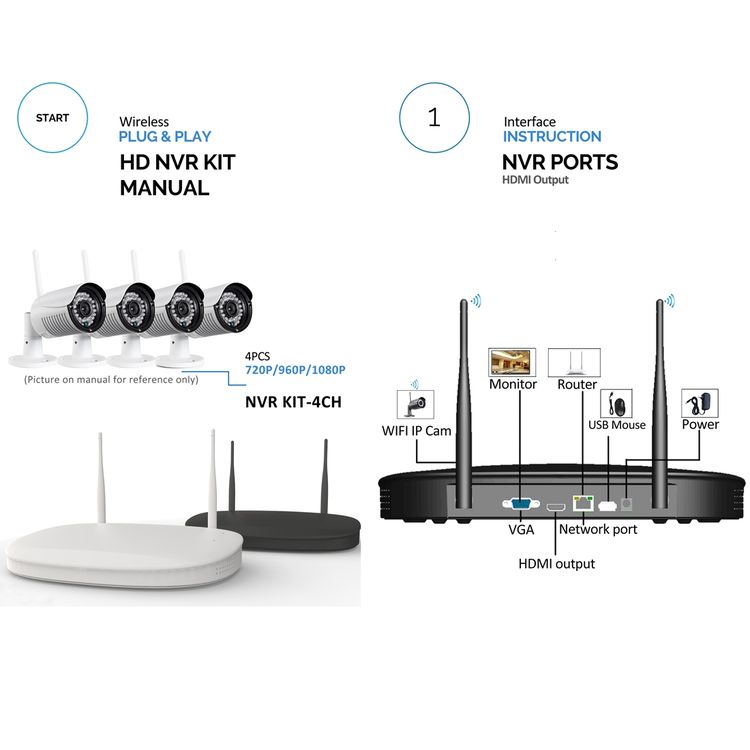

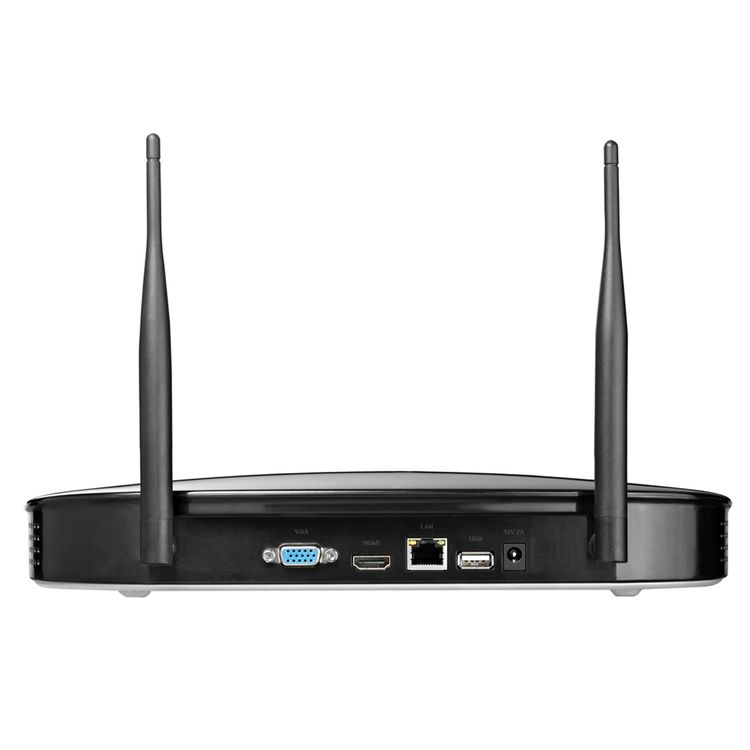

NVR Interface: 1 x VGA, 1 x HDMI, 1 x USB 2.0, 1 x RJ45, 1 x DC Jack
Video input: 4ch, D1, 720P, 960P, 1080P
Video interface: Network video Input: 4ch
HDMI Output Resolution: 1024×768, 1280×1024, 1366×768, 1440×900, 1920×1080
Network: 1 x RJ45 10M/100M, 2 x WIFI connector
USB Port: 1 x USB 2.0
Wireless Port: WiFi

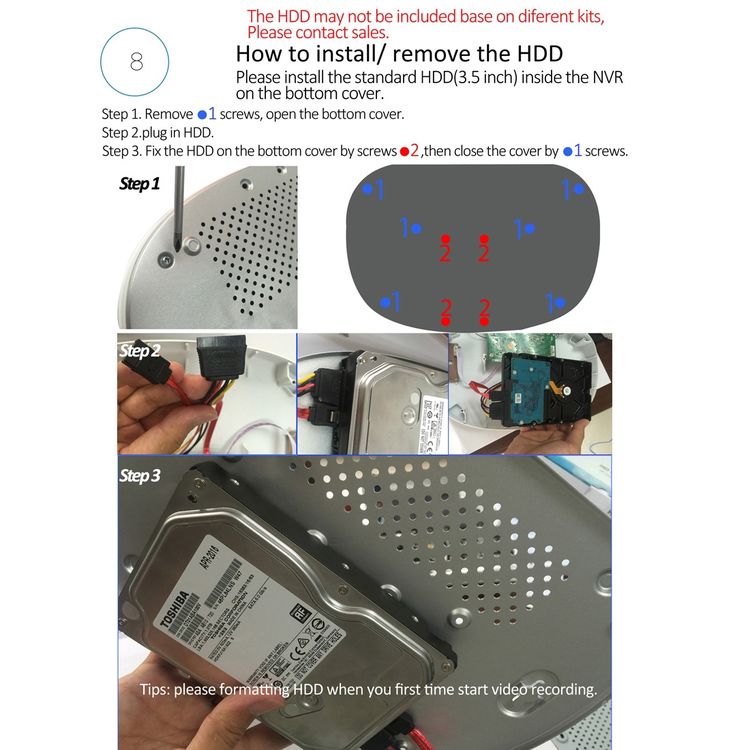

HDD: SATA HDD (not included)
Operation temperature: -10 to 55 Degree Celsius
Operation humidity: 10-90 percent
Power: DC 12V
VGA Output Resolution: 1024×768, 1280×1024, 1366×768, 1440×900, 1920×1080
Ingress Protection: IP66
Operate Temperature: -20 to 60 Degree Celsius
Working Humidity: 20 to 90 percent

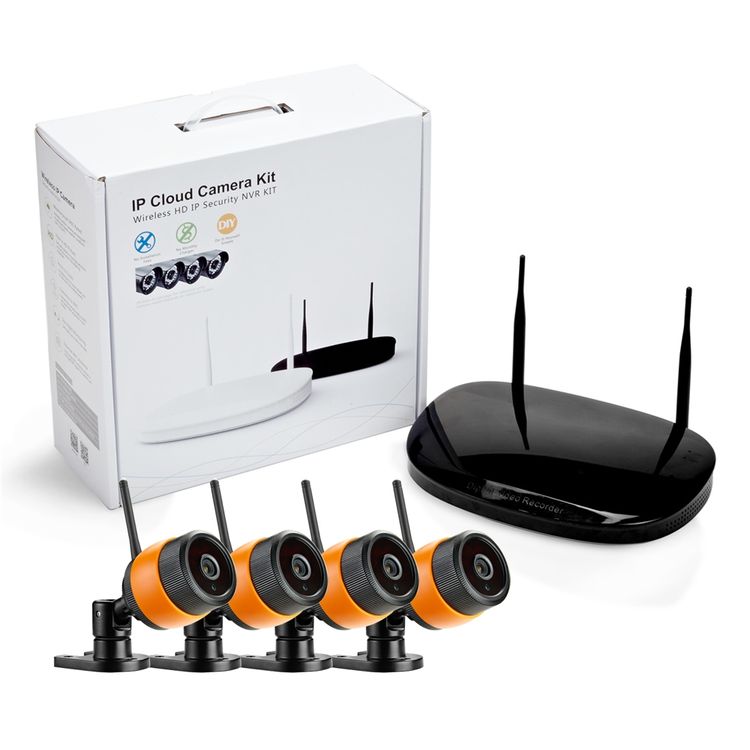

Package Contents: 4 x Cameras, 1 x NVR, 1 x User Manual, 4 x Cameras Chargers, 1 x NVR Charger
Weight: 4.200kg
Size: 35cm x 35cm x 14cm
