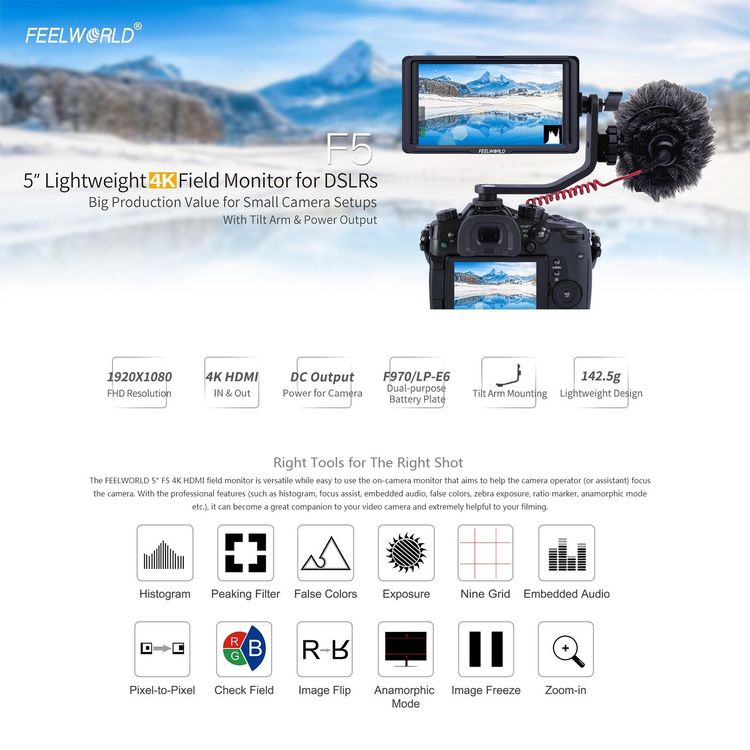

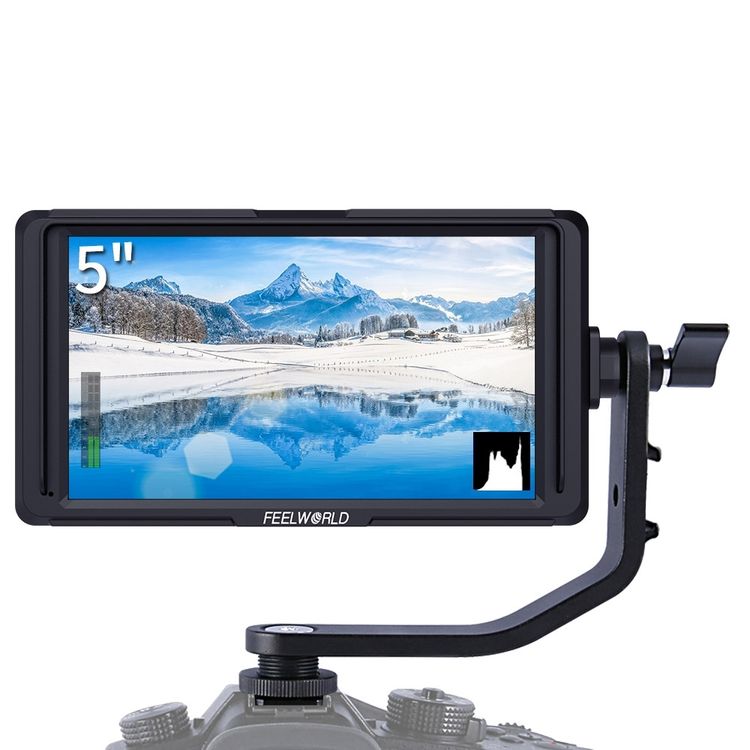

Overview
1. High Resolution: Full HD 1920×1080
2. High Contrast: 1000:1
3. High Brightness: 450cd/square meter
4. 160 degree wide viewing angles IPS Panel

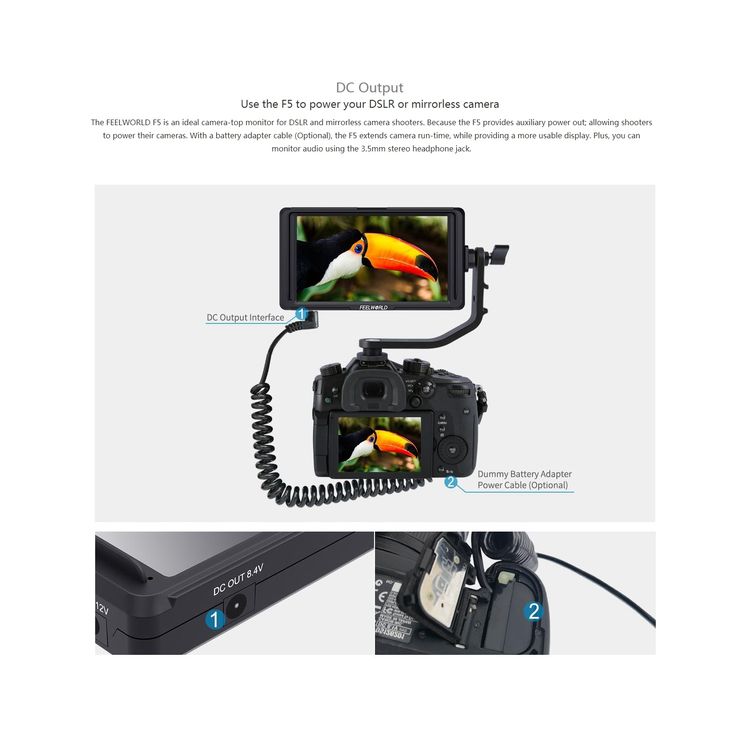

5. Provide auxiliary power out; allowing shooters to power their cameras

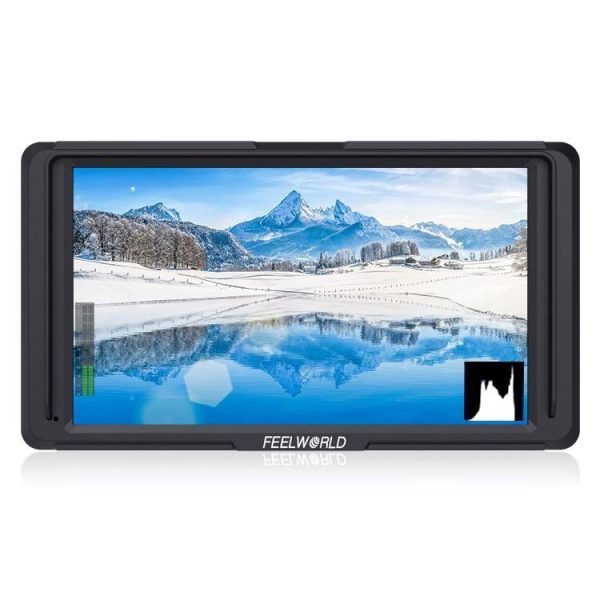

6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Scan Mode (Under Scan, Over Scan)
12. Zoom (4x,9x,16x)
13. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
14. Pixel to Pixel
15. Center Marker
16. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)
17. Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
18. Marker Color (Red,Green,Blue,White,Black)
19. Check Field (Red/Green/Blue/Mono)
20. Image Flip (H, V, H/V)
21. Image Freeze
22. Zoom All (0~100 adjustable)
23. U/D & L/R Zoom (0~100 adjustable)
24. Color Temperature Adjustment
1. Screen Size: 5 inch IPS
2. Resolution: 1920×1080 pixels
3. Pixel Pitch: 0.0571 (H) x 0.019 (W) mm
4. Aspect Ratio: 16:9
5. Brightness: 450cd / square meter
6. Contrast Ratio: 1000:1
7. Backlight: LED
8. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D)
9. Input: 1 x HDTV

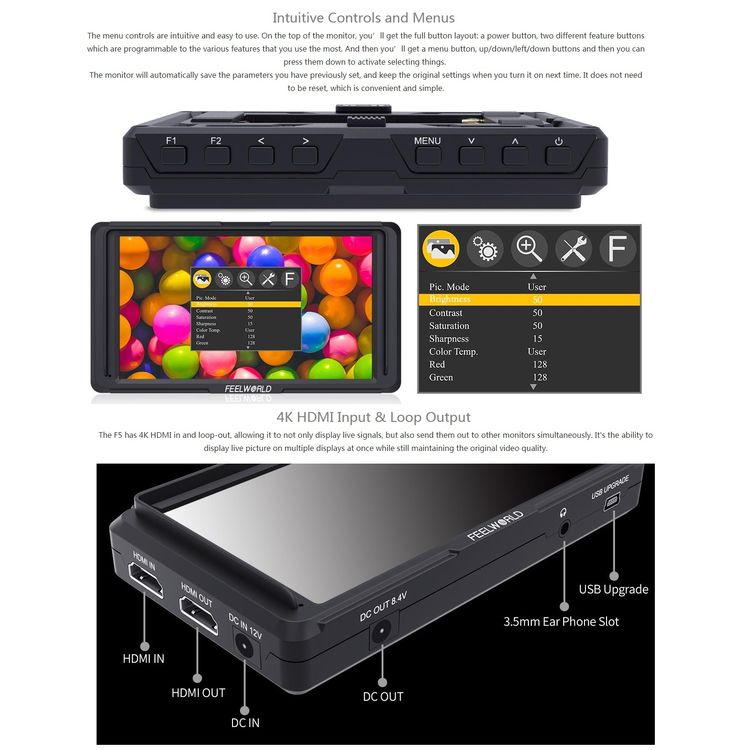

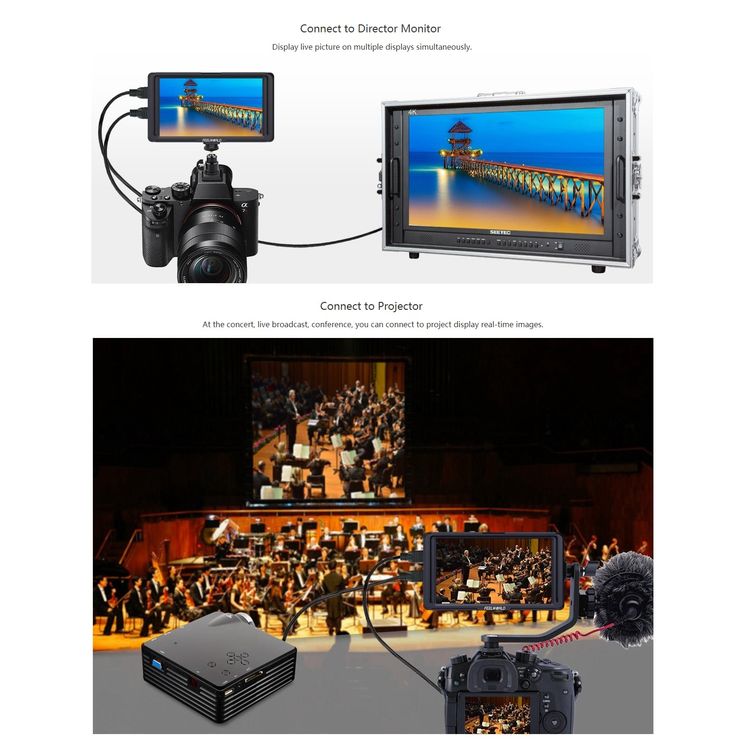

10. Output: 1 x HDTV, 1 x DC port
11. Audio: Stereo Headphone

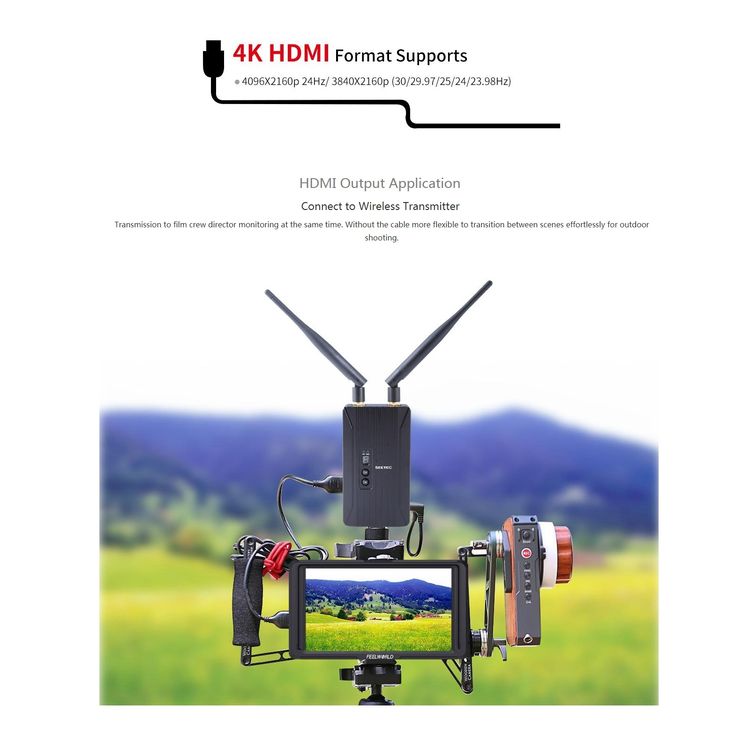

12. HDTV Input / Output Support Format: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98 / 23.98sF), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
13. Input Voltage: DC7 – 24V
14. Power Consumption: Less and equal 8W
15. Power Connector: DC
16. Working Temperature: -20 degree C~55 degree
17. Storage Temperature: -30 degree C~65 degree C

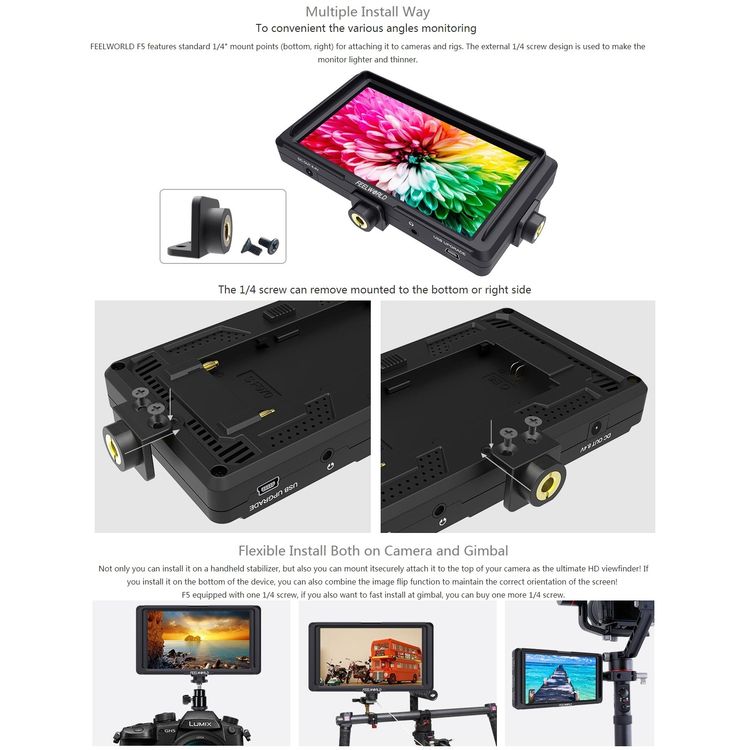

18. Install Way: 1/4 inch thread points

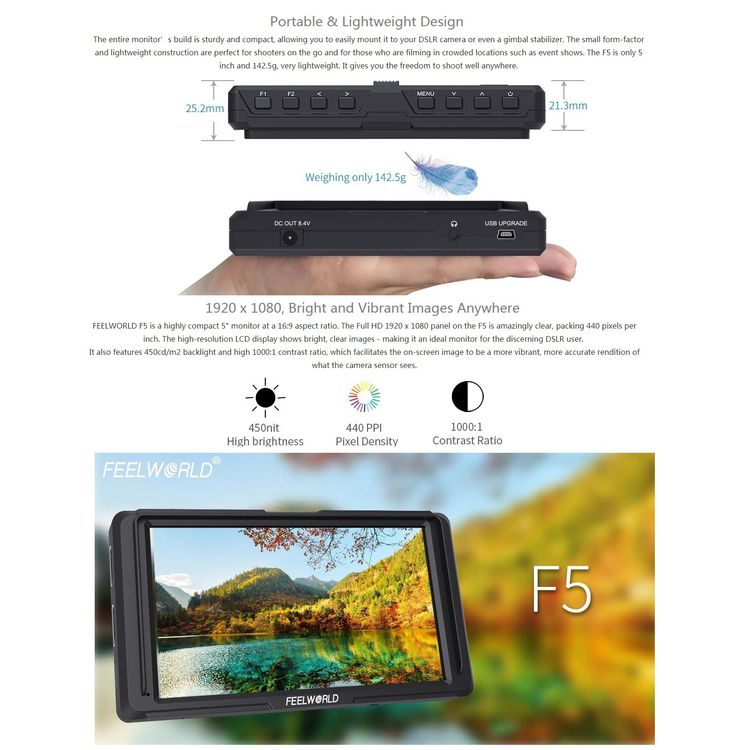

19. Unit Size: 136Lx75.7Hx25.2D (mm)
20. Unit Weight: 142.5g

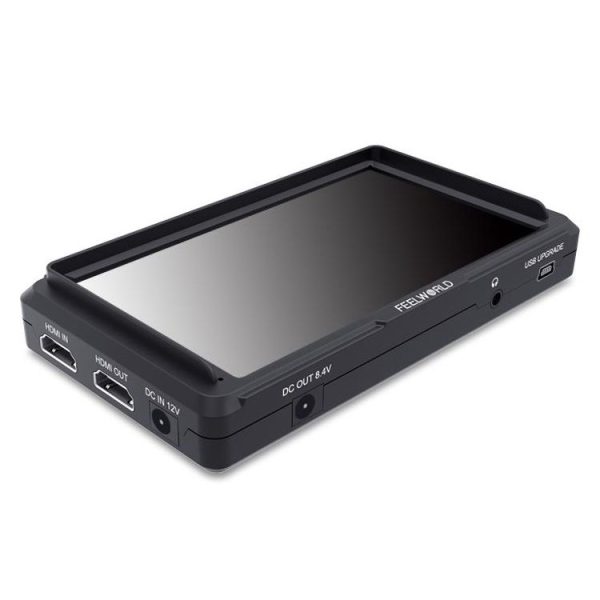

1. F6S (F5 4K) monitor x 1

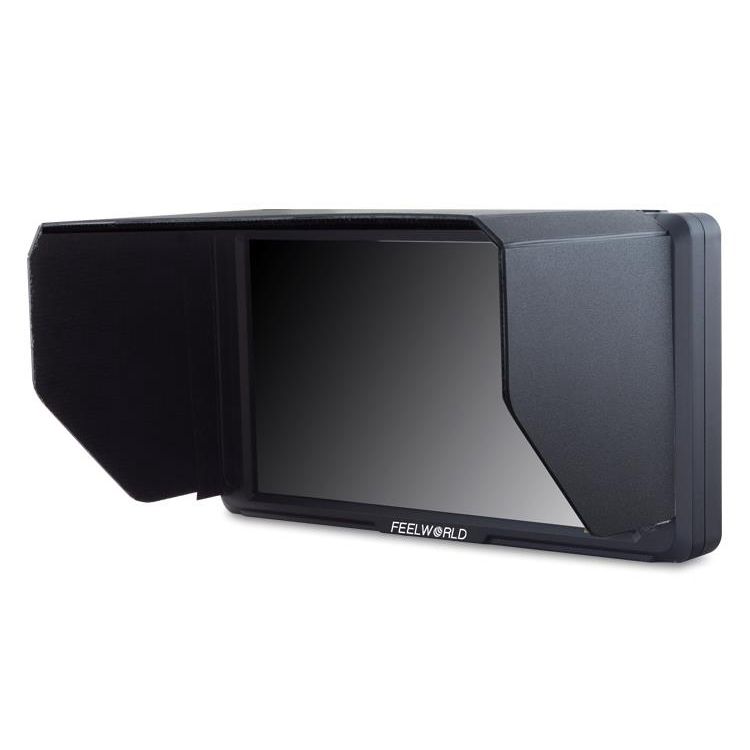

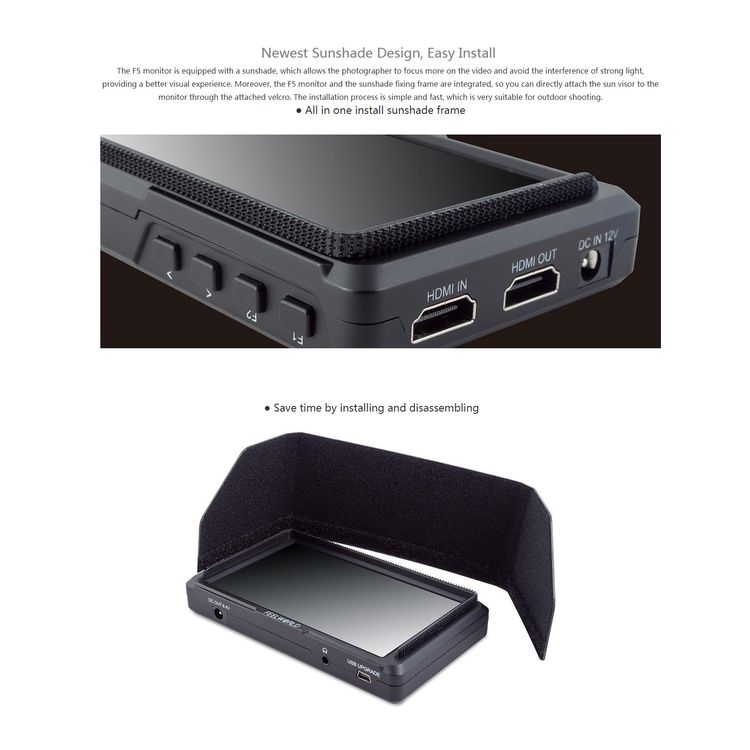

2. Monitor shading bucket x 1
3. HDTV-MICRO cable x 1

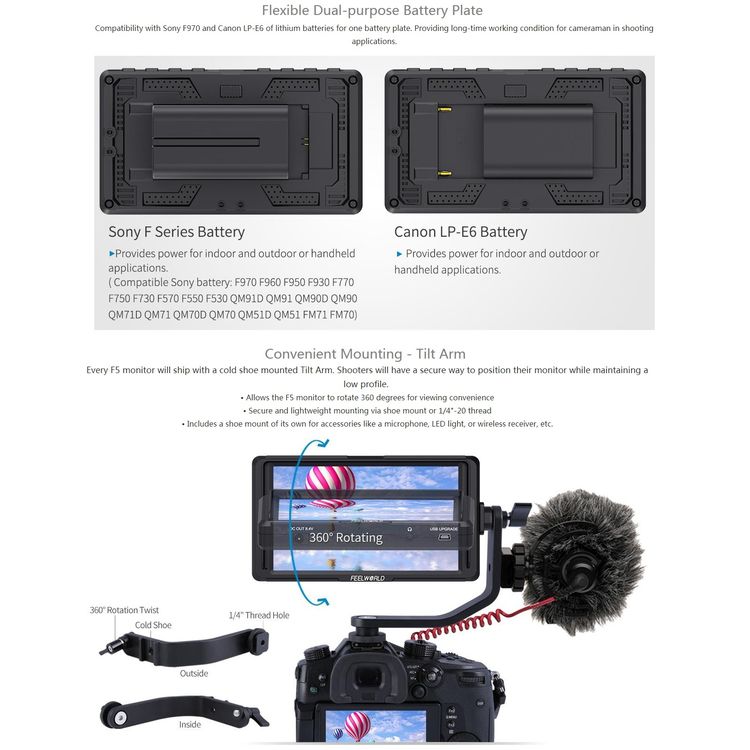

4. L-shaped cold shoe bracket x 1
5. Manual x 1
Additional Information
Certificate: CE, ROHS, FCC
Weight: 0.541kg
Size: 20cm x 13cm x 9cm
