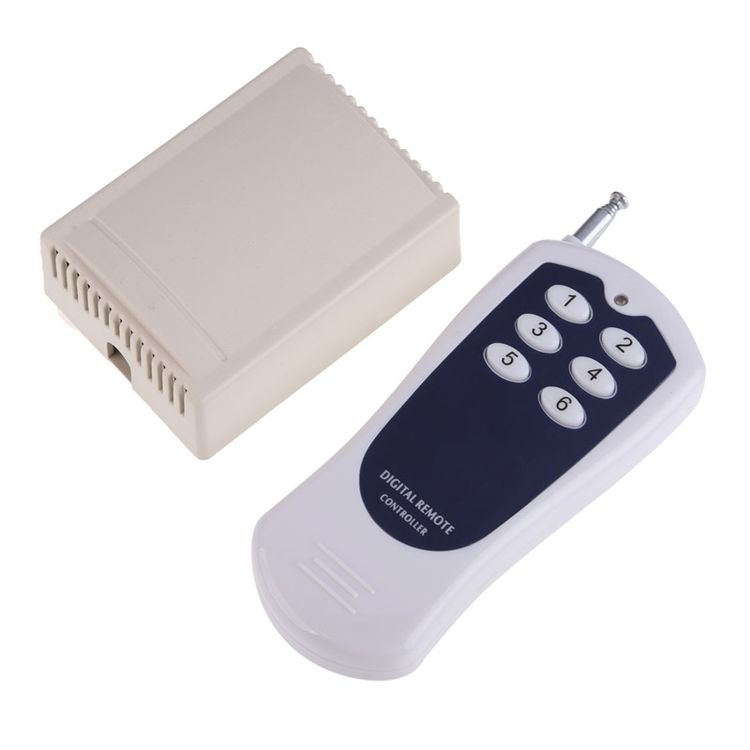

DC 12V 6CH Channel Wireless RF Remote Control Switch Transmitter + Receiver


R470

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

1. Wireless control, easy to install.
2. Control lights, motors, fans, electrically operated doors / locks / windows / blinds / cars or other appliances with AC220V, AC85V-260V OR DC12V.
3. You can turn on / off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
4. This switch can learn different coding remote controls (such as 2262, 1527)
5. One / several transmitters can control one / several receivers simultaneously.
6. If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it will not affect each other.
7. The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

About Working / output Way

1. Output Working way for learning code switch-Jog, Self-lock, Inter-lock, changed by soldering or jump cap.
2. Momentary / Jog — Press and hold ON; Release OFF.
3. Toggle / Self-lock — Press ON; Press again OFF.
4. Latched / Inter-lock–Press ON; Press other button OFF.

Learning and cleaning Method

1. Learning: Press the learning key, it means the controller putting in the learning state when the indicator goes ON, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times after 1 second, then recover to normally OFF, which means successfully studied.
2. After pressing any buttons of the remote control to transmit signal, the indicator did not flash, 10 seconds later it still recovers to normally on, but it study unsuccessfully.
3. Cleaning: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote receiver did not work, it means cleaning code successful.
A: Signal non-lock (Jog): press the NO.1 button of the remote control to learn.
B: Signal Self-lock (Self-lock): press the No.2 button to learn, each channel is independent of the others.
C: Signal Inter-lock: press the NO.3 button to learn.
D: 1CH-3CH is Jog, 4CH-6CH is Self-lock press the NO.4button to learn.
E: 1CH-3CH is Jog, 4CH-6CH is Inter-lock press the NO.5button to learn.
F: 1CH-2CH is Jog, 3CH-6CH is Inter-lock press the NO.6 button to learn.

Pay attention

1. The default setting of output way is momentary, press is on, release is off. If you need other output way can leave a message to change it for you before the delivery.
2. Here is 6 Channel switch and 6-buttons remote control. You can choose the working way as you need. We default is momentary.
3. The theoretical distance is 50-200m, which shall be operated in an open ground; no barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; or you can add the External Extend Antenna or Transponder on the receiver to extend the range.

Additional Information

Receiver (Switch)

Receiver Model: AK-RK06S-12
Channel: 6 CH
Working Voltage: DC 12V
Max load current: 10A
Working Frequency: 315MHZ
Output way: Jog, Self-lock, Inter-lock
Code Type: Learning Code

Remote Control (Transmitter)

Transmitter Model: AK-12-6
Buttons: 6 Buttons
Operating Voltage: DC12V (battery not included)
Operating Frequency: 315MHz
Frequency Distance: 50-200m
Encoding type: learning code, Fixed code by soldering

Package Include

Package Contents: 1 x Wireless Receiver, 1 x Transmitter

Weight & Size

Weight: 0.195kg
Size: 12cm x 5cm x 1cm
