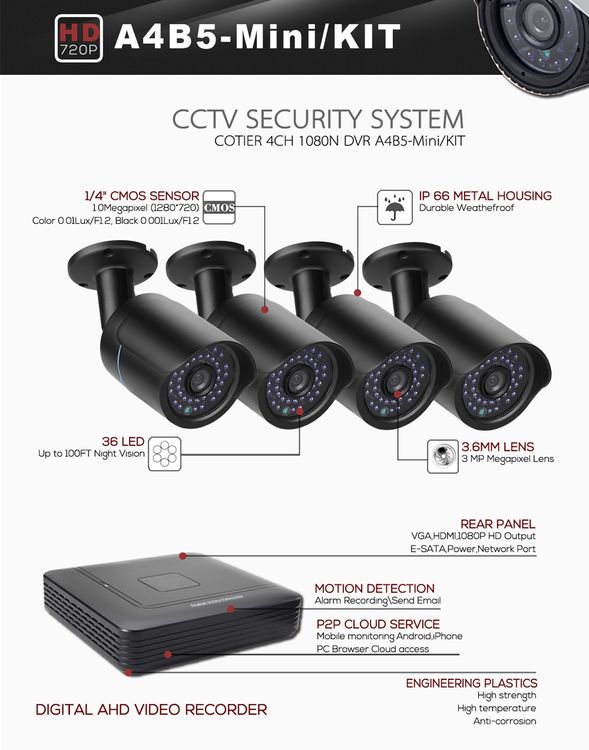

A4B5-Mini 4 Channel 720P 1.0 Mega Pixel 4 x Bullet AHD Cameras AHD DVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m


R4108

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

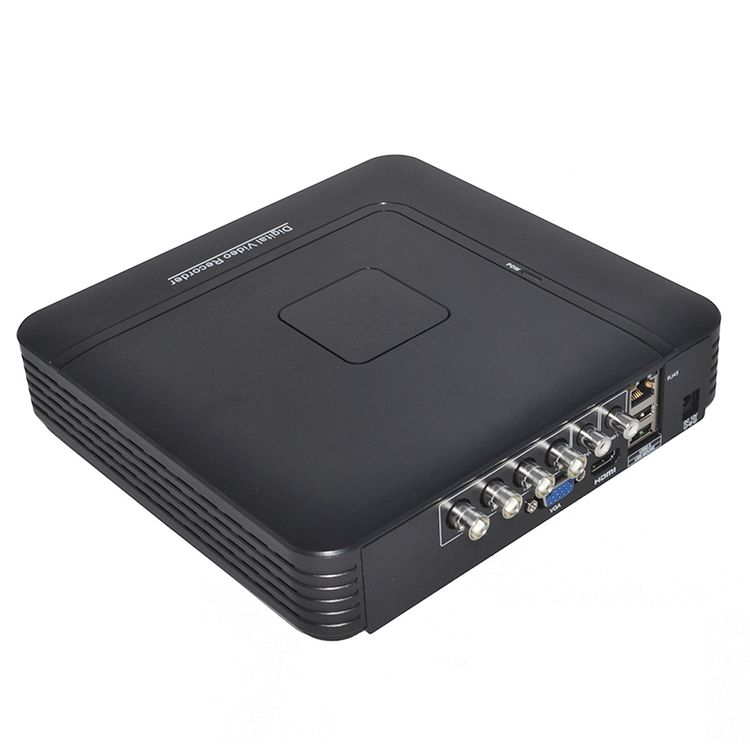

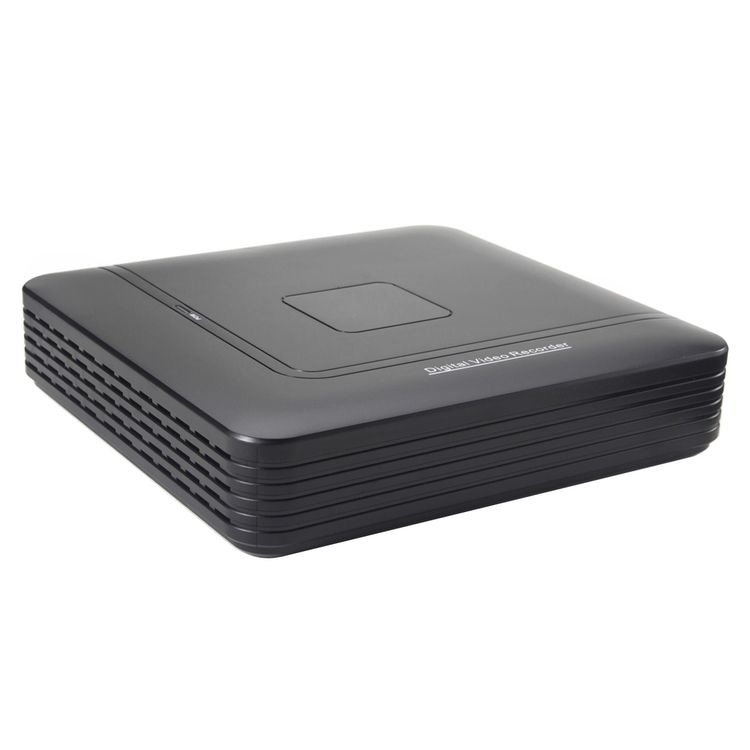

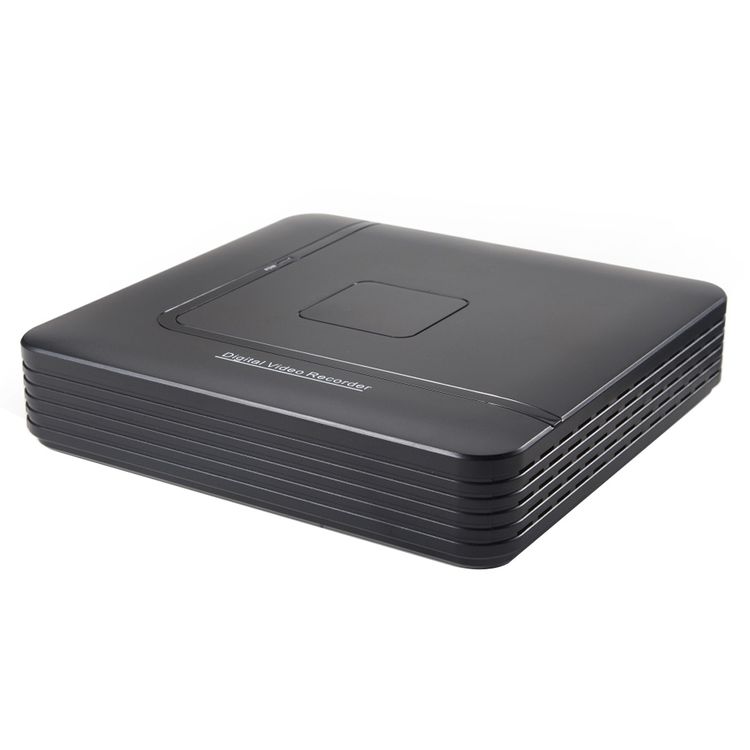

AHD DVR

1. Support 4CH 960P/720P 1HDD AHD DVR
2. Support 4pcs 1MP AHD Camera(36pcs 5mm IR LED,IR distance 20M)
3. Compression algorithm ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
4. Playback quality: Support full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
5. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
6. Display: VGA HD output simultaneously, support VGA 1080p HD output, lead the technology of HD resolution.
7. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.

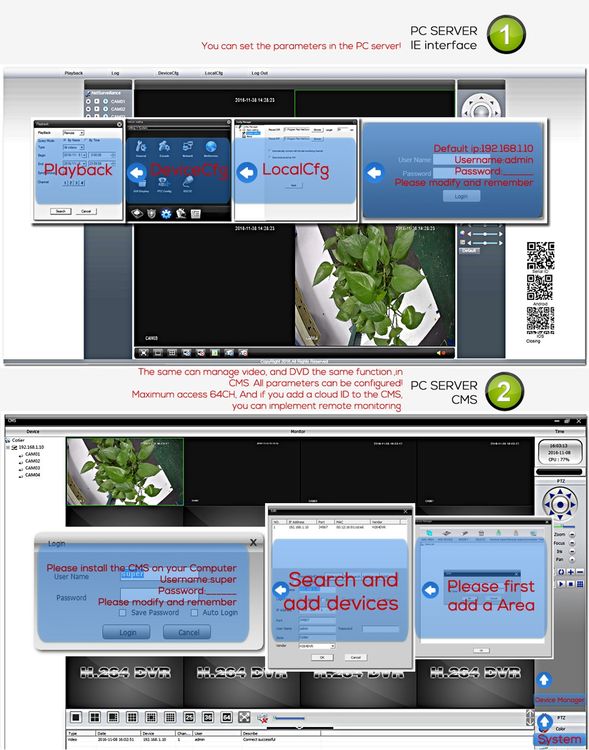

8. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
9. Browsers: Support IE, Chrome, Firefox, Safari browsers.

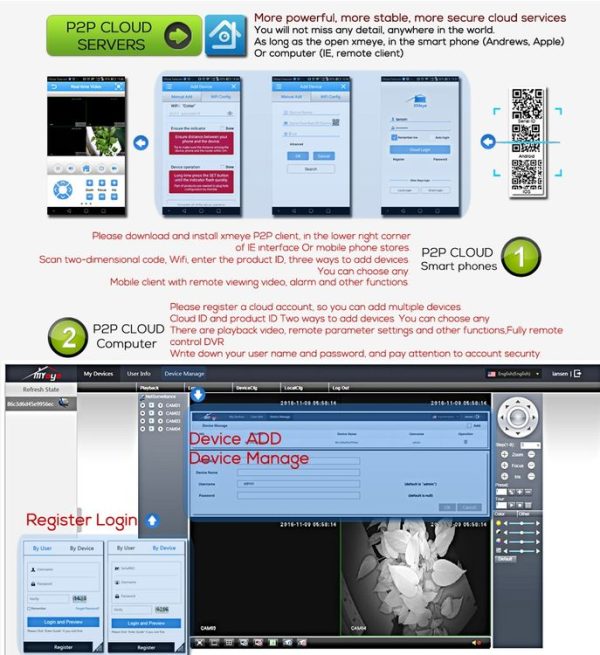

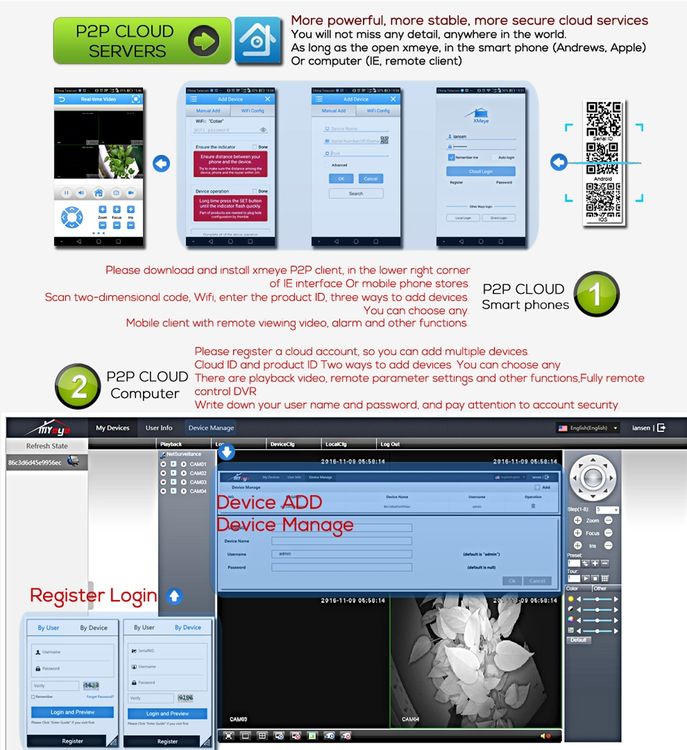

10. Remote Access: With DNS (ARSP),easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
11. Step on the Internet: one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
12. Mobile monitor: Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
13. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
14. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
15. Monitor quality: VGA, HDMI; Preview ability: 4*1080N; Encode ability: 4*1080N; Decode ability: 4*1080N.
16. Multi-mode input: Analog: 4*1080N; 4*720P; 4*960P; Hybrid: 2*720P(analog) + 2*720P(network); Network: 8*1080P, 12*960P, 8*720P, 4*1080P, 4*720P, 1*1080P.
17. Motion Detection: Each screen can be set to 192 (16*12) detection areas; Multi-level sensitivity can be set (Limited local channel).
18. Search mode: Search by time, calendar, event, channel.
19. Backup mode: Network, USB hard disk, USB burner, SATA burner.

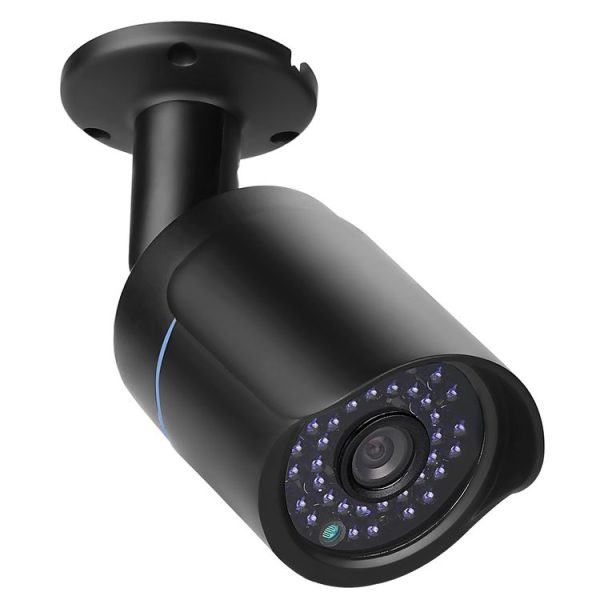

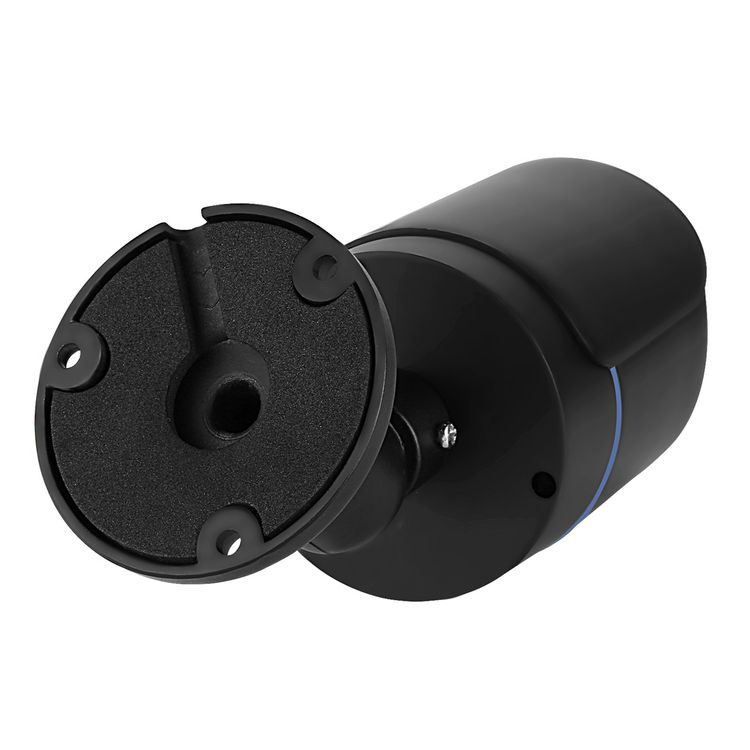

AHD Camera

1. Wide power supply design, can work in a wide voltage range.
2. Green products, low current, low power consumption, energy saving.
3. Video lightning, anti-static dry flex circuit design – effective against high-voltage outdoor lightning, power surges and static electricity.
4. Each product through rigorous aging test. International brands of materials, creating product consistency and stability.
5. 1/4 inch 1.0Mega pixel (1280*800) CMOS sensor lens.
6. High speed, long distance real-time transmission.
7. Max IR LEDs length 20m, smart IR.

Additional Information

General

Model: A4B5-Mini
Shape: Bullet
Mount Types: Wall bracket, Ceiling Bracket
Power Depletion: 3W
Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision

System / Hardware

Sensor: H62
Image Sensor: CMOS
Sensor Size: 1/4 inch Progressive Scan
Effective Pixel: 1280(H) x 800(V)
Pixels: 1.0MP

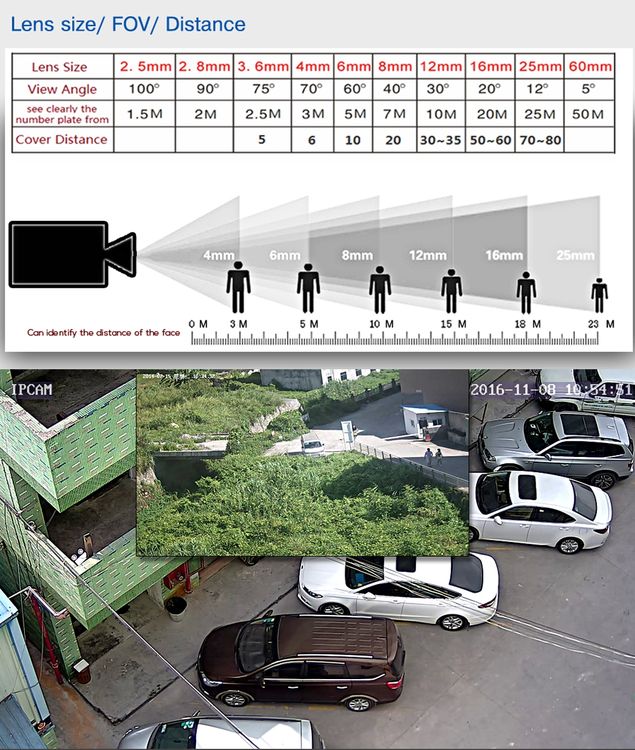

Lens: 3.6mm
Electronic Shutter: 1/50s~1/100,000s
SNR: >=50dB
Day/Night: Auto(ICR) / Color / B/W
Minimum Illumination: 0.1Lux@F1.2 (AGC ON), 0.01Lux (IR on)
White Balance: Auto
Auto Image Control: AWB

Media Format

Video Compression Format: H.264
Audio Compression Format: G711-A
Frame Rate (FPS): 30 fps NTSC, 25 fps PAL
Resolution: 720P

Night Vision

Infrared Distance: 20m
IR LED: 36 pcs 5mm IR LEDs

NVR

Dual Stream: Support
Recording: Recording mode: Manual recording, motion detection recording, time recording, alarm recording, Recording storage: HDD network
Video input: 4ch

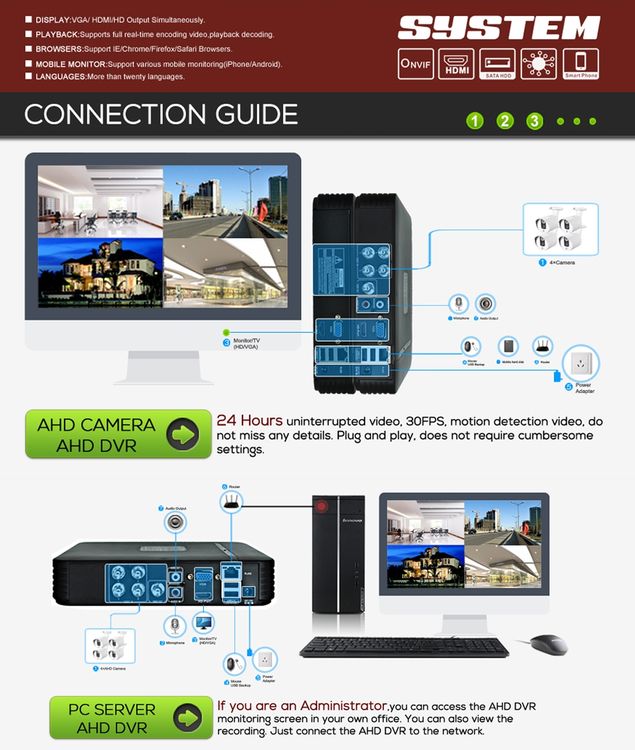

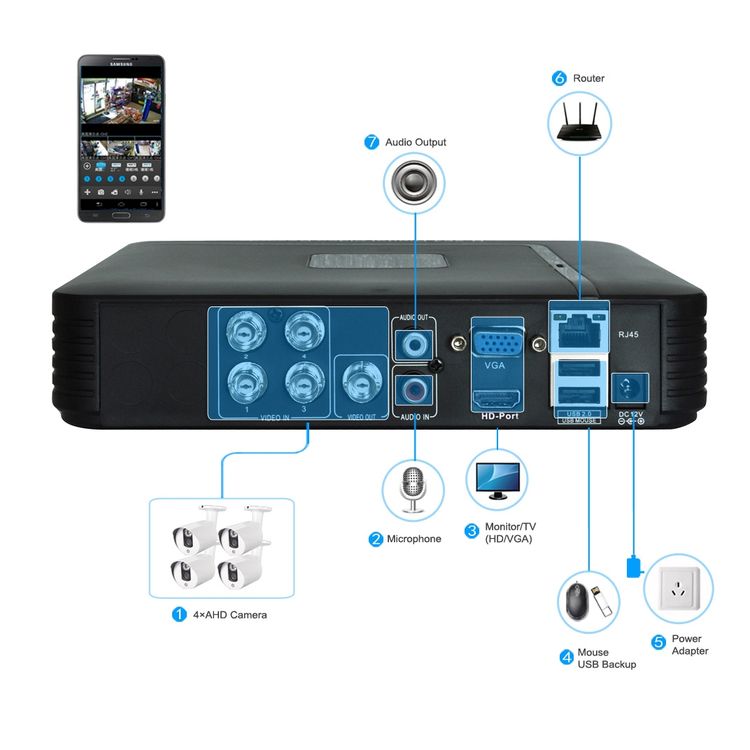

Video interface: Video output: 1ch VGA and 1ch HDMI, BNC Port
Network: 1*RJ45 10/100 Base-T
USB Port: 2 x V2.0
Wireless Port: 3G, WiFi
HDD: 2 SATA HDDs (not included), Max 6TB / PER
Operation temperature: 0 to 55 Degree Celsius
Operation humidity: 10-90 percent
Power: DC 12V 2.0A, DC 12V 4.0A
Power consumption: < 15W (without HDD)

Physical Environment

Environment: Outdoor, Indoor
Ingress Protection: IP66

Package Include

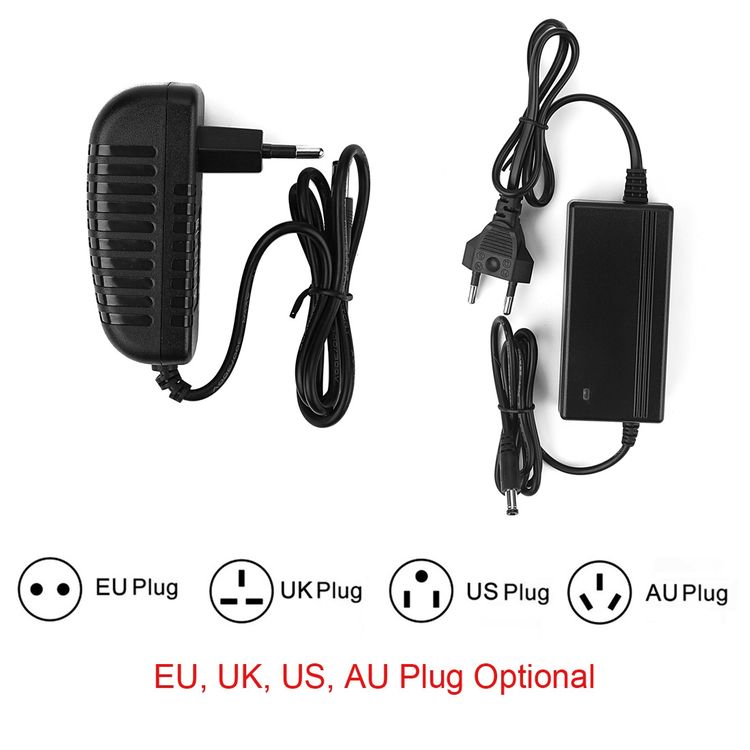

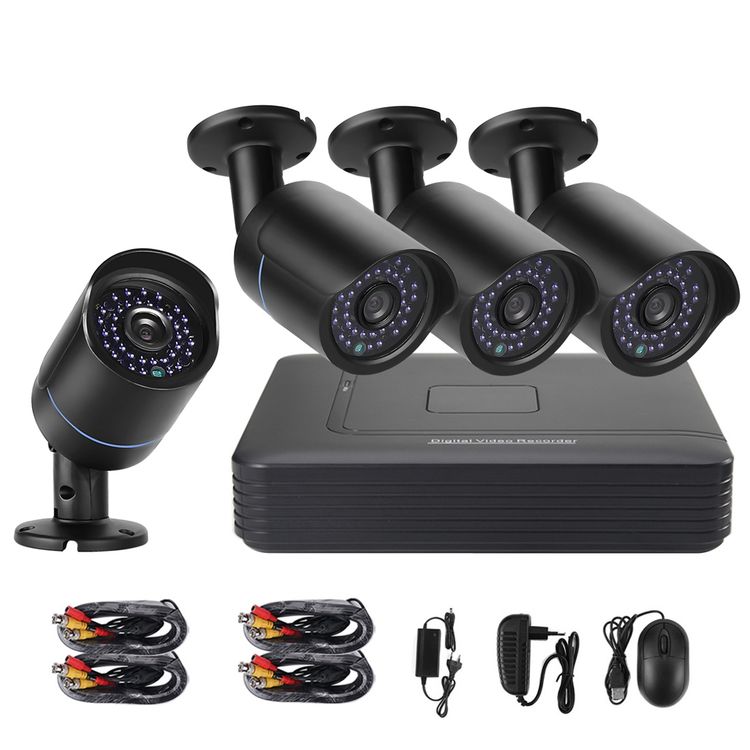

Package Contents: 4 x Cameras, 1 x Remote Controller, 4 x Connecting Cable, 1 x USB Mouse, 1 x CD, 1 x User Manual, 1 x DVR, 1 x Mouse, 2 x Power Adapter (US, UK, EU, AU Optional)

Weight & Size

Weight: 3.750kg
Size: 29cm x 23cm x 24cm

SKU: C0100011848 Category: Tag: Condition: New
