Overview

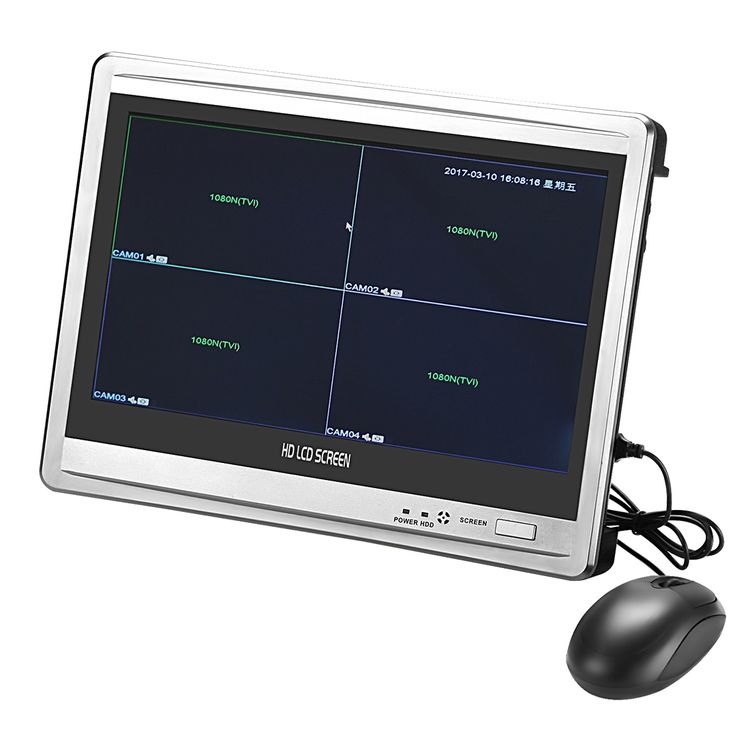

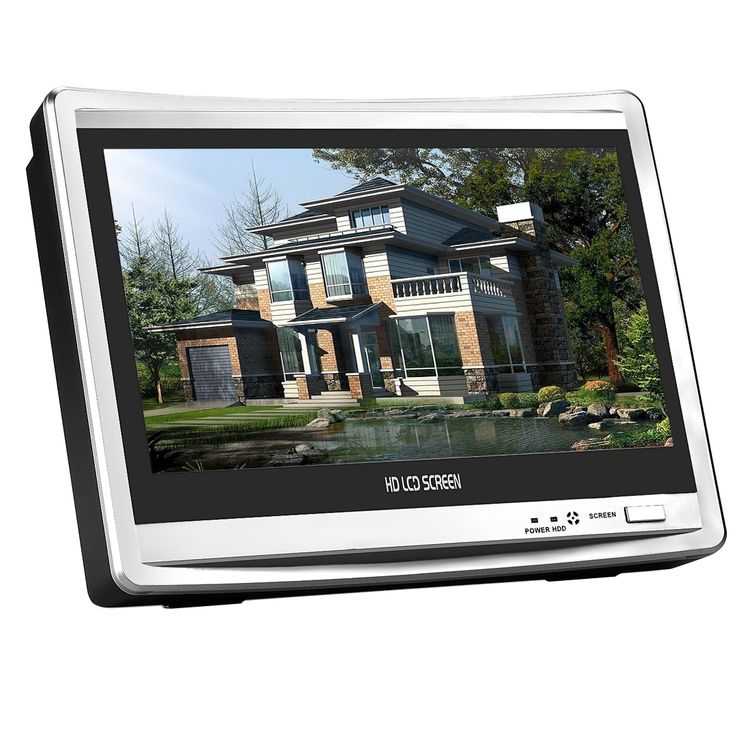

1. Support: Build in 12.5inch High difinition (resolution:1280*1024) LCD Screen.
2. Support: AHD/TVI/CVI/CVBS/IP five signals.

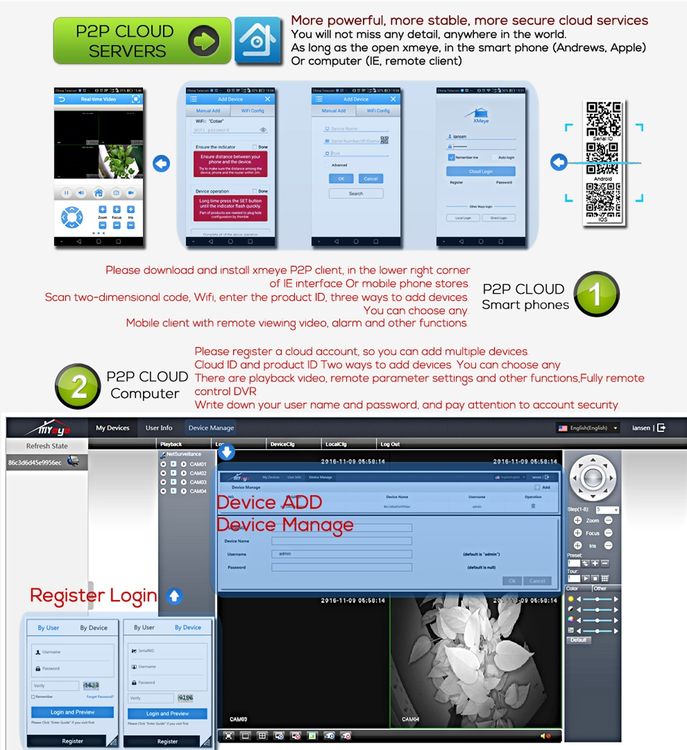

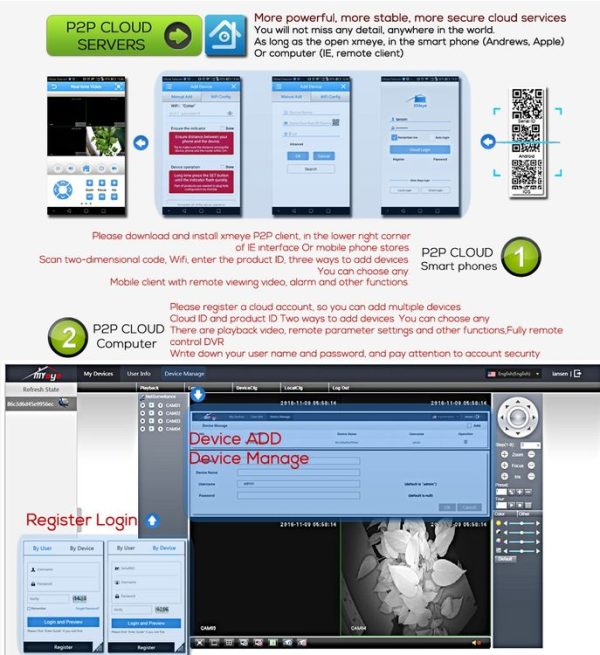

3. Step on the Internet: With cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
4. Compression algorithm ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
5. Playback quality: Support full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
6. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
7. Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
8. Display: VGA HD output simultaneously, support VGA 1080p HD output, lead the technology of HD resolution.
9. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.

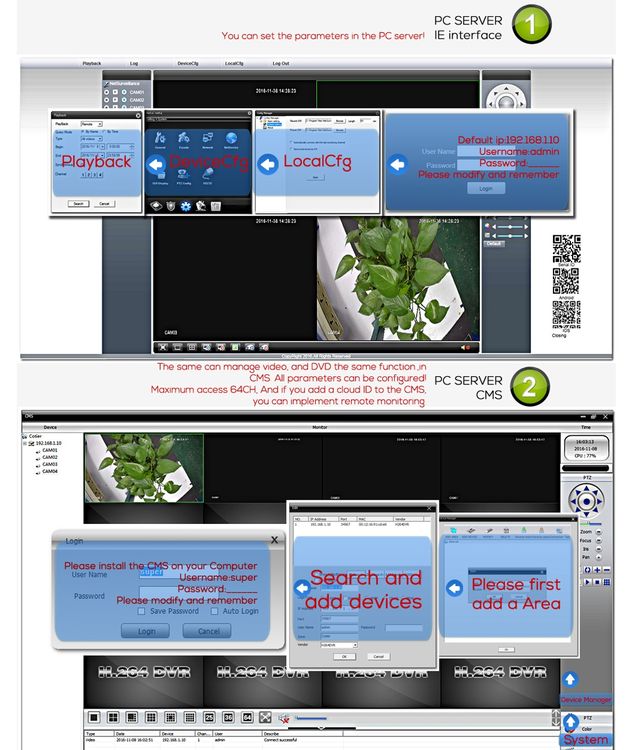

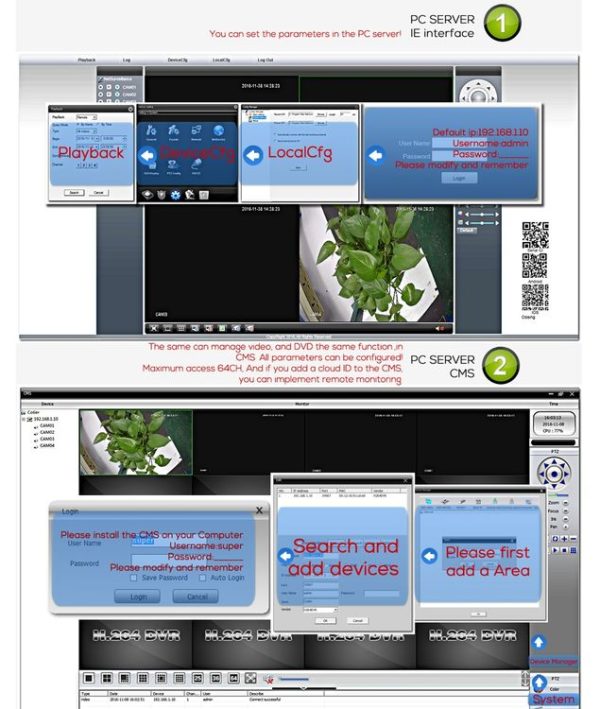

10. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP searches etc.). And perfect support (WEB, Client, SDK), easy to achieve interoperability.
11. Browsers: Support IE, Chrome, Firefox, Safari browsers.
12. Remote Access: With DNS (ARSP), easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
13. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
14. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
15. Monitor quality: HDMI; Encode ability: 4*1080N/4*AHD-M; Decode ability: 4*1080N / 1*AHD-M
16. Multi-mode input: Analog: 4*1080N; 4*AHD-M; 4*AHD-L; Hybrid: 2*AHD-M(analog) + 2*720P(network); Network only: 4*720P, 8*1080P, 4*1080P, 1*1080P, 8*720P, 12*960P.

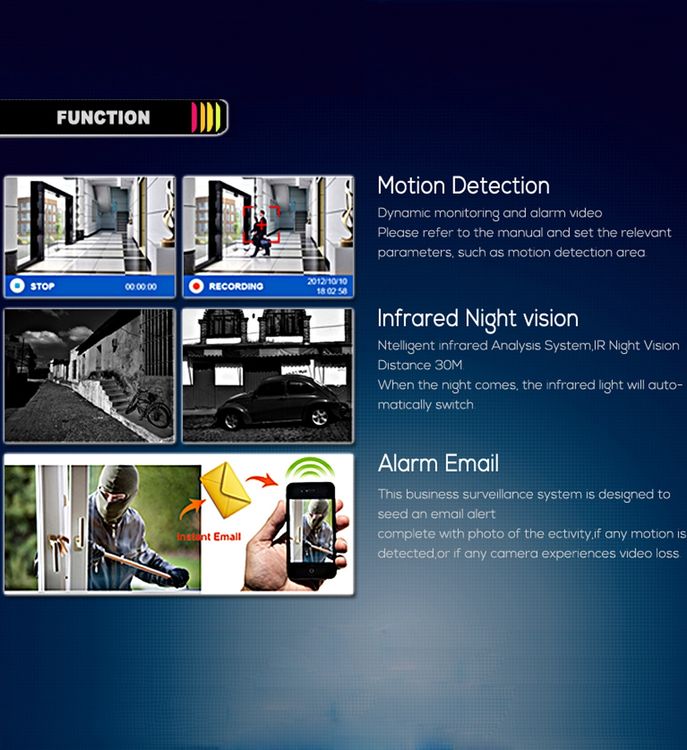

17. Motion Detection: Each screen can be set to 192 (16*12) detection areas; Multi-level sensitivity can be set (Limited local channel).
18. Search mode: Search by time, calendar, event, channel.
19. Backup mode: Network, USB hard disk, USB burner, SATA burner.
Additional Information
Video Compression Format: H.264
Audio Compression Format: G711-A

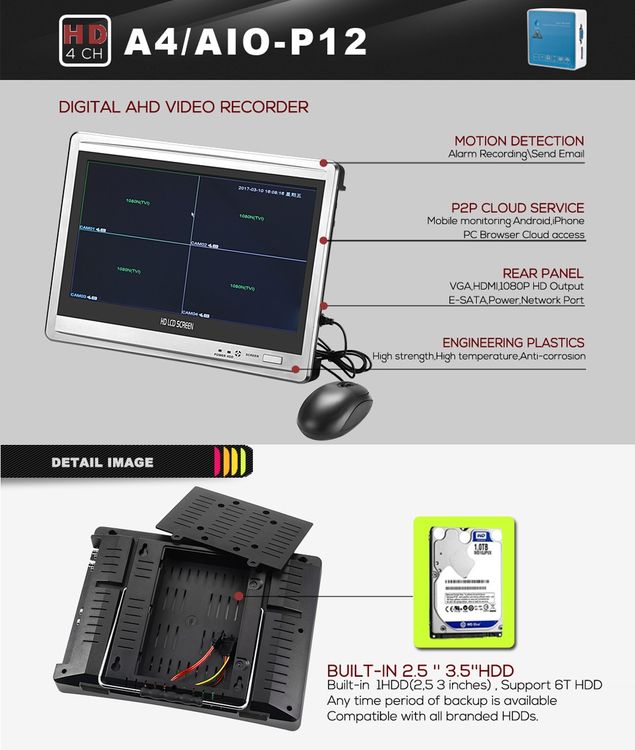

NVR Model: A4AIO-P12
Recording: Recording mode: Manual recording, motion detection recording, time recording, alarm recording, Recording storage: HDD network
Video input: 4ch

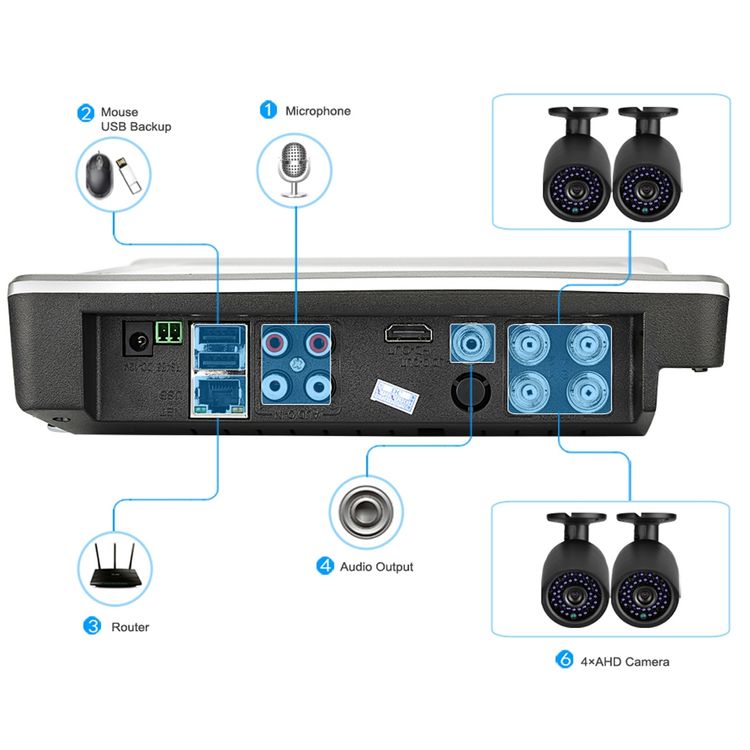

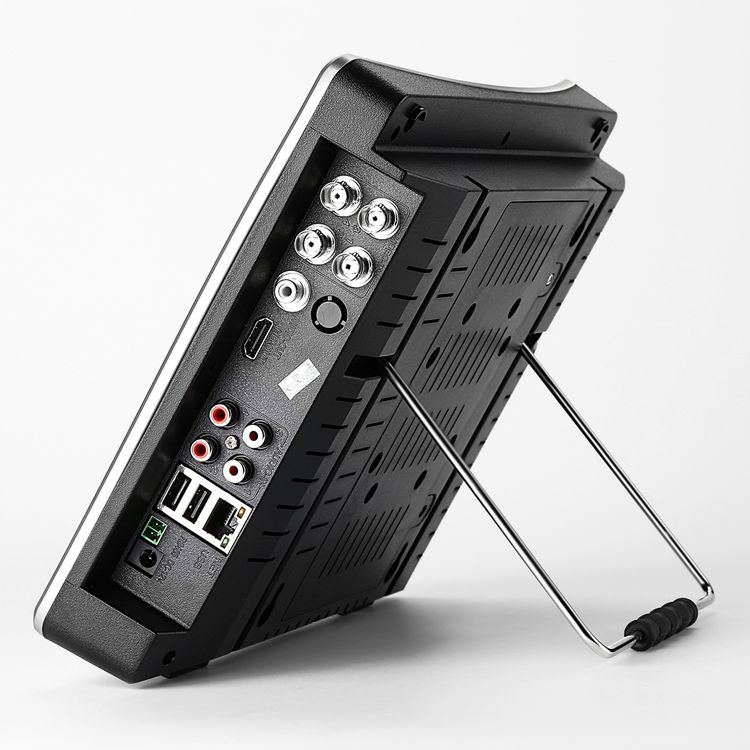

Video interface: Video output: 1ch VGA and 1ch HDMI, BNC Port
Audio Interface: 4 x RCA input, 1 x RCA output
HDMI Output Resolution: 1920×1080
Network: RJ45 10M/100M self-adaption
USB Port: 3* USB 2.0 ports
Wireless Port: 3G, WiFi

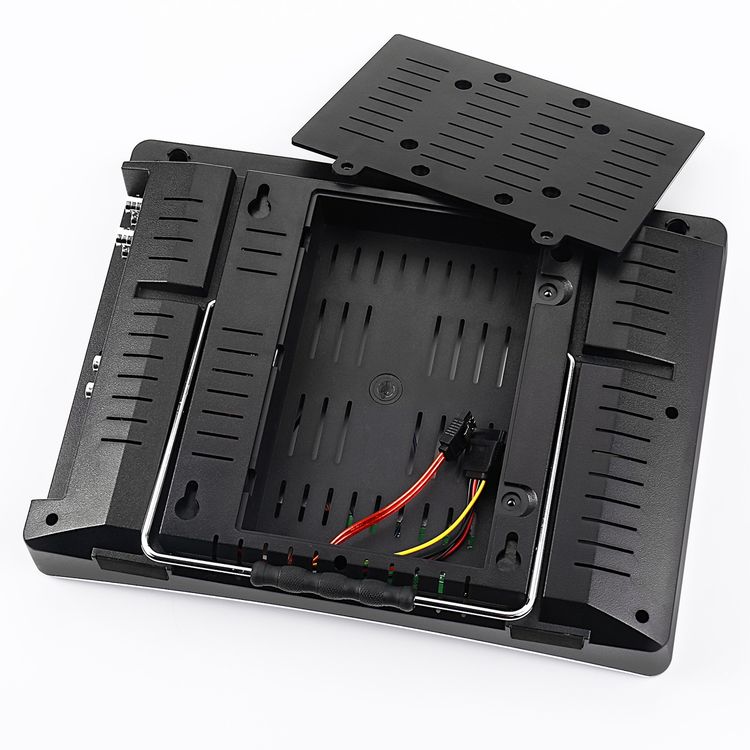

HDD: SATA HDD (not included), Max 4TB
Operation temperature: 0 to 55 Degree Celsius
Operation humidity: 10-90 percent
Power: DC 12V 3.0A
Power consumption: < 15W (without HDD)
Size: 30.5*23*6cm
Weight: 1.15kg

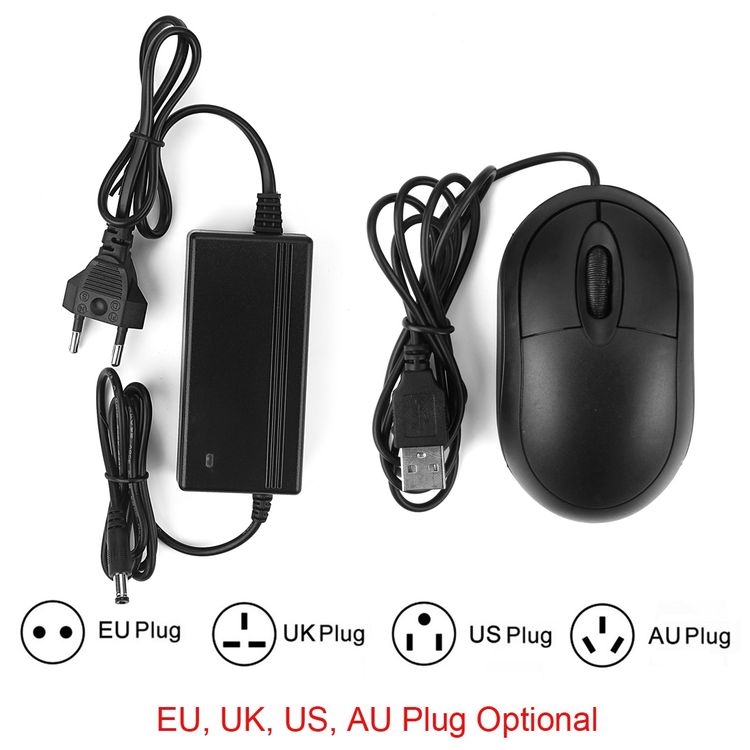

Package Contents: 1 x Power Adapter (US, UK, EU, AU Optional), 1 x USB Mouse, 1 x CD, 1 x User Manual, 1 x DVR, 1 x Screws Set
Weight: 1.910kg
Size: 35cm x 31cm x 9cm
