Overview
1. H.264, 8ch 960P/720P/960H / D1 wireless network hard disk DVR.
2. Built-in high performance stability wireless Wi-Fi router module, support 802.11b/g/n protocol, 150Mbps.
3. Automatically access the Wi-Fi network camera through the network cable.
4. Video preview / video / playback / backup.
5. Ease of use (wireless easy pairing, setup wizard, common function menu, easy to view network).
6. Support N1, IPC access protocol.
7. Supported network service functions: P2P, DHCP, DDNS, PPPoE, E-Mail, FTP, etc.
8. Support a variety of alarm trigger (video loss / motion detection, etc.) and alarm output (sound / E-Mail / FTP, etc.).
9. Support Android/Apple mobile phone (or tablet) remote (LAN and Internet) access and control.
10. Support PC (client or browser) remote (local area network and Internet) access and control.
11. Support IPC configuration (encoding control, image adjustment, OSD display, etc.).
12. Support video motion detection with IPC.
13. Support video cover function with IPC.
14. Support user rights management.
1. Professional industrial processor.
2. Embedded linux operating system.
3. Network video input 8 channels 960P, 20Mbps network video access bandwidth.
4. HDMI output: 1 channel, resolution: 1024×768, 1366×768, 1440×900, 1920x1080p.
5. VGA output: 1 channel, resolution: 1024×768, 1366×768, 1440×900, 1920x1080p
1. 1/4 inch Progressive scan sensor, 1280*720 resolution.
2. Streaming: Two streaming at the Same Time:
– H.264 1280×720@15fps or below
– H.264 640×360@15fps or below
Additional Information
Shape: Bullet
Power Depletion: <6W(Camera)
Power Supply: DC 12V 1.0A
DNR: Auto
Network Interface: RJ45 10/100MB Ethernet interface
Wireless: WiFi 802.11 b/g/n
Sensor Size: 1/4 inch Progressive Scan
Pixels: 1.0MP
Lens: 3.6mm
SNR: > 39.1dB

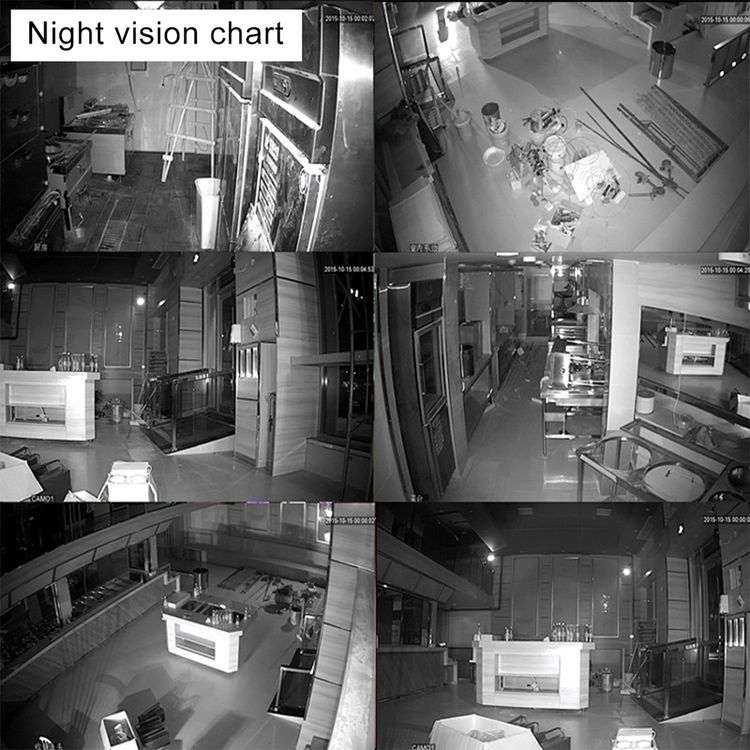

Day/Night: Auto / Color / BW
Minimum Illumination: B/W: 0.01Lux, Color: 0. 1Lux
White Balance: Auto
Main Stream: 1280 x 720
Sub Stream: 640 x 360
IR LED: 1 infrared LED
System: Operating system: Embedded LINUX OS
Recording: Recording mode: Manual recording, motion detection recording, time recording, alarm recording, Playback mode: Instant playback, regular playback, event playback, Backup mode: Regular backup
NVR Interface: 1 x VGA, 1 x HDMI, 1 x RJ45, 2 x USB 2.0
Video input: D1, 960H, 720P, 960P, 1080P, 8ch
Video interface: Video output: 1ch VGA and 1ch HDMI, Network video Input: 8ch
HDMI Output Resolution: 1024×768, 1366×768, 1440×900, 1920×1080
Network: 1 x RJ45 / 10/100MB
USB Port: 2 x USB 2.0
HDD: SATA HDD (not included), Max 4TB
Power: DC 12V 3.0A
Power consumption: <= 5W
Size: 205*70*55mm(camera); 257*210*45mm (NVR)
Weight: 500g (Camera); 1kg (NVR)
Package Contents: 8 x Cameras, 1 x Mounting Accessories, 1 x USB Mouse, 1 x NVR, 1 x User Manual, 1 x Network Cable, 9 x Power Adapters (US, UK, EU, AU Optional))
Weight: 7.700kg
Size: 52cm x 36cm x 26cm
