Overview
1) Video resolution: 1920 x 1080, 1280 x 720 (default), 848×480
2) Language settings: English (default) / Russian / Japanese / Simplified Chinese / Traditional Chinese / French / Spanish / Italian / Portuguese / Turkish / Greek / German
3) Formatting: Memory / TF card (choose one formatting)
4) Frame rate: 15FPS / 30FPS (default)
5) Light source frequency: 50Hz (default) / 60Hz

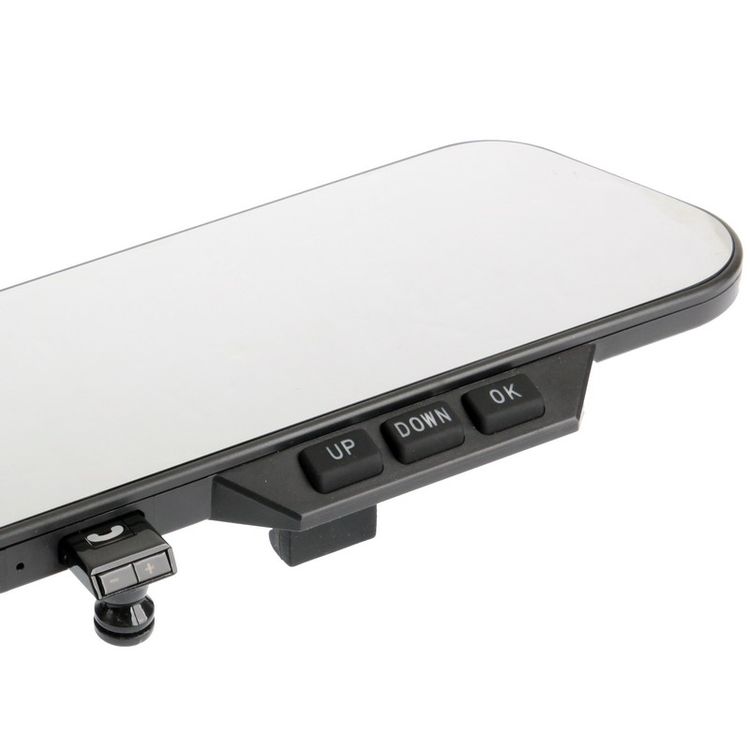

6) Date / time: at standby mode, press twice menu keys to enter the setup interface, press the down key to setup, press confirm key to save.
7) Recording time: Off / 2 minutes (default) / 5 minutes / 15 minutes. When off is selected, TF card stop recording, and will not loop recording
8) Date label: OFF / ON (default). When you select off, videos do not have time to show.
9) Default settings: cancel / confirm OK. When select OK, DVR machine will restore to factory settings.
10) Motion detection: Off (default) / On
11) Voice recording: Off / On (default)
12) Version: Displays the system version
13) Night vision: When the DVR machine starts, long press the switch key to night vision or day vision.

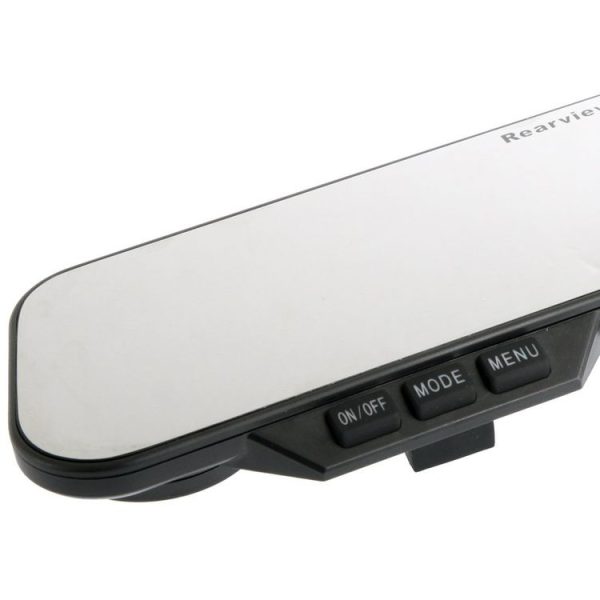

14) Mode key function: When the DVR machine starts, long press mode key, switch the LED and button lights off.
Technical parameters:

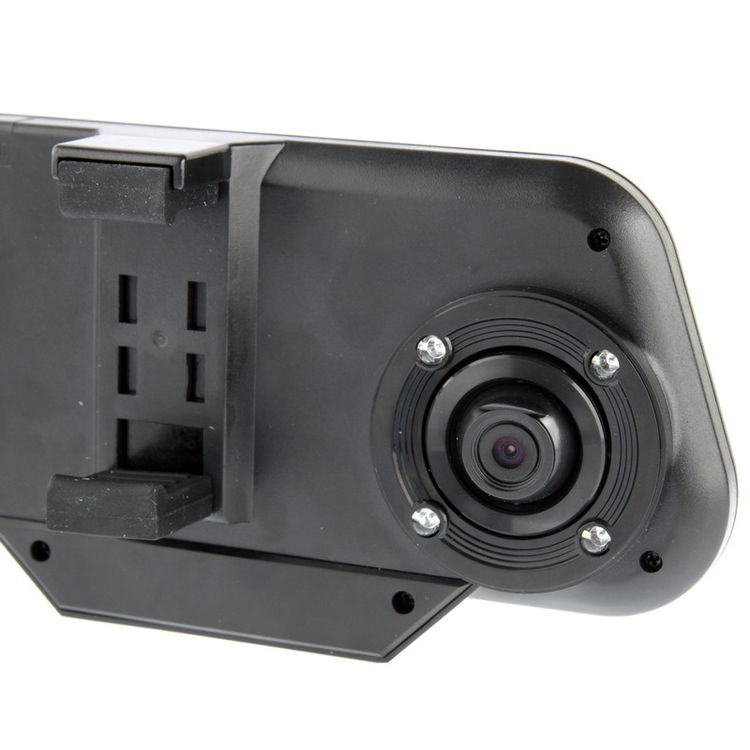

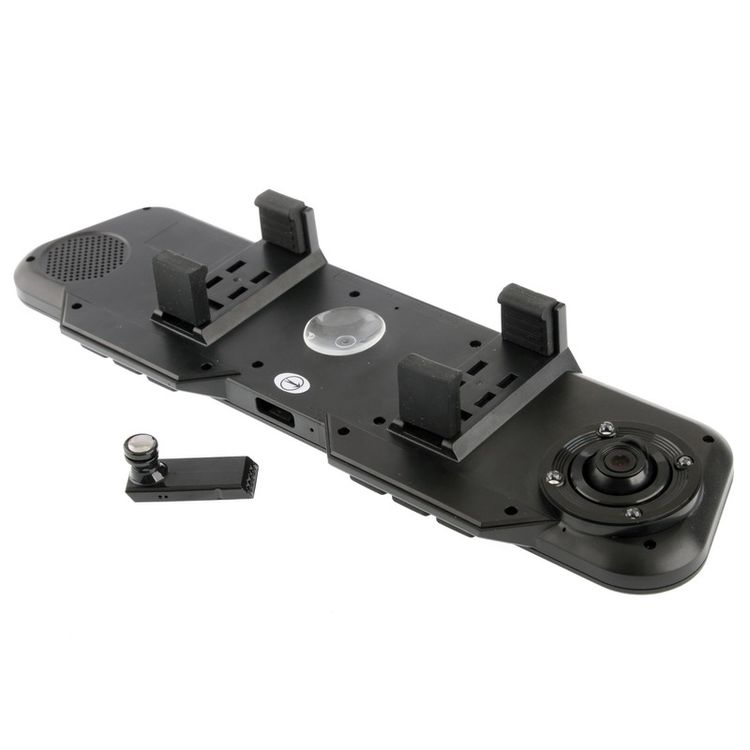

– Camera sensor: OV9712 high-resolution sensors
– Recording resolution: 1920 x 1080, 1280 x 720 (default), 848×480
– H.264 video codec
– Loop recording: Support
– Motion detect: Support
– Net camera: Support
– Synchronous vioce record: Support
– Collision sensor: 3d triaxial collision detection
– Night vision: Super LED x4
– Battery: high-quality built-in rechargeable Lithium battery
– TF type: support TF 32GB (MAX)
– Storage temperature: -20 to 60 degree Celsius
– Operation temperature: -10 to 60 degree Celsius
– Operation humidity: 15-65 percent RH

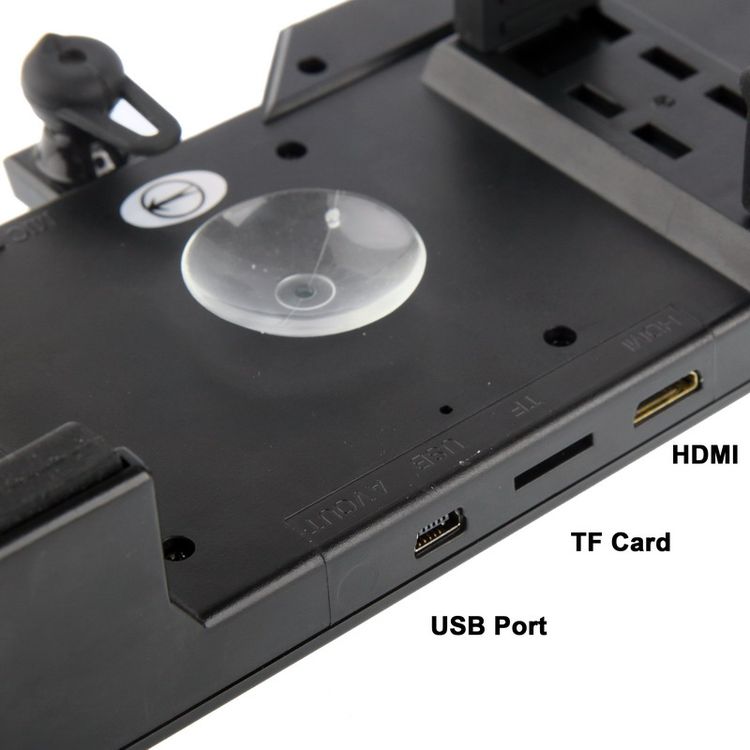

– USB interface: USB 2.0
– Video Output: Support HDMI output to TV playback

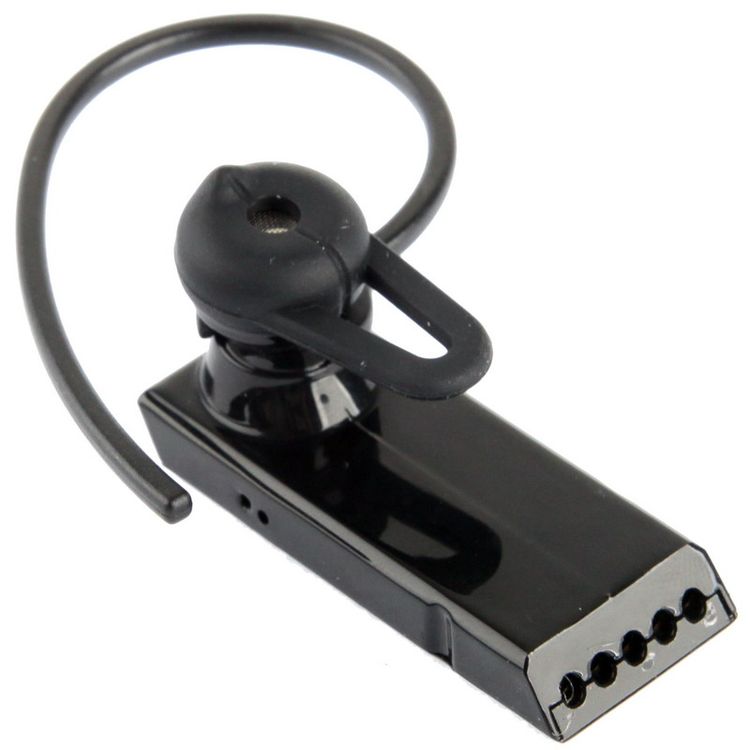

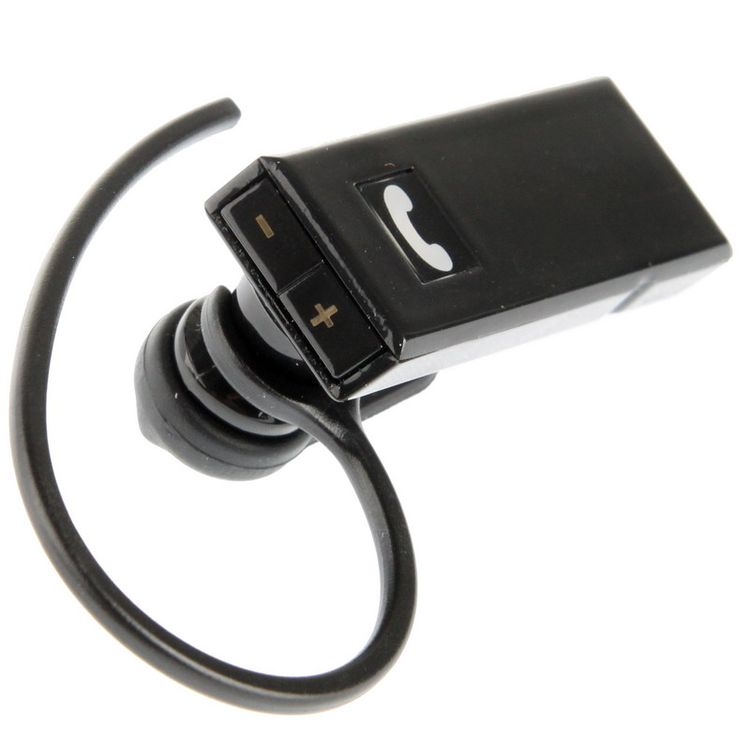

Bluetooth function:
– A Bluetooth feature on and off:
— Back connection mode: Long press the Bluetooth headset button for 3 seconds (This mode is only available on the same phone to connect a second pair)
— Search mode: Long press the Bluetooth headset button 6 seconds (This mode only applies to first connect to a paired phone)
— Bluetooth pairing is successful and working interface shows blue icons; Bluetooth wireless connection interface displays a gray icon.
Additional Information
Weight: 1.117kg
Size: 35cm x 12cm x 7cm
