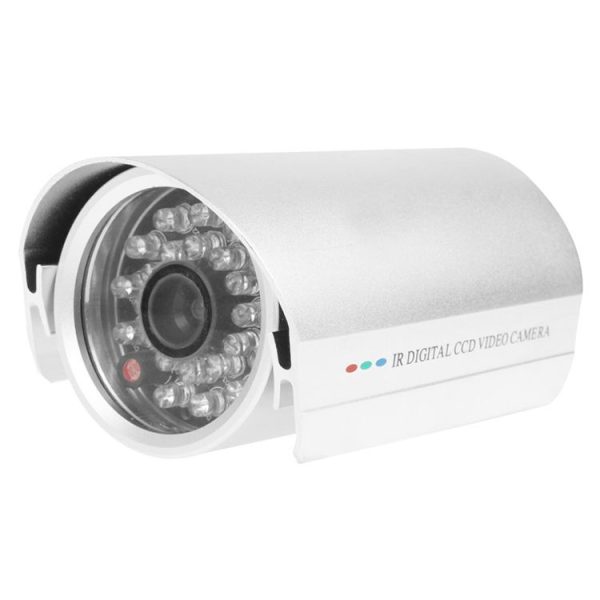

Overview
Features:
1. Adapts high performance CCD or CMOS image sensor
2. High resolution and clear image
3. Low illumination, 0-lux with IR day and night, full day surveillance
4. Supports backlight compensation supports auto white, balance
5. High SNR, image clean, slightly supports auto digital shutter
6. Supports auto digital gain
Specifications:
1. Sensor: 1/3 inch color CCD
2. Image device: SN CCD
3. TV system: PAL/NTSC
4. Scanning system: 2:1 interlace
5. Synchronize system: internal
6. Illumination: 0 lux (IR on)
7. S/N ratio: Above or equal 48dB
8. Video output: 1.0Vp-p, 75II composite, BNC x 1
9. Gamma ratio: Above or equal 0.45
10. Focal length: 6mm fixed lens
11. Viewing angle: Vertical: 92 degree / 53 degree
12. Zoom ratio: Fixed
13. Control mode: Fixed
14. Day/night: Auto
15. Backlight compensation: auto
16. White balance: Fixed
17. Gamma characteristic: Above or equal 0.15
18. Electronic shutter: PAL: 1/50 to 1/100,000 seconds, NTSC: 1/60 to 1/100,000 seconds

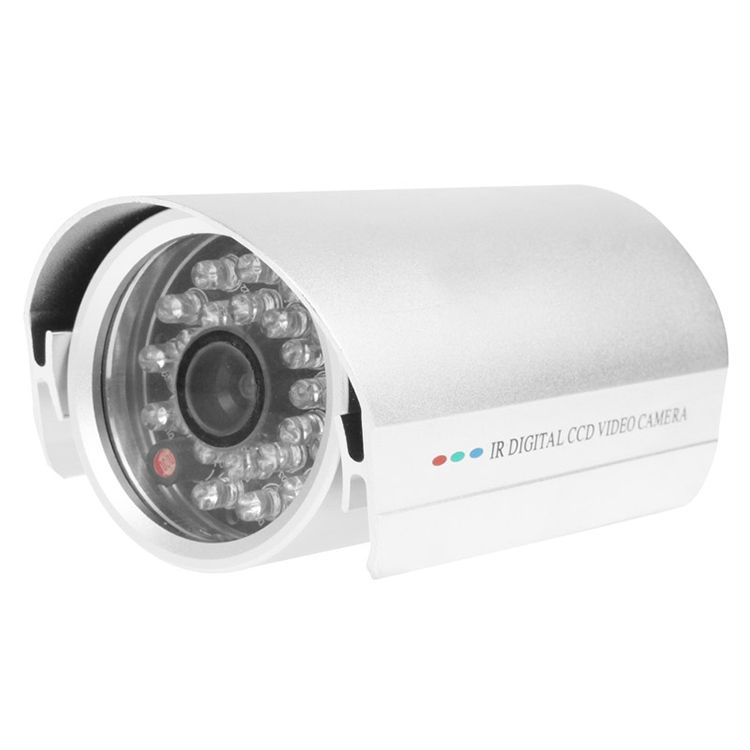

19. Infrared LED: Diameter 5mm, 36pcs IR LED
20. IR distance: 25 meters
21. Infrared spectrum: 850nm
22. Operating temperature: -10 to +50 degree C
23. Storage temperature: -40 to +60 degree C
24. Input voltage/current: DC 12V/500mA

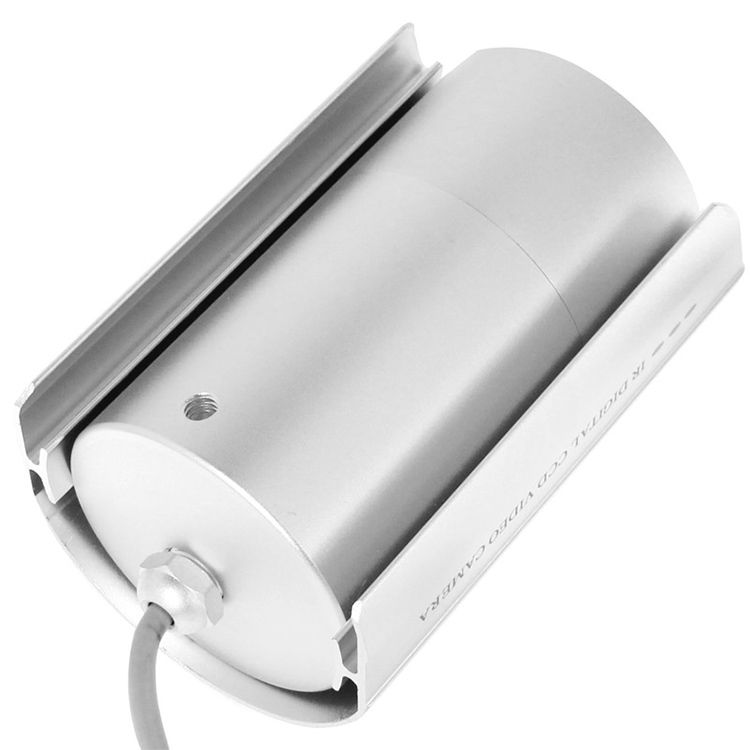

25. Case Material: Aluminum Alloy
26. Camera Dimensions (without bracket): 125(L) x 75(W) x 65(H) mm
27. Net Weight: 360g
Additional Information
Model: VW-8426
Shape: Bullet
Power Supply: DC 12V
Working Current: 500mAh
Performance: Night Vision
Signal System: PAL, NTSC
Image Sensor: SONY CCD
Sensor Size: 1/3 inch Progressive Scan
Lens: Fixed lens, 6.0mm
Electronic Shutter: PAL: 1/50 to 1/100,000 seconds, NTSC: 1/60 to 1/100,000 seconds
SNR: >=48dB
Day/Night: Yes
Minimum Illumination: 0LUX
White Balance: Auto
Backlight Balance: Auto
Horizontal Resolution: 420TVL
Infrared Distance: 25m
Configuration: 36 infrared LEDs
IR LED: Diameter 5mm
Environment: Outdoor, Indoor
Size: 125(L) x 75(W) x 65(H) mm
Weight: 360g

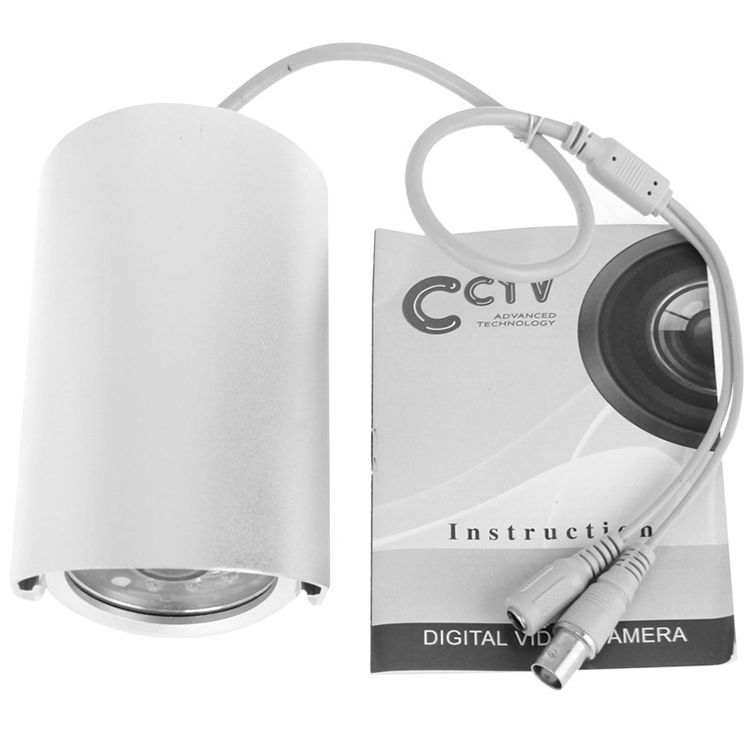

Package Contents: 1 x Camera, 1 x User Manual
Weight: 0.355kg
Size: 19cm x 10cm x 10cm
